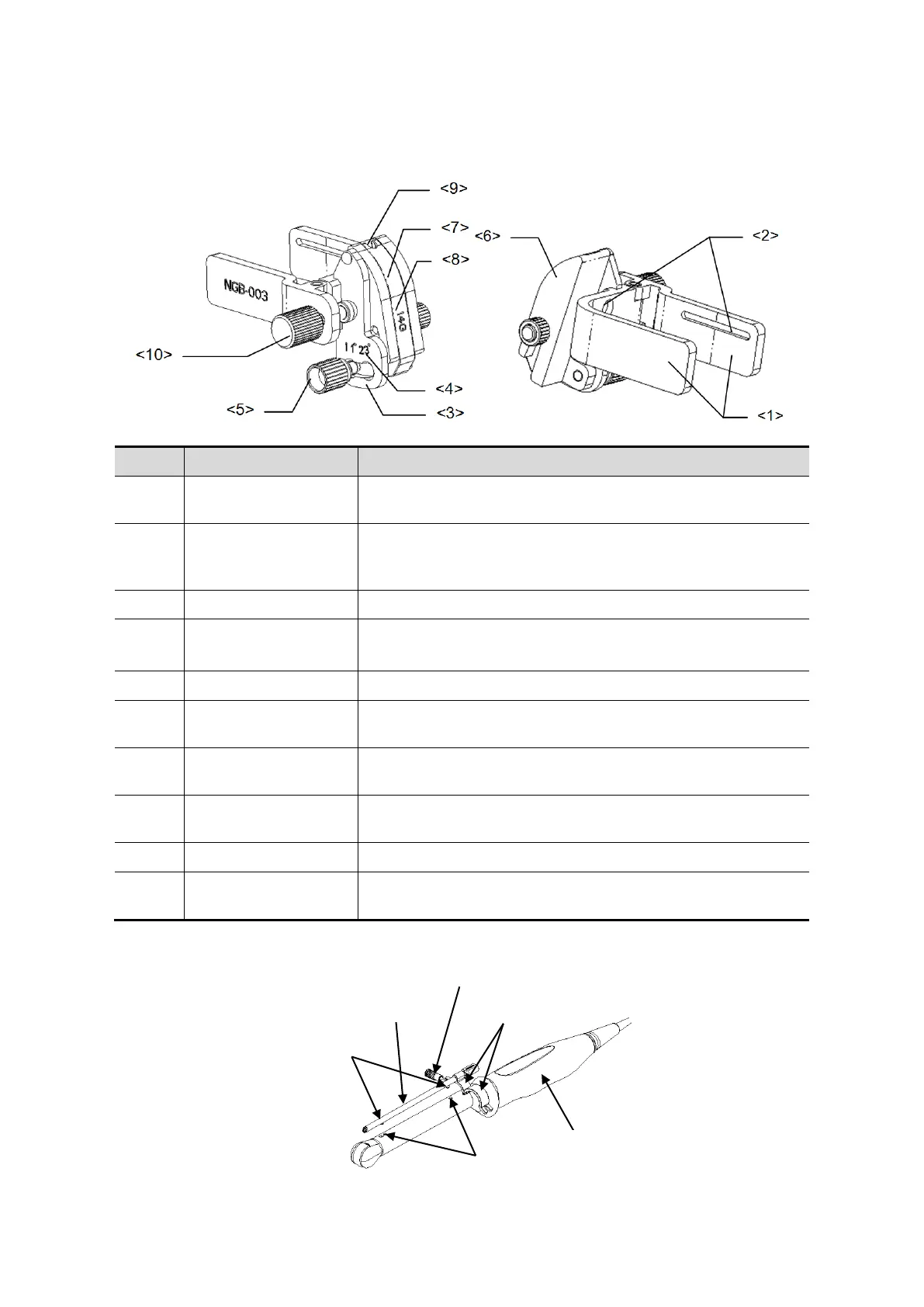

◼ NGB-003 (Metal/needle detachable)
No.
Name
Description
<1>
Clamp of needle-
guided bracket
Used for installing the needle-guided bracket on the
transducer
<2>
Groove of the
needle-guided
bracket
Matches with the tab of the transducer
<3>
Angle adjusting base
There are 3 types of angles available to be adjusted
<4>
Angle shift sign(11°,
23°)
Matched with the biopsy angle(11°, 23°)
<5>
Angle pinch nut
Used for fixing the angle lock at a chosen angle
<6>
Angle block
Used for determining the angle of the biopsy; different
specifications of blocks can be used
<7>
Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy needles
<8>
Specification of
guiding block(14G)
Matched with the corresponding biopsy needle(14G)
<9>
Needle guide hole
Used for installing the biopsy needle
<10>
Pinch nut of needle-
guided bracket
Used for locking the needle-guided bracket and the
transducer
◼ NGB-004
Locating groove
Transducer
Needle guide
Locating bulge
Locking nut
Retaining clamp
