Mindray DP-20 - Needle-Guided Bracket Inspection and Installation

Probes and Biopsy 12-21
⚫ Plastic
No

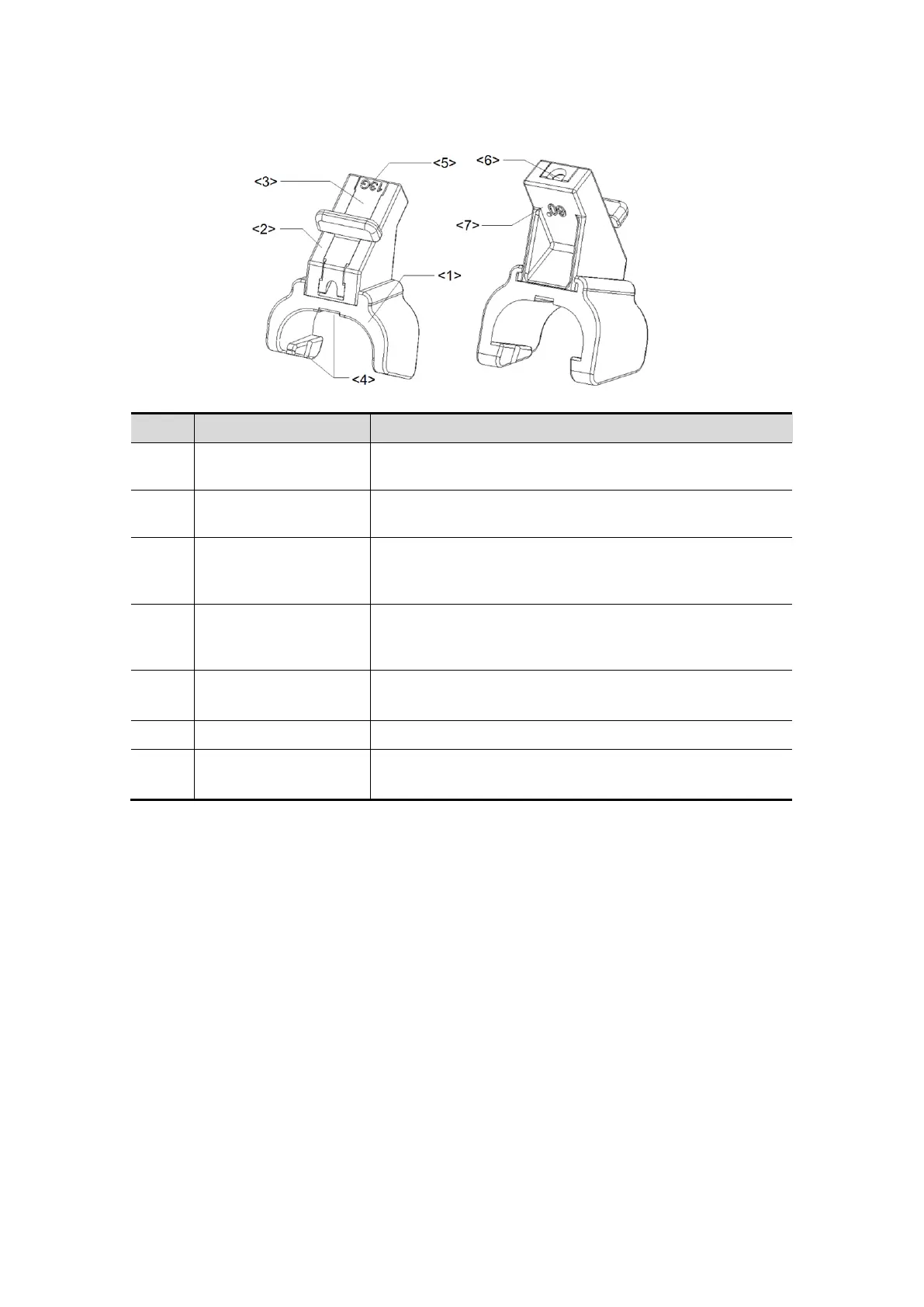

Name
Description
<1>
Support of needle-
guided bracket
Used for installing the needle-guided bracket on the
transducer
<2>
Angle block
Used for determining the angle of the biopsy; there are
three specifications of blocks of angle
<3>
Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy
needles
<4>
Groove and tab of the
needle-guided
bracket
Respectively matched with the tab and groove of the
transducer
<5>
Specification of
guiding block（13G）
Matched with the corresponding biopsy needle（13G）
<6>
Needle guide hole
Used for installing the biopsy needle
<7>
Specification of angle
block（60°）
Corresponding to the size of the biopsy angle（60°）
NOTE:Needle-guided brackets listed above are intended to be used repeatedly.
12.2.3 Needle-guided Bracket Inspection and
Installation
Inspection of the Needle-guided Bracket
Be sure to perform inspections before and after use of the needle-guided bracket. If an
abnormality is found on the needle-guided bracket, immediately stop using it and contact
MINDRAY Customer Service Department or sales representative.
1. Sterilize the needle-guided bracket before and after use.
2. Confirm that the needle-guided bracket is free of damage, deformation, stripping,
malfunction, loose or missing parts.
3. Confirm that the needle-guided bracket is securely mounted in the correct position.
