Mindray DP-20 - I;O Panel

System Overview 2-7
No.
Name
Function
4
LED monitor
Displays the image and parameters.
5
Control Panel
Refers to 2.6.3 Control Panel.
6
Power Supply Panel
Electric interface panel, refers to 2.6.2 Power Supply Panel.
7
Winding rack
Winds the power cable.
8
I/O Panel
Refers to 2.6.1I/O Panel.
9
Gel holder
Places the ultrasound gel temporarily.
10
Probe ports
Used to connect the probe.
11
USB ports
Connects USB devices.

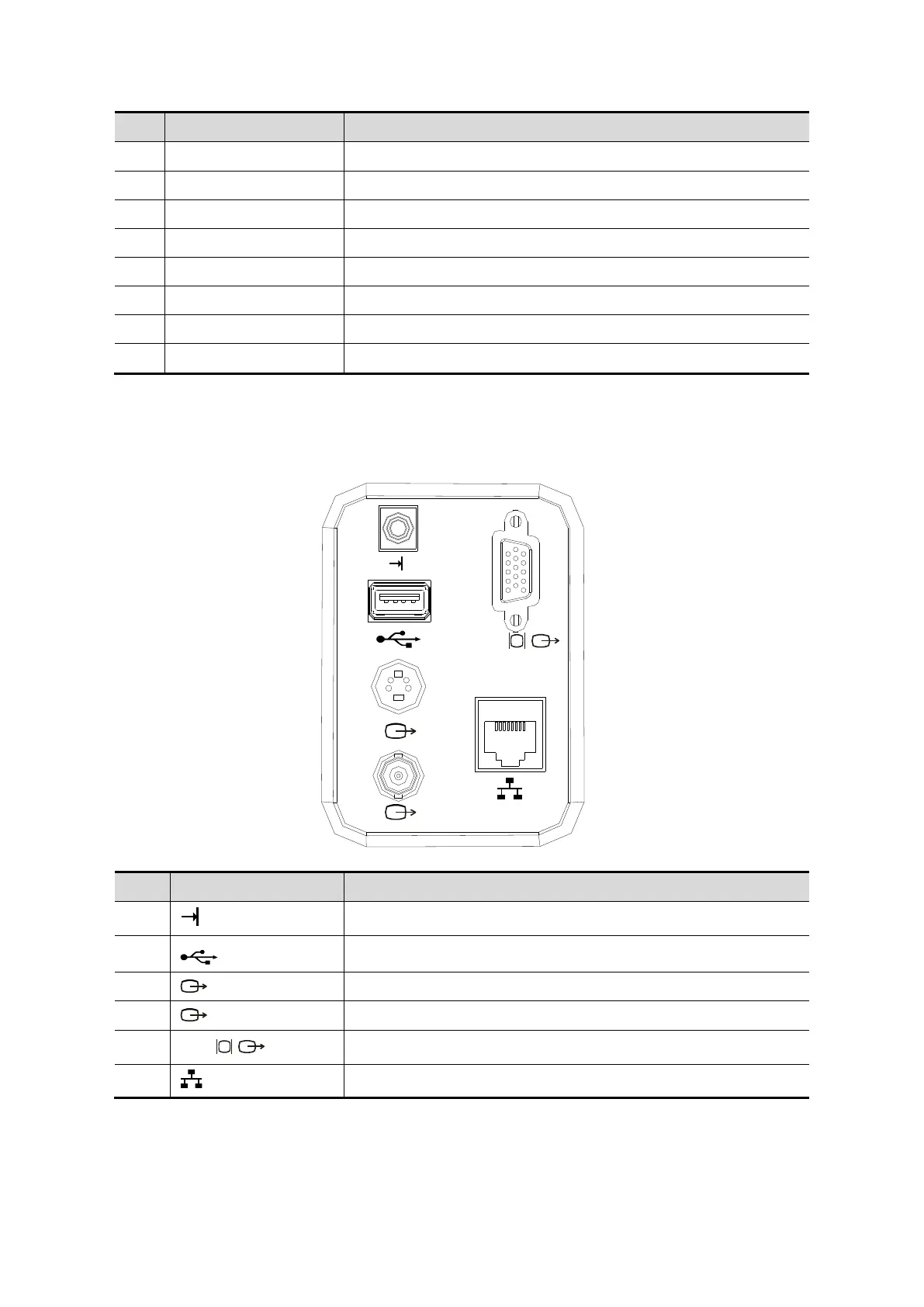

2.6.1 I/O Panel
VGA
<1>
<2>
<3>
<4>
<5>
<6>
No.
Symbol
Function
1
Remote control port
2
USB ports
3
Separate video output, connecting video printer or LCD
4
Composite video output
5
VGA
VGA signal output
6
Network port
