Mindray uMEC10 User Manual

16-4
3. Connect the other end of the sampling line to the patient.
 For intubated patients requiring an airway adapter, install the airway adapter
between the patient circuit and the ventilator Y-piece.
 For non-intubated patients, place the nasal cannula onto the patient.
4. Connect the gas outlet to the scavenging system using an exhaust tube.
After the CO
2
module is connected to the SMR, it enters measure mode by default and the
monitor displays CO2 Starting. CO
2
can be measured after the start-up is complete.
WARNING
z Connect the gas outlet to the scavenging system when measuring CO
2
.

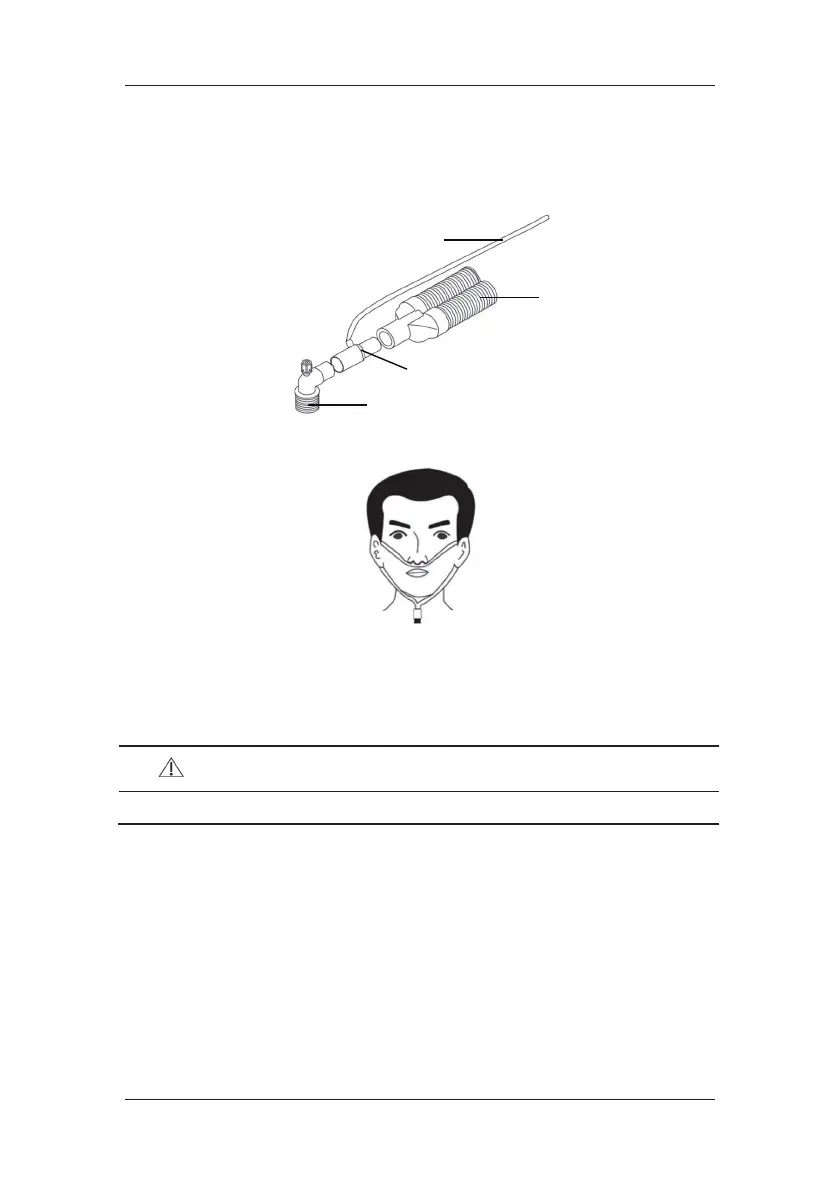

Connect to the patient
Connect to the ventilator
Sampling line
Airway adapter

Mindray uMEC10 Specifications

General

Resolution	800 x 600
ECG	3/5-lead ECG
EtCO2	Optional
Battery	Rechargeable lithium-ion
Battery Life	4 hours
Dimensions	110 mm
Alarm	Audible and visual alarms
Power Supply	AC 100-240V, 50/60Hz
Agent	No
O2	No
