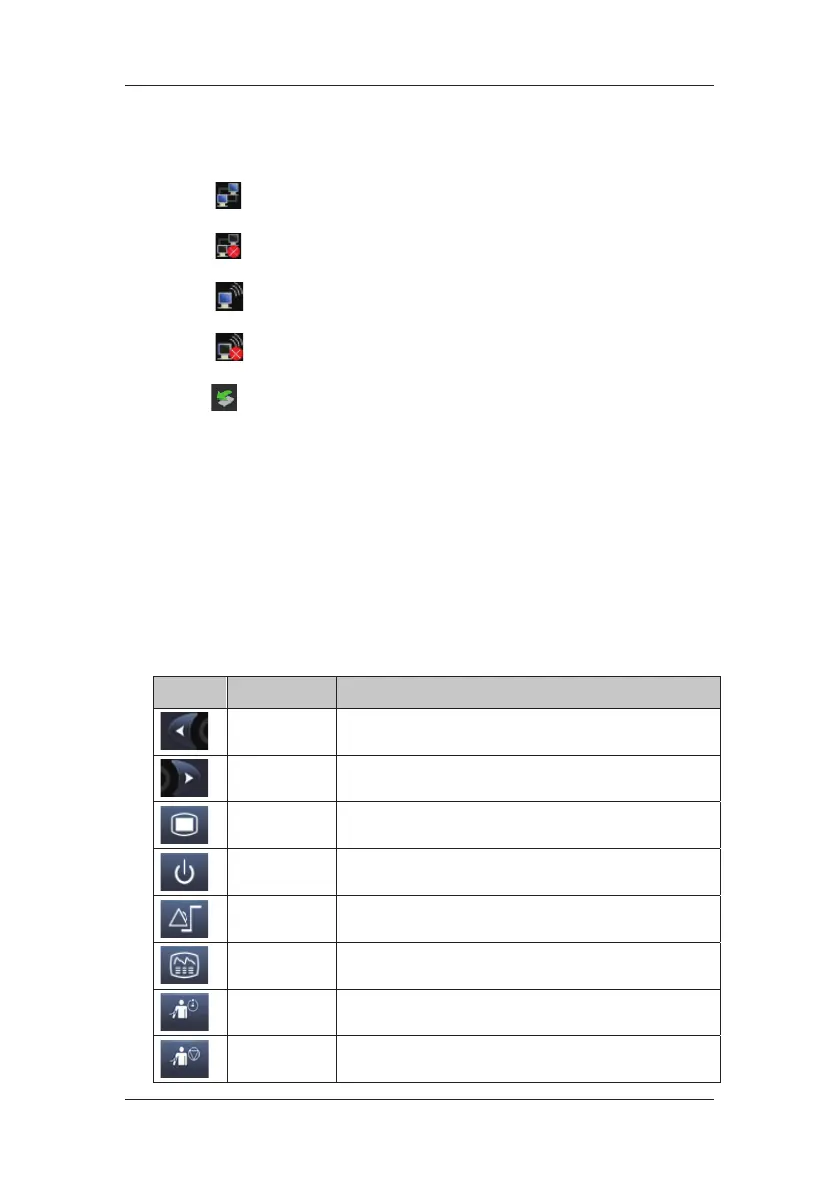

This area shows the current configuration name, prompt messages, network status icons,
battery status icons, etc. For details about battery status symbols, refer to the 23
Batteries.
indicates patient monitor is connected to a wired network successfully.
indicates the patient monitor has failed to connect a wired network.
indicates the wireless function is working.
indicates the wireless function is not working.
indicates a USB disk is inserted.
(9) QuickKeys Area
This area contains QuickKeys that give you fast access to functions.
2.6 QuickKeys
A QuickKey is a configurable graphical key, located at the bottom of the main screen. They
give you fast access to functions. Their availability and the order in which they appear on
your screen, depend on how your patient monitor is configured.
The following QuickKeys can be displayed on the screen:
Symbol Label Function
/ Scrolls left to display more QuickKeys.
/ Scrolls right to display more QuickKeys.
Main Menu Enters the main menu.
Standby Enters the Standby mode.
Alarm Setup
Enters the [Alarm Setup] menu.
Review
Enters the [Review] window.
NIBP Measure
Enters the [NIBP Measure] menu.
Stop All Stops all NIBP measurements.
To Next Page
