Mindray uMEC10 User Manual

16-3
16.5 Measuring CO
2
16.5.1 Making a CO
2
Measurement
1. Select the appropriate watertrap and sampling line according to the patient category.
2. Connect the watertrap and sampling line.

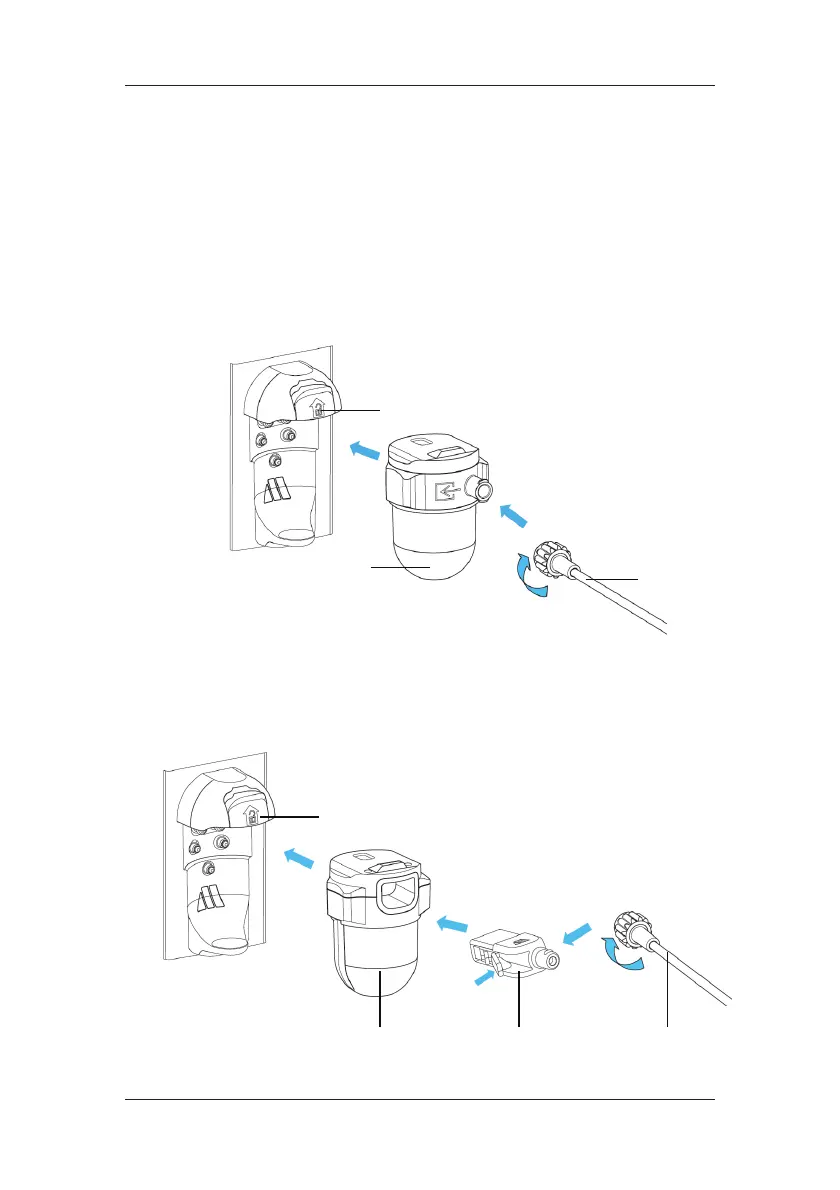

 If you use DRYLINE II watertrap (PN: 100-000080-00 or PN: 100-000081-00),
connect the watertrap to the watertrap receptacle, and then connect the sampling
line to the watertrap as shown below.
 If you use DRYLINE PRIME watertrap mini, connect the DRYLINE PRIME
receptacle to the watertrap receptacle, connect the DRYLINE PRIME watertrap
mini to the DRYLINE PRIME receptacle adapter, and then connect the DRYLINE
PRIME sampling line to the watertrap mini as shown below.
Watertrap receptacle
DRYLINE II watertrap
Sampling line
DRYLINE PRIME
sampling line
DRYLINE PRIME
receptacle adapter
DRYLINE PRIME
watertrap mini
Watertrap trap receptacle

Mindray uMEC10 Specifications

General

Resolution	800 x 600
ECG	3/5-lead ECG
EtCO2	Optional
Battery	Rechargeable lithium-ion
Battery Life	4 hours
Dimensions	110 mm
Alarm	Audible and visual alarms
Power Supply	AC 100-240V, 50/60Hz
Agent	No
O2	No
