(3) USB Connector
It connects such devices as the USB mice, USB keyboard, barcode scanner, etc.
(4) Network Connector
It is a standard RJ45 connector which connects the patient monitor to CMS or other
patient monitor for remote view. It also connects the patient monitor to PC for system
upgrade.
(5) Equipotential Grounding Terminal
When the patient monitor and other devices are to be used together, their equipotential
grounding terminals should be connected together, eliminating the potential difference
between them.
(6) AC Power Input
(7) Power mousing- hook
2.5 Display Screen

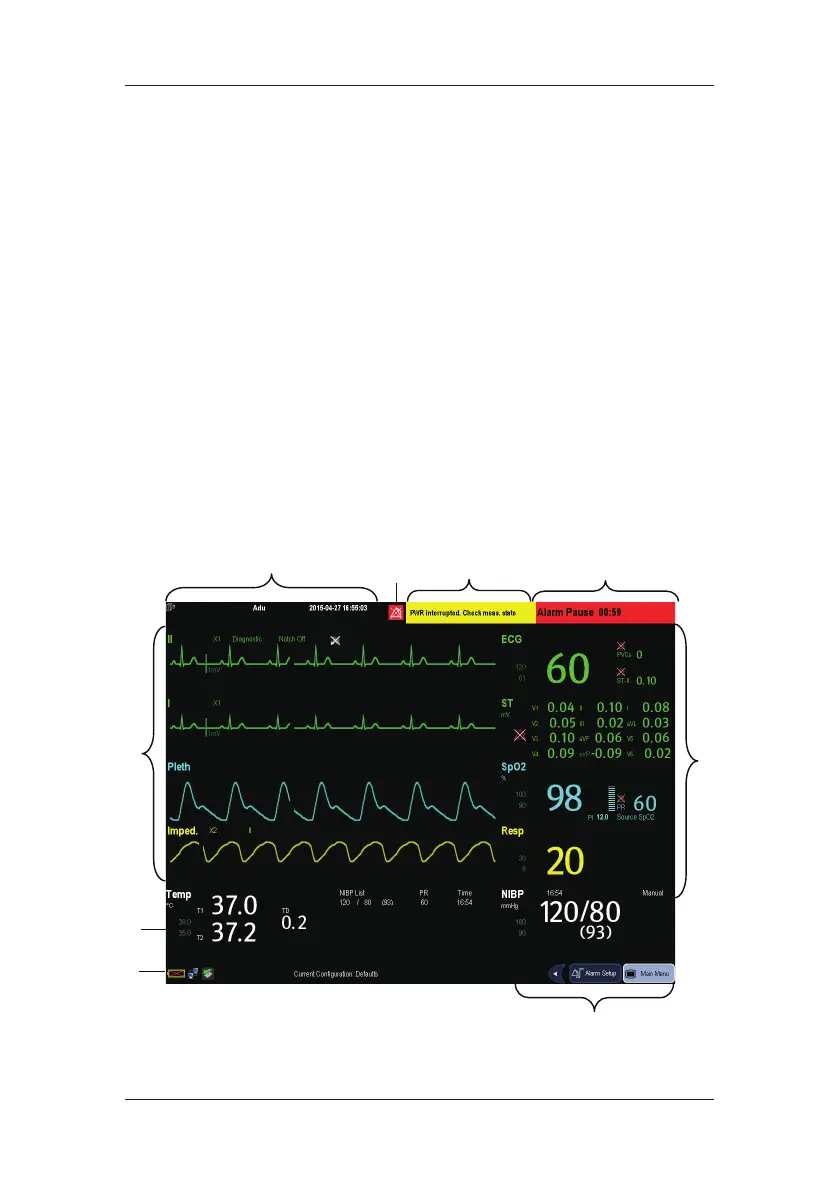

This patient monitor adopts a high-resolution TFT LCD to display patient parameters and
waveforms. A typical display screen is shown below.
(1)
(2) (3) (4)
(5)
(6)
(8)
(9)
(7)
To Next Page
