Mindray uMEC10 User Manual

6-7

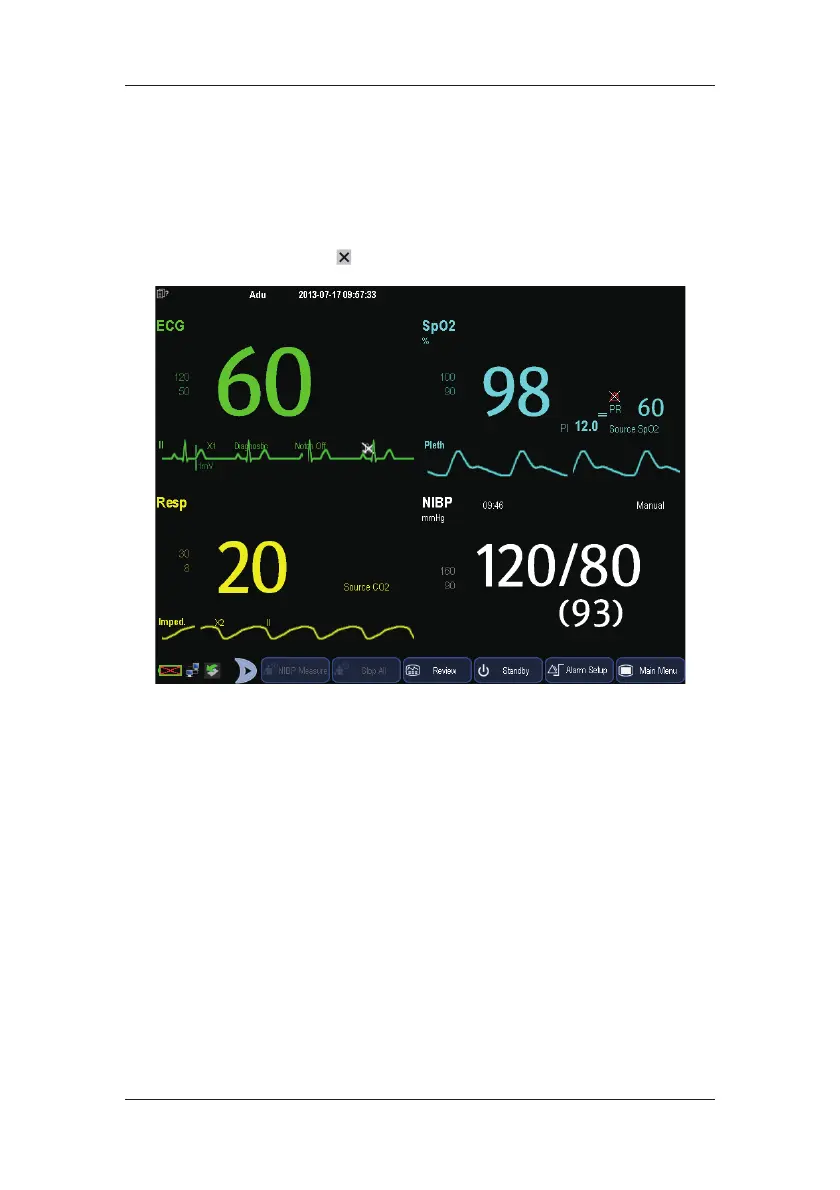

6.5 Understanding the Big Numerics Screen
To enter the big numerics screen:
1. Select the [Screens] QuickKey, or [Main Menu][Screen Setup >>][Screen
Layout >>][Choose Screen].
2. Select [Big Numerics]
.
You can select your desired parameters to display in this screen: select the [Screens]
QuickKey[Big Numerics Screen Setup] and then select the parameters you want. For
parameters having a waveform, the waveform will also be displayed.

Mindray uMEC10 Specifications

General

Resolution	800 x 600
ECG	3/5-lead ECG
EtCO2	Optional
Battery	Rechargeable lithium-ion
Battery Life	4 hours
Dimensions	110 mm
Alarm	Audible and visual alarms
Power Supply	AC 100-240V, 50/60Hz
Agent	No
O2	No
