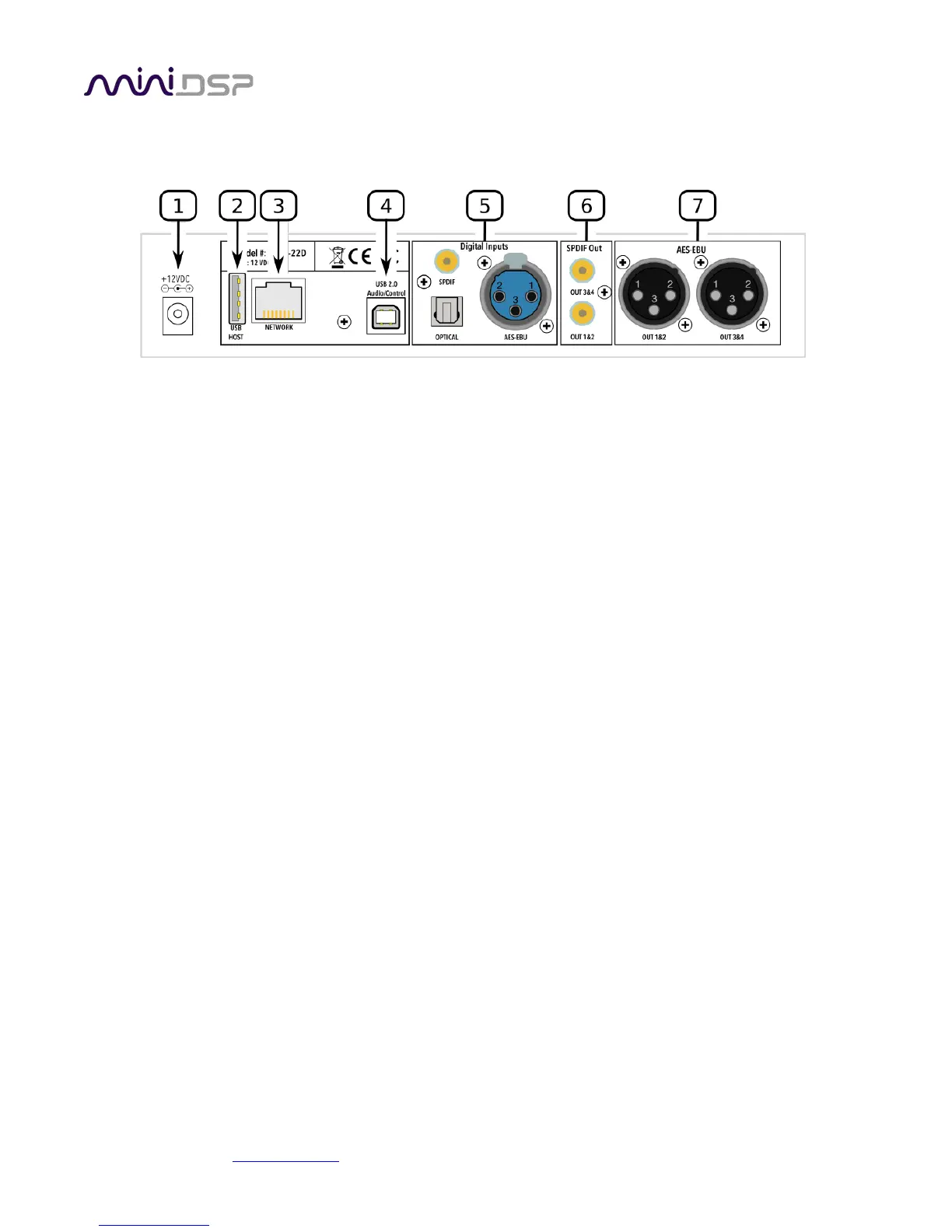

2.2 REAR PANEL CONNECTIONS – SHD STUDIO
1. DC power inlet. Connect the supplied 12 VDC power supply here.
2. Host port for USB music sticks.
3. Ethernet port for network music streaming.
4. USB port for control and audio streaming. Connect to an available USB port on your computer.
5. Digital inputs. Connect digital sources here using optical (TOSLINK SPDIF), coax (RCA SPDIF), or AES/EBU
(XLR) connections. Sample rates from 32 up to 216 kHz are supported. The three digital inputs can be
separately selected with the front panel encoder or the remote control.
6. SPDIF Out. Connect external DACs with RCA cables here. Each DAC must be capable of running at 24-bit
96 kHz.
7. AES-EBU. Connect external DACs with XLR AES-EBU cables here. Each DAC must be capable of running at
24-bit 96 kHz.
