6.3 CONFIGURING FOR MEASUREMENT
Start Dirac Live Calibration Tool for miniDSP (DLCT).
Be sure to quit the SHD plugin program before starting DLCT. Running the two programs at the same
time will result in communication conflicts and odd behavior.

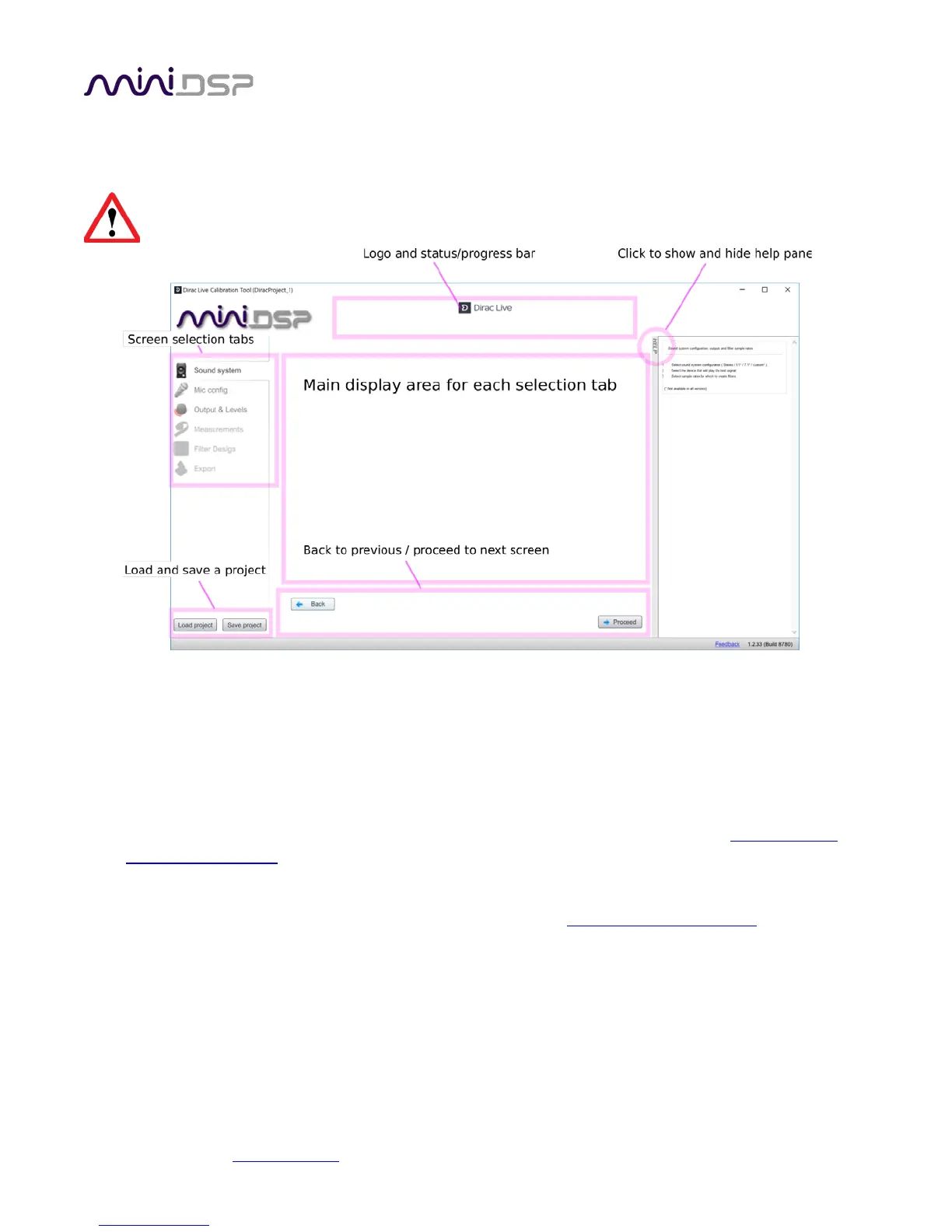

The main areas of the interface are:
Logo and status progress bar
This area shows a progress bar with current status when the program is performing calculations.
Selection tabs
Each tab selects a different step of the calibration process. These are generally worked through in order,
from top to bottom. This section covers the first four tabs; the final two are covered in
Dirac Live Filter
Design and Download.
Load and save a project
Projects can be saved to a file and reloaded at a later time. See Saving and loading projects
.
Back to previous / proceed to next
Use these two buttons to advance to the next tab when each is complete, or to go back to the previous
tab to make alterations. The tabs at the left can also be clicked on directly.
Help open/close
Click on the small Help divider at the right of the window to open a pane with help on the currently
selected tab. Click on the divider again to close the help pane.
