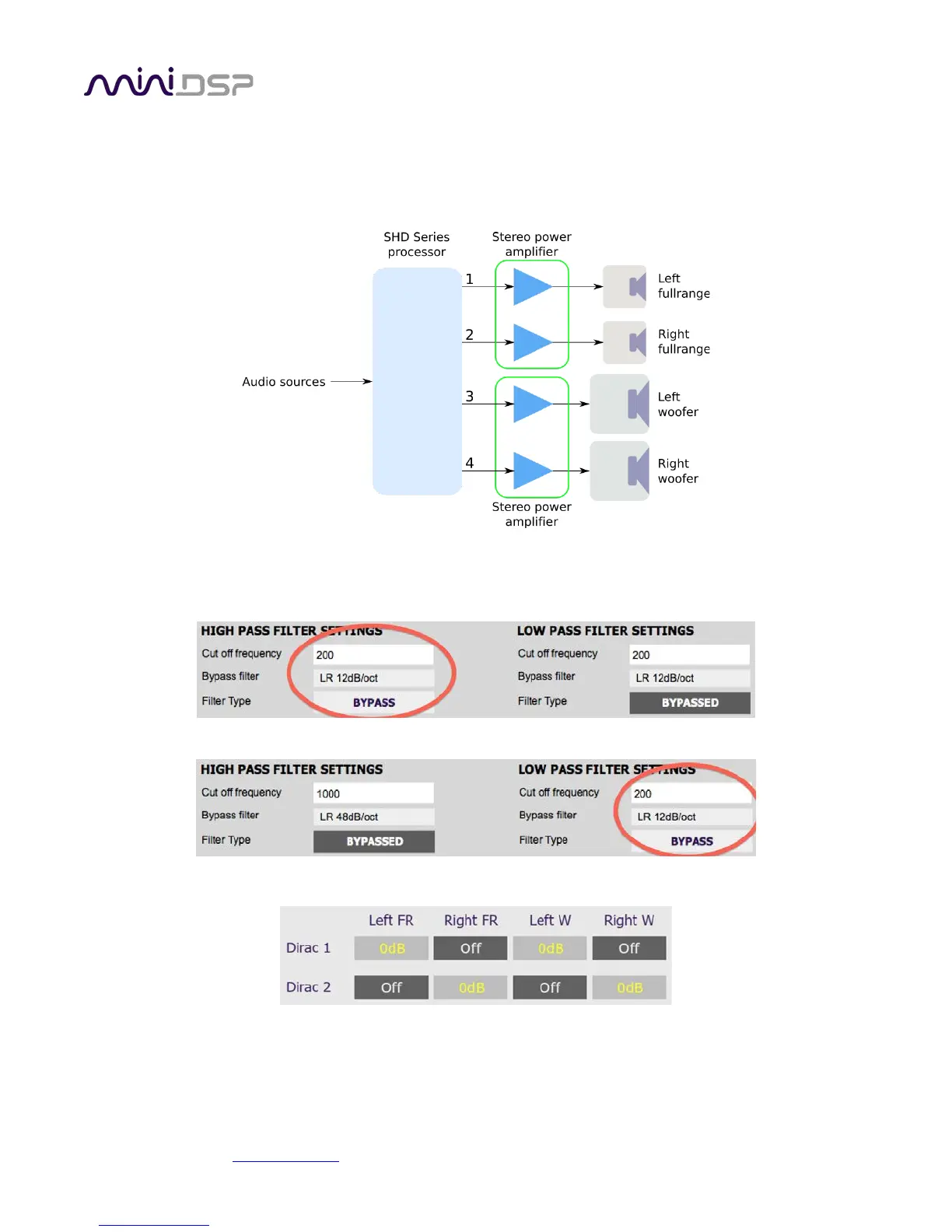

8.6.4 Stereo supporting woofers/FAST
In a configuration with two full range speakers supplemented by supporting woofers (sometimes known as
“FAST”), the plugin is set up to split the frequency range to the woofer and full range speakers. This diagram
illustrates the connections:
On the Outputs tab:
• Rename the output channels (from left to right) to “Left FR”, “Right FR”, “Left W” and “Right W”.
• Set a high pass crossover filter on channels 1 and 2 (“Left FR” and “Right FR”). For example:
• Set a low pass crossover filter on channels 3 and 4 (“Left W” and “Right W”). For example:
On the Routing tab, set the matrix like this:
It is recommended that you take acoustic measurements to check and fine-tune your crossover settings. After
you have set up the SHD plugin, save your configuration to a file. Then quit the SHD plugin, start DLCT and run
Dirac Live calibration as described in Sections 6 and 7.
