Elevator Restriction Unit Installation and Configuration
P11. Not used.
6.5 2012E Elevator Restriction Relay Card
The 2012E Elevator Restriction Relay Boards plug into the backplane portion of
the Elevator Restriction Unit. They number from one to eight starting from the
bottom slot and moving towards the top.
Each relay board has 12 Form “A” or “B” relay contacts rated at 28 VDC, 0.5
amperes. Each jumper is selectable as normally open or normally closed.
There may be a total of 96 elevator restriction relays in each Elevator Restriction
Unit.

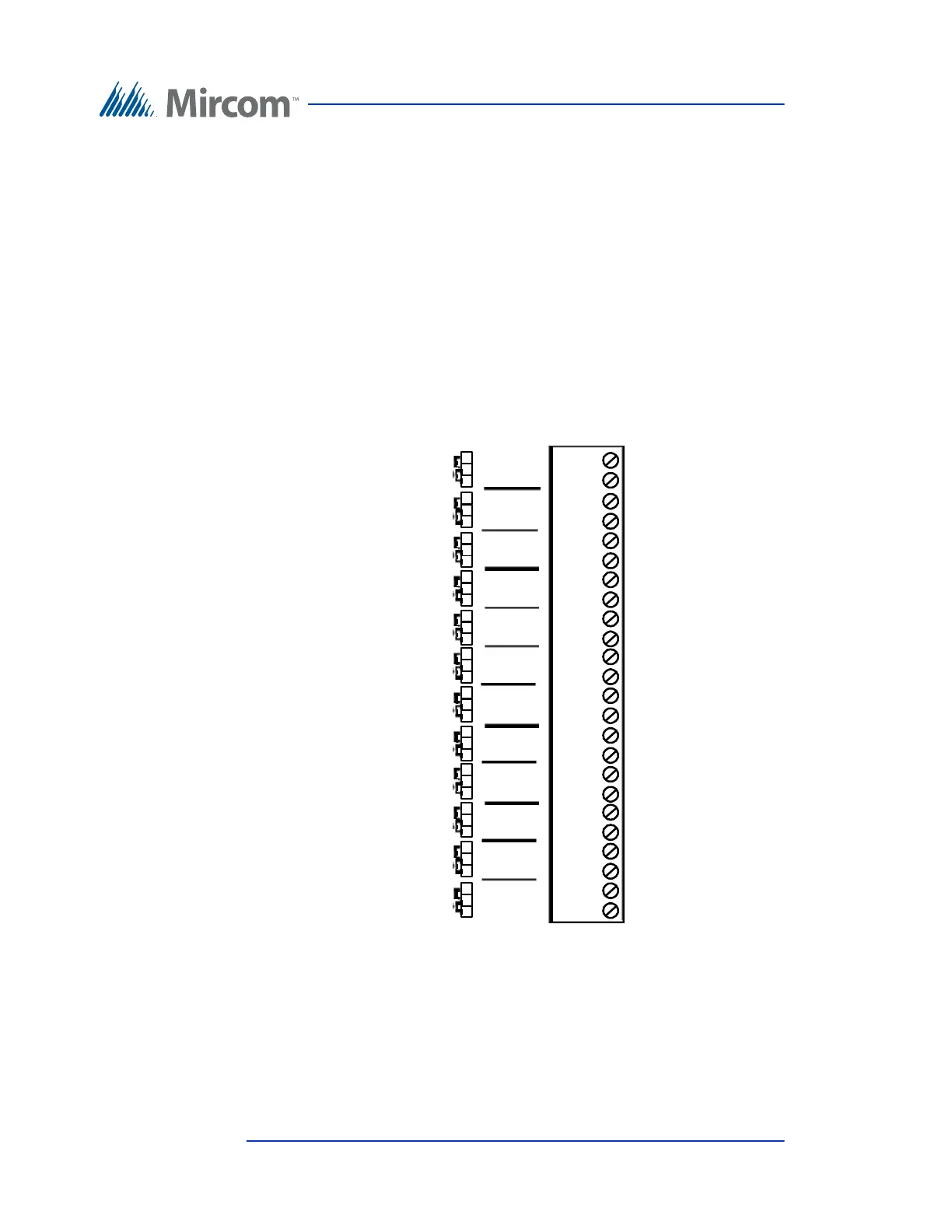

Figure 55. 2012E Elevator Restriction Relay Board
6.5.1 Relay Board Components
JW1-12. Jumpers for selecting normally open or normally closed relay
operation.
I1-12. LEDs indicating when each relay is active.
RE LAY 5
RE LAY 6
RE LAY 7
RE LAY 8
RE LAY 9
RE LAY 10
RE LAY 11
RE LAY 1
RE LAY 2
RE LAY 3
RE LAY 4
RE LAY 12
JW2
JW1
JW3
JW4
JW5
JW6
JW7
JW8
JW9
JW1 0
JW1 1
JW1 2
Com
NO/NC
Com
NO/NC
Com
NO/NC
Com
NO/NC
Com
NO/NC
Com
NO/NC
Com
NO/NC
Com
NO/NC
Com
NO/NC
Com
NO/NC
Com
NO/NC
Com
NO/NC
NC
NO
NC
NO
NC
NO
NC
NO
NC
NO
NC
NO
NC
NO
NC
NO
NC
NO
NC
NO
NC
NO
NC
NO
