Mircom TX3 Series - Figure 14 Attach the Kiosk to the Base Plate

Enclosure Installation
Version 3.7 Telephone Access System Installation and Operation Manual 35 (119)
LT-969 Copyright January 2017
2. Secure the Kiosk onto the base plate using the 8 of the 12 base plate bolts
in the holes shown in Figure 14.

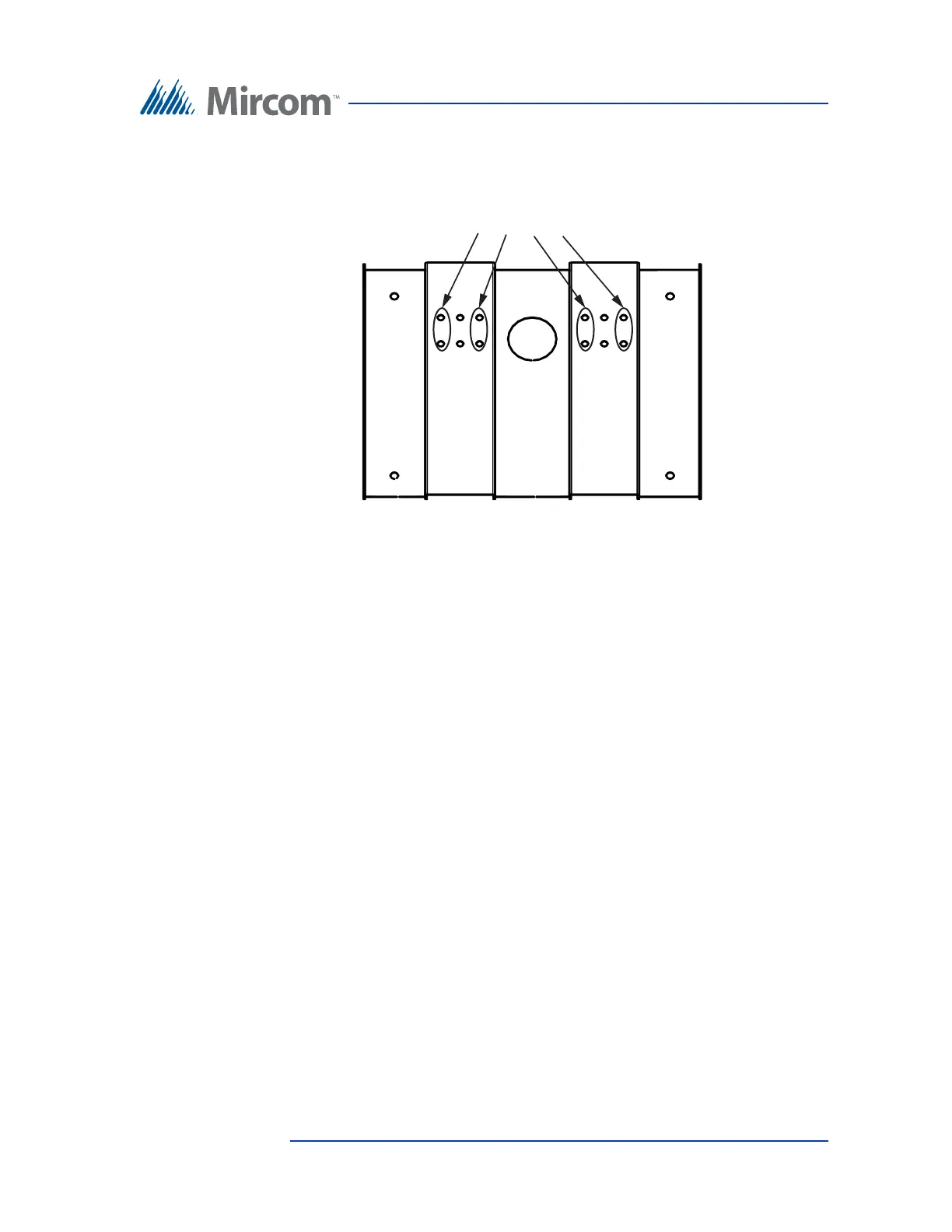

Figure 14 Attach the Kiosk to the base plate
3. Position the reinforcement bracket over the 6 studs on the inside of the
Kiosk, and screw the 6 nuts on to the studs as shown in Figure 7.
4. Secure the reinforcement bracket to the base plate using the remaining 4
base plate bolts in the remaining 4 holes in the base plate.
5. Fit the door to the Kiosk.
Attach the Kiosk to the base plate
with bolts in these holes rst
