Mircom TX3 Series - Figure 12 Fitting the Kiosk on the Base Plate; Figure 13 Fitting the Kiosk on the Base Plate (from Below)

34 (119) Telephone Access System Installation and Operation Manual Version 3.7
LT-969 Copyright January 2017
Enclosure Installation
To fit the Touch Screen Kiosk on the base plate
1. Fit the back lip of the Kiosk into the notches in the baseplate, and tilt the
Kiosk forwards so that it rests on top of the base plate.

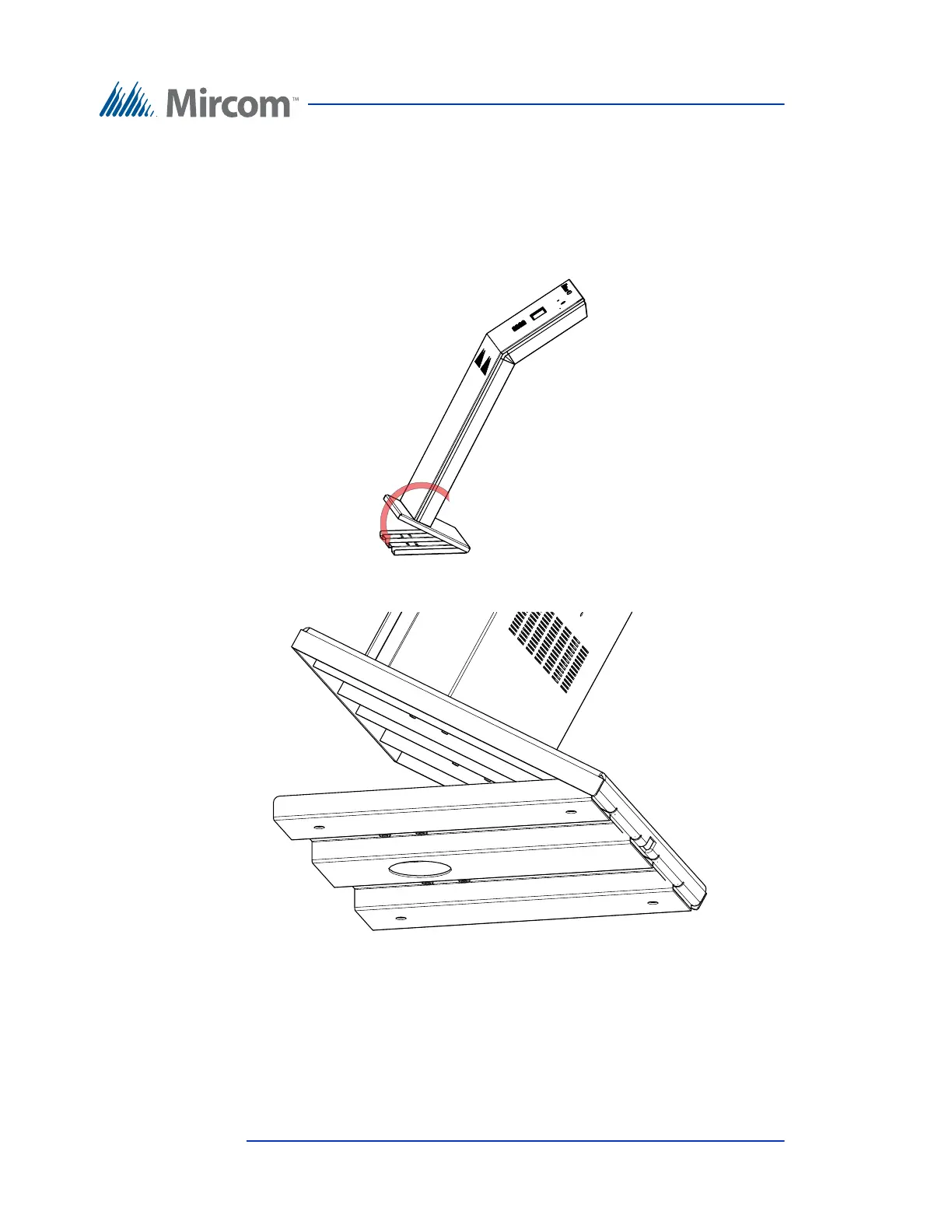

Figure 12 Fitting the Kiosk on the Base Plate
Figure 13 Fitting the Kiosk on the Base Plate (from
below)
