Enclosure Installation
Version 3.7 Telephone Access System Installation and Operation Manual 31 (119)
LT-969 Copyright January 2017
To install the Touch Screen Kiosk base plate
1. Find a suitable location for the Kiosk next to the building entrance and
above the building electrical and communications conduit.
2. Remove the door from the Kiosk.
3. Remove the 4 bolts from the reinforcement bracket, as shown in Figure 6

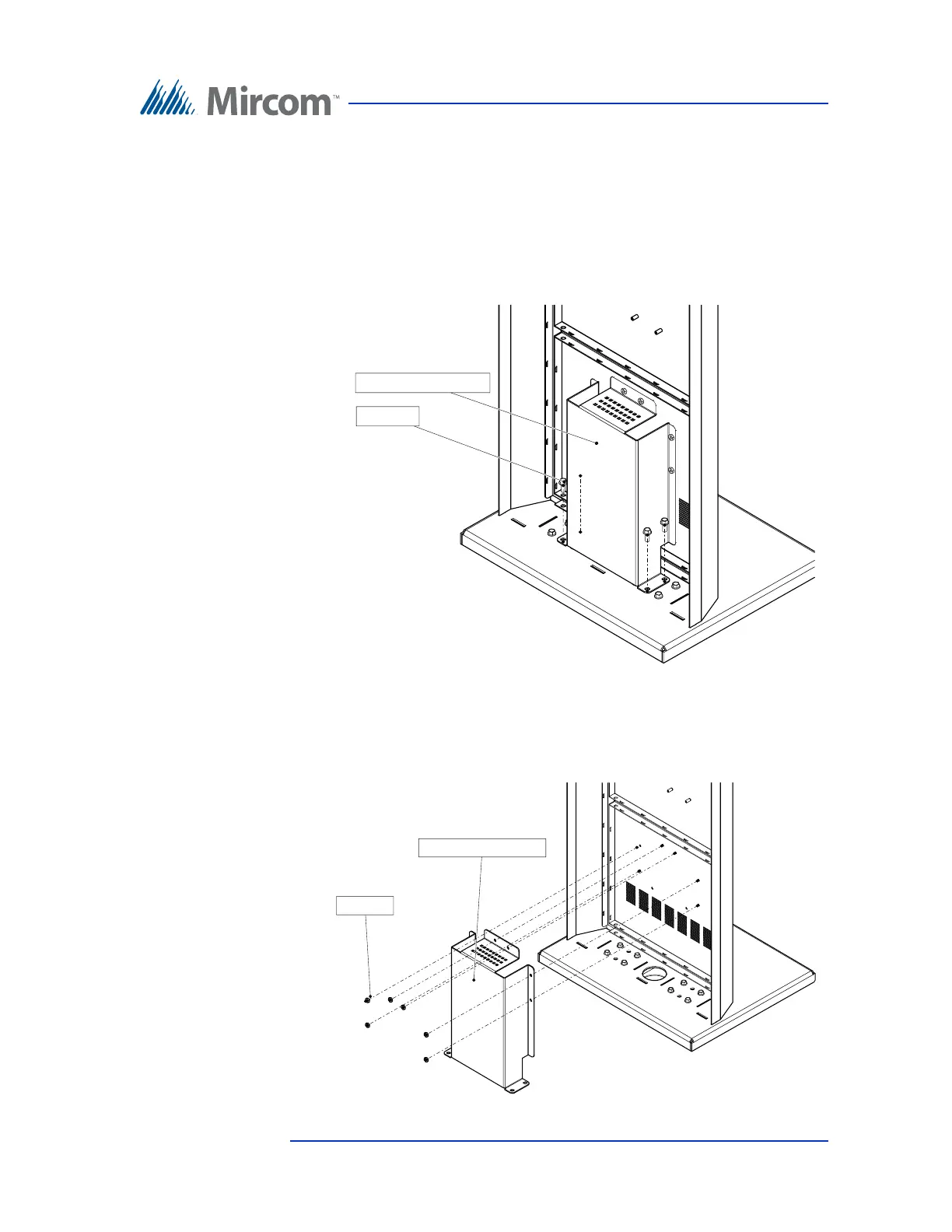

Figure 6 Reinforcement Bracket with bolts
4. Remove the 6 nuts on the reinforcement bracket, as show in Figure 7, and
then remove the bracket.
Bolts (x4)
Reinforcement Bracket
Nuts (x6)
Reinforcement Bracket
