POWER TRAIN
-
Manual Transaxle
2-7

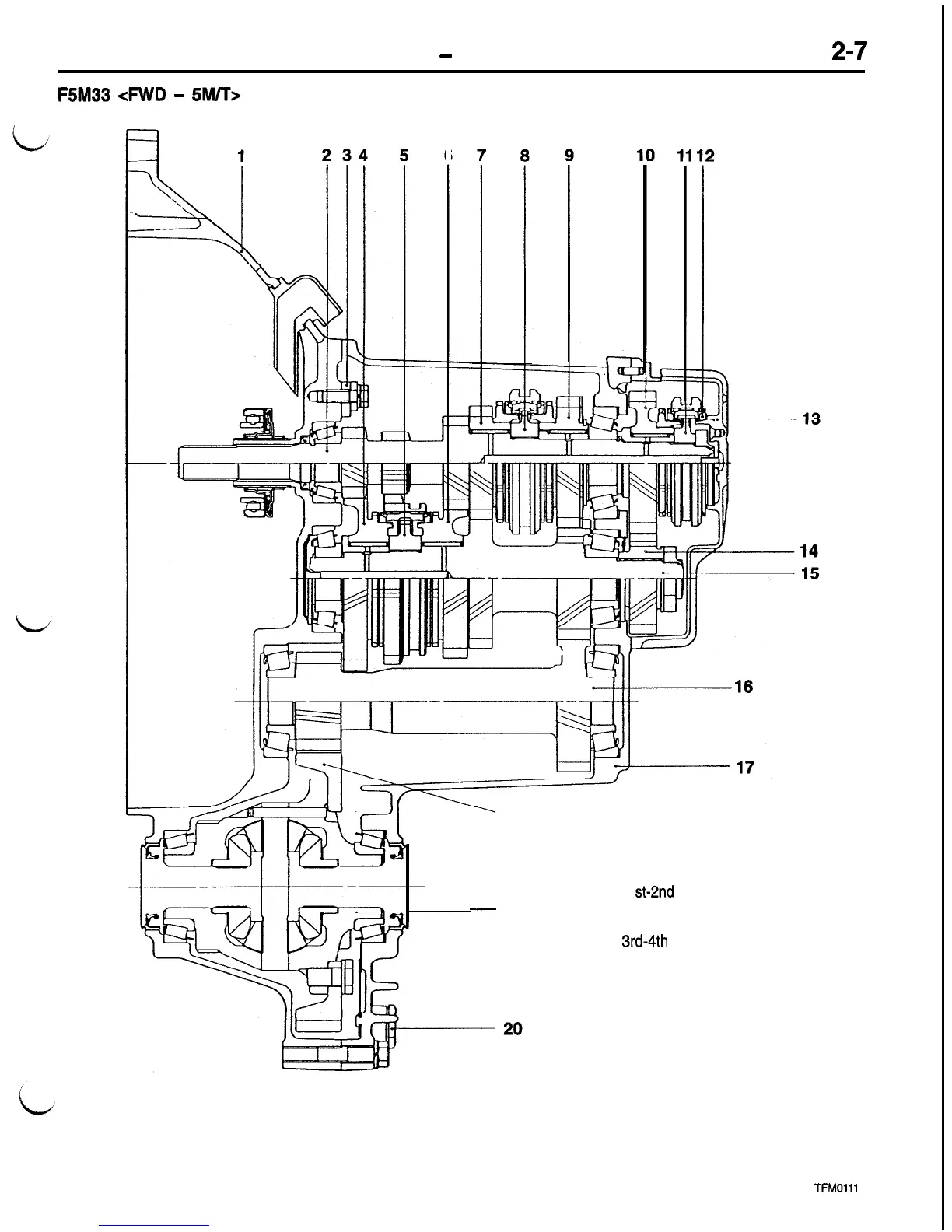

F5M33
<FWD
-
5M/T>
6
’
18
1.
Clutch housing
2.
Input shaft
3.
Bearing retainer
4.
1 st speed gear
5.
1
stPnd
synchronizer
-
19
6.
2nd speed gear
7. 3rd speed gear
8.
3rd-4th
synchronizer
9. 4th speed gear
10. 5th speed gear
11.
5th synchronizer
12.
Reverse brake
13.
Rear cover
14. 5th intermediate gear
15.
Intermediate gear
16.
Output shaft
17.
Transaxle case
18. Differential drive gear
19.
Differential
20.
Drain plug
TFMOlll
119
