Mitsubishi ECLIPSE Technical Information Manual

DRIVE-CONTROL COMPONENTS - Service Brakes
3-25

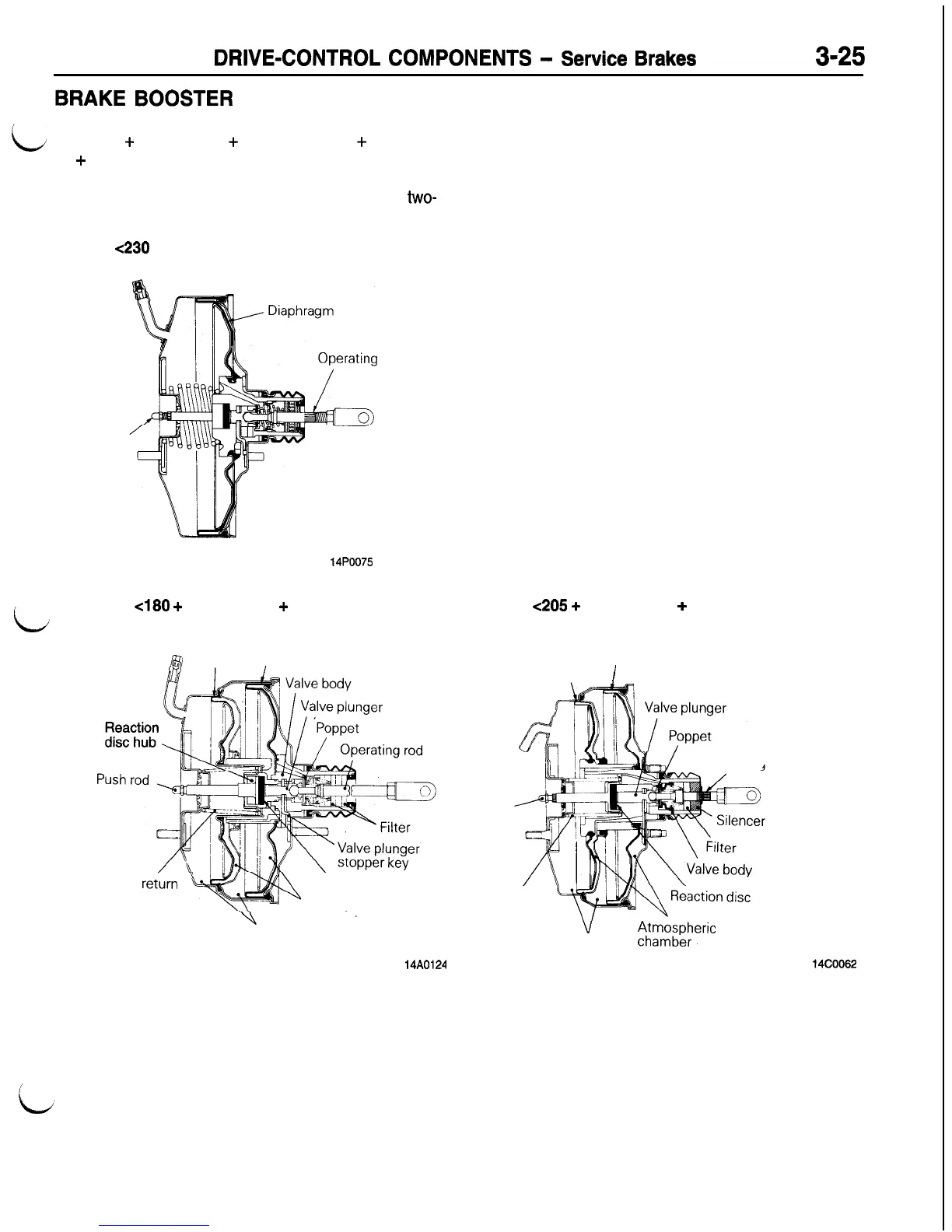

BRAKE BOOSTER
L
Brake booster comes in three types: 230 mm (9
in.), 180 + 205 mm (7 + 8 in.) and 205 + 230 mm
(8 + 9 in.) diameter ones. An appropriate one of
them is used to each model variation. The tandem
type boosters have two diaphragms each. The two-
L
<230 mm (9 in.) Brake Booster>
Push
rod
14POO75
480 + 205 mm (7 + 8 in.)
Tandem Brake Booster>
Front
gj diaphragm Rear diaphragm
rod
Booster return ’
Reaction disc
spring
Atmospheric
chamber
Vacuum
chamber
14AO124
diaphragm configuration can utilize a doubled pres-
sure difference between the vacuum and the atmo-
spheric pressure, so that a large boosting effect
can be obtained with a small outside diameter, there-
by contributing to size and weight reduction.
Push
rod
Booster
spring
<205 + 230 mm (8 + 9 in.)
Tandem Brake Booster>
Front
Rear diaphragm
diaphragm /
LJ
Operating
return
Vacuum
k4;;$eric
chamber
rod
14COO62
