DRIVE-CONTROL
COMPONENTS
-
ABS
<FWD>
3-33
id
Pump motor relay
m
14X0288
r--
--7
I
a7
30
EY
86
’
a5
L_-_
i
14A0145
16R0670
14A0139
14AO146
16R0670
14A0140
warning
14X0296

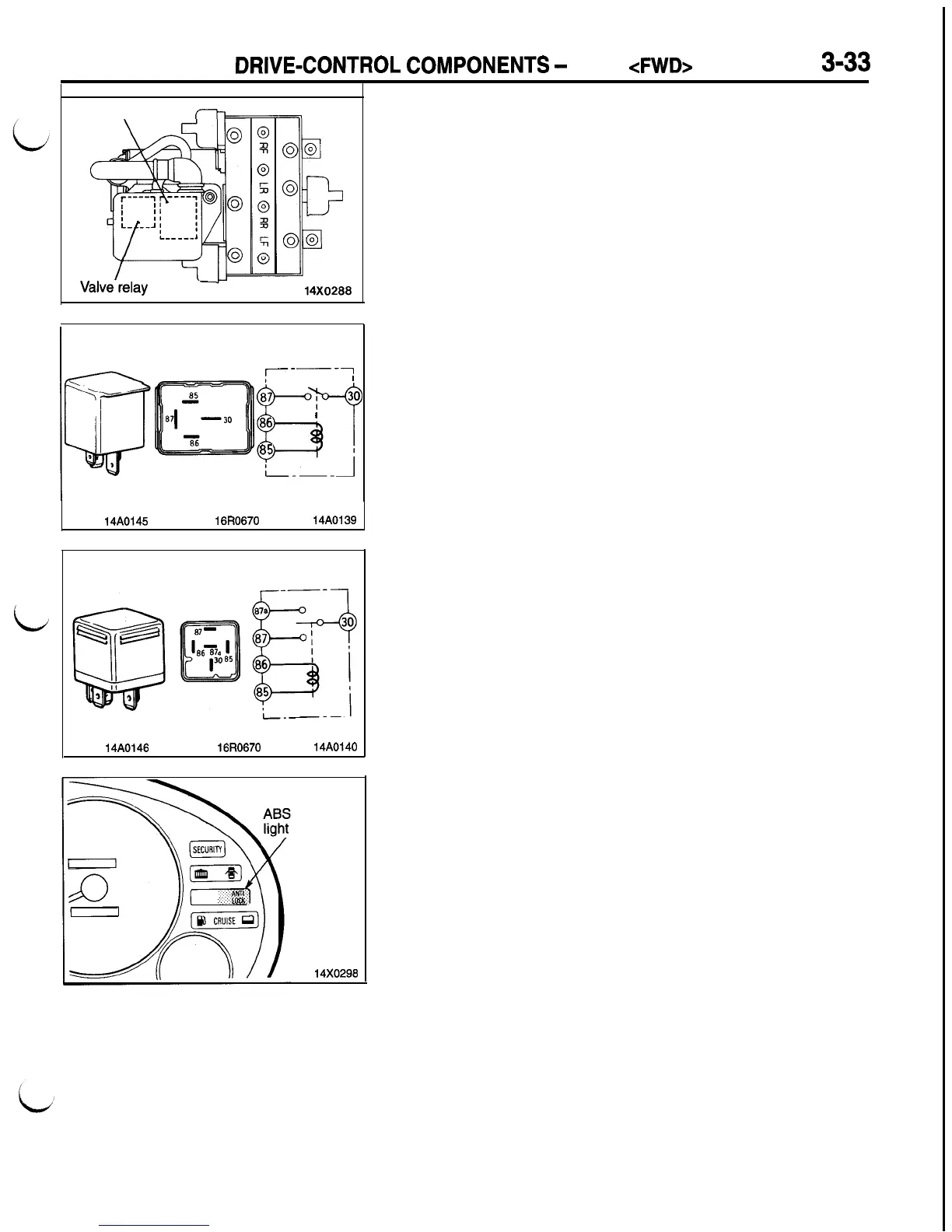

Relay Box
The motor relay and valve relay are mounted on the hydraulic
unit.
MOTOR RELAY
This relay turns the pump motor in the HU ON and OFF.
NOTE
Refer to the section on ECU control for ON/OFF control.
VALVE RELAY
This relay turns current to the solenoid valve in the HU ON
and OFF.
NOTE
Refer to the section on ECU control for ON/OFF control.
ABS WARNING LIGHT
This light lights up in case if there is a breakdown in the ABS.
Furthermore, it checks whether the bulb is burnt out when
the engine is started.
NOTE
Refer to the section on ECU Control for warning light control.
