Mitsubishi ECLIPSE Technical Information Manual

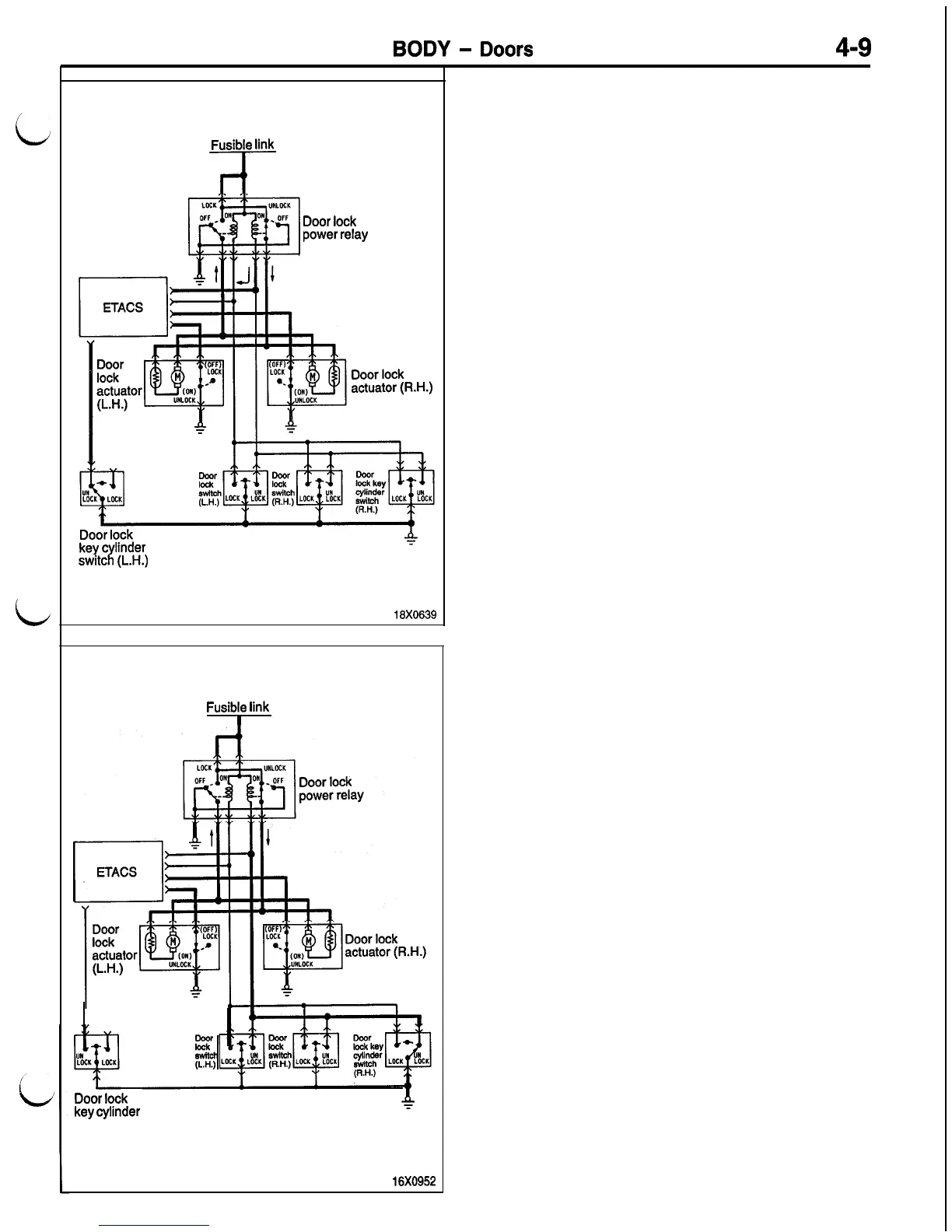

BODY - Doors
4-9
L
L
Fusible link
rt
Door lock
power relay
Door lock
key cylinder
switch (L.H.)
18X0639
Fusible link
I
Door lock
key cylinder
switch (L.H.)
16X0952
2. Door Unlocking Operation
(1) Door Unlocking Operation by Key
When the driver’s door key is operated once to-
ward the unlock side, the driver’s door is unlocked
by a mechanical link. At the time, the driver’s
door lock actuator switch signal to the ETACS
changes to ON. In this state, when the driver’s
door key is operated once again toward the unlock
side, the ON signal is input from the door lock
key cylinder switch to the ETACS. In response
to these signals the ETACS delivers an unlock
output. Accordingly, the unlock side coil of the
door lock power relay is energized to operate
the front passenger’s door actuator and unlock
the front passenger’s door.
When the front passenger’s door key is placed
in the unlock position, the unlock side coil of
the door lock power relay is energized to operate
the door lock actuators and unlock all the doors.
