Mitsubishi ECLIPSE

ENGINE <NON-TURBO> - Fuel System
1-11
/
FUEL SYSTEM
N?lAFOOAA
The fuel system for 420A engine consists of electro-
magnetic fuel injectors, a fuel rail, a fuel pressure

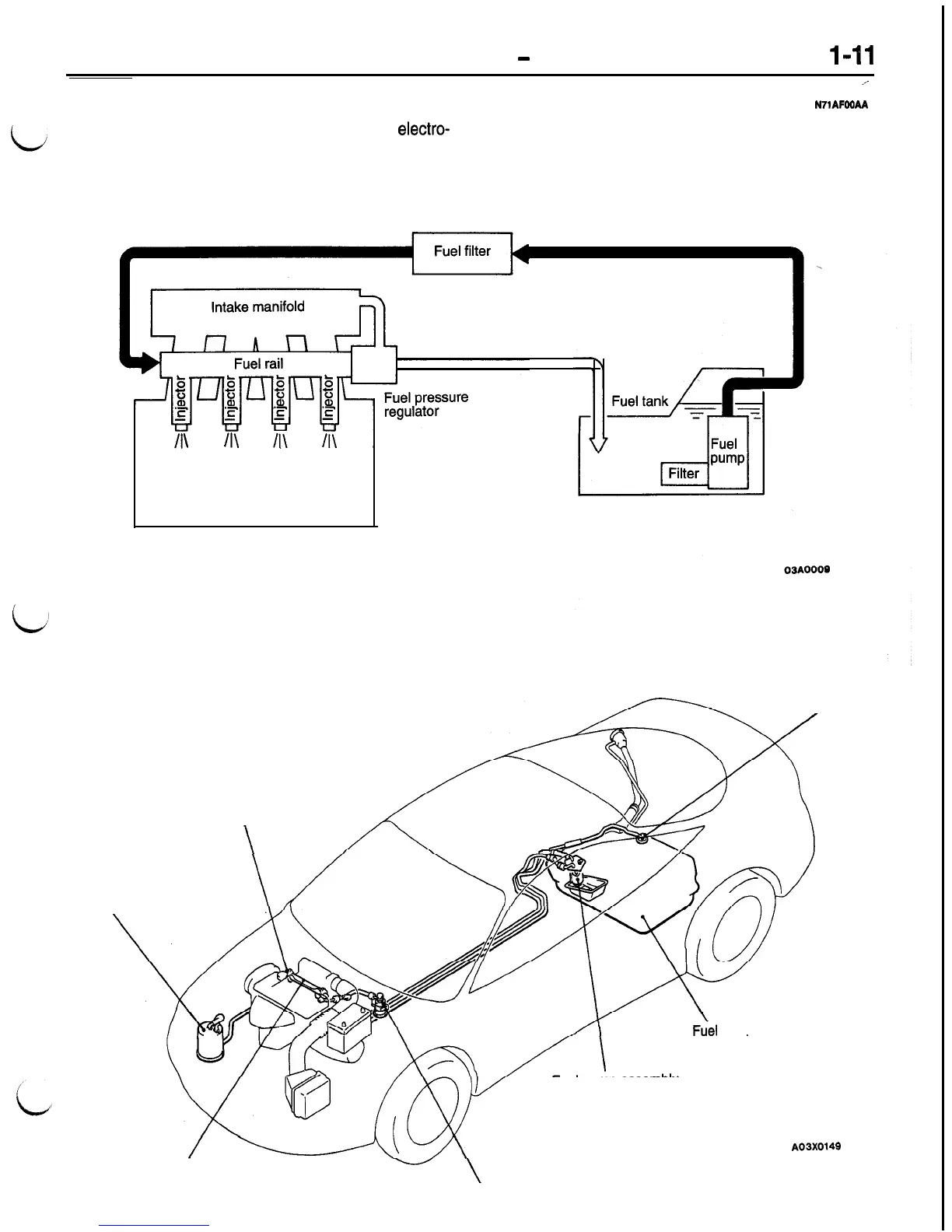

FUEL FLOW DIAGRAM
regulator, an electric motor-driven fuel pump, fuel
filter and fuel tank.
/I\
II\ II\
LJ
CONFIGURATION DIAGRAM
Fuel cut-off
valve assembly
Evaporative
emission
canister
Fuel pressure regulator
\
Fuel
pump assembly
Fuel tank
A03X0149
Fuel rail
w
\
Fuel filter
