3-24
DRIVE-CONTROL COMPONENTS
-
Service Brakes

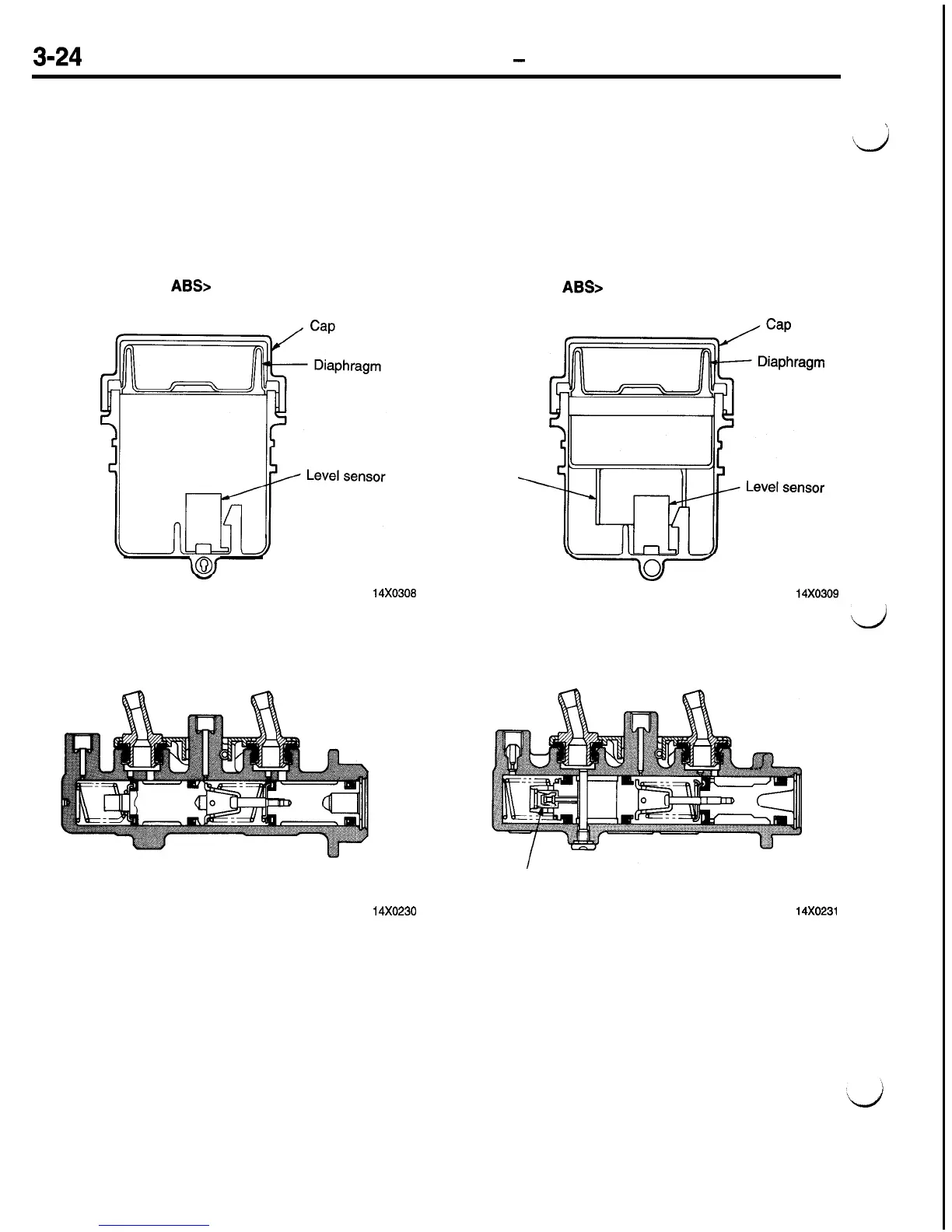

MASTER CYLINDER
Constructed to provide a maximum measure of safe-
ty, the master cylinder offers the following features.
l A tandem type master cylinder.
l
On ABS equipped vehicles, a filter is provided
in the reserve tank to prevent foreign matter
from entering when adding or replacing brake
fluid.
<Vehicles without
ABS>
14X0308
l
The reserve tank cap is white for easy recogni-
\
tion which improves serviceability.
LJ
l
The master cylinder for the ABS equipped ve-
hicles incorporates a center valve to cope with
a high pressure that is generated when the ABS
is in operation.
<Vehicles with
ABS>
Filter
14x0309
ii
14X0230
Center valve
14X0231
To Next Page
