EQUIPMENT
-
ETACS

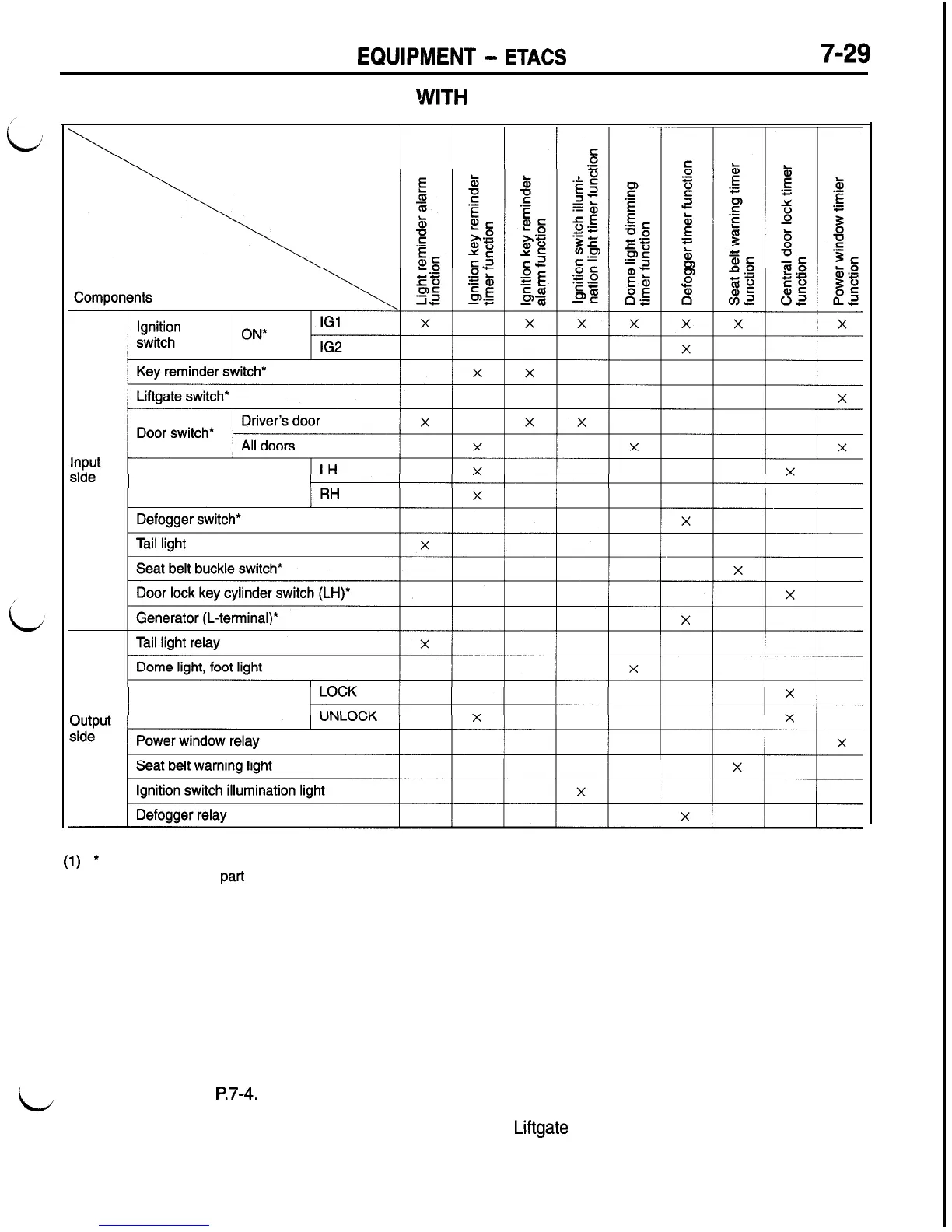

PARTS AND FUNCTIONS RELATED
WITH
ETACS
Functions
Door lock actuator*
Door lock power relay
NOTE
(1)
*
mark indicates a switch or sensor that can be used for input inspection with a scan tool or voltmeter.
(2)
x mark indicates a
part
relevant for each function.
INPUT CHECK FACILITY OF ETACS
The ETACS-ECU has an input check facility which
enables you to check all the circuits between the
individual switches and the ETACS-ECU on the ba-
sis of a change in voltage at the ETACS terminal
of the data link connector by use of a scan tool
or voltmeter.
NOTE
For the location and pin positions of the data link
L
connector, refer to
P.7-4.
The input check facility of the ETACS includes the
following functions.
1.
Ignition switch
2.
Door switch
3.
Defogger switch
4.
Tail light
5.
Key reminder switch
6.
Door lock switch
7.
Seat belt buckle switch
8.
Door lock key cylinder switch (LH)
9.
Liftgate
switch
