2-70
POWER TRAIN
-
Automatic Transaxle

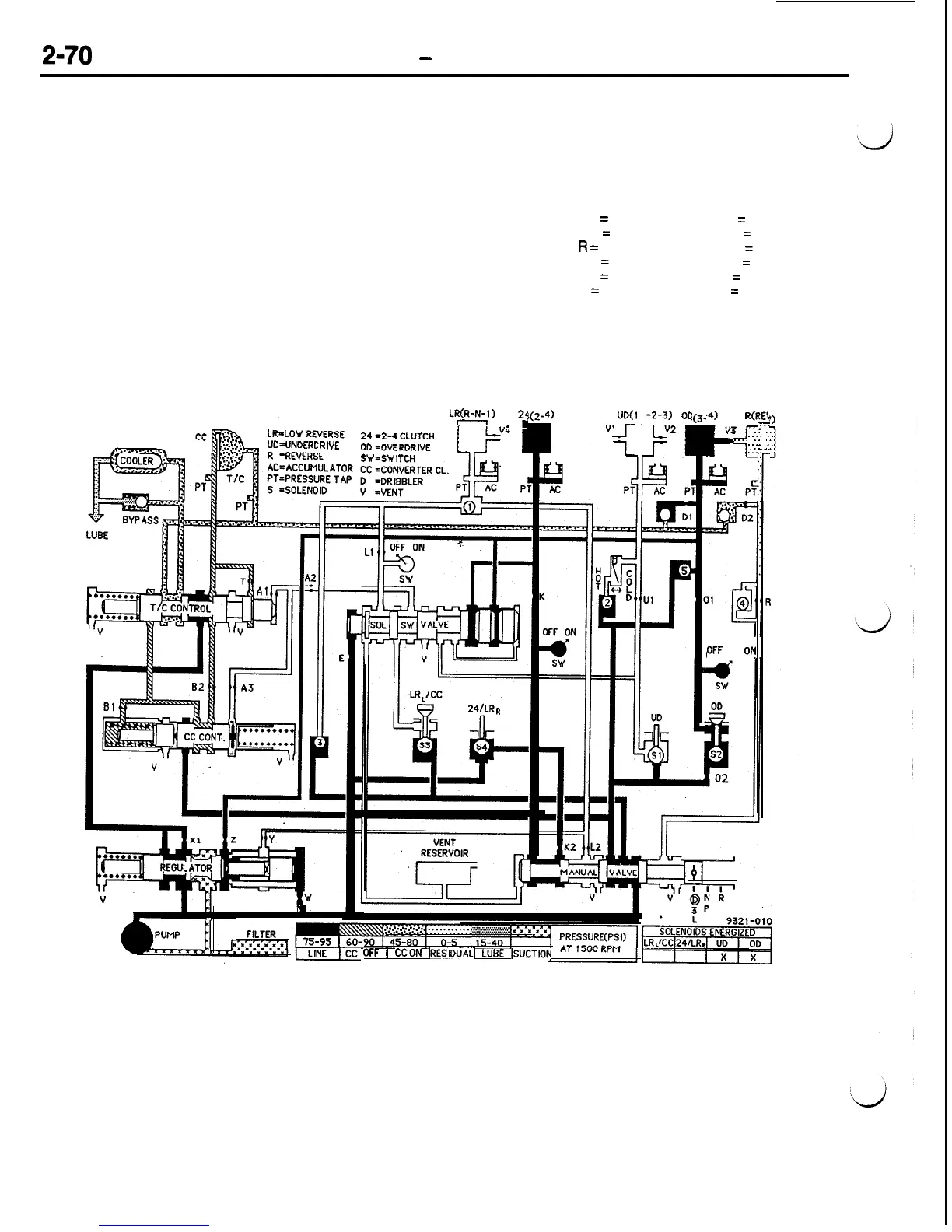

Overdrive Gear (Fourth)
The TCM energizes the underdrive solenoid which
shuts off line pressure to the underdrive clutch. The
the 2-4 clutch to engage. This shifts the transaxle
TCM also de-energizes the 2-4 solenoid and allows
into overdrive by allowing only the 2-4 and overdrive
clutches to be applied.
