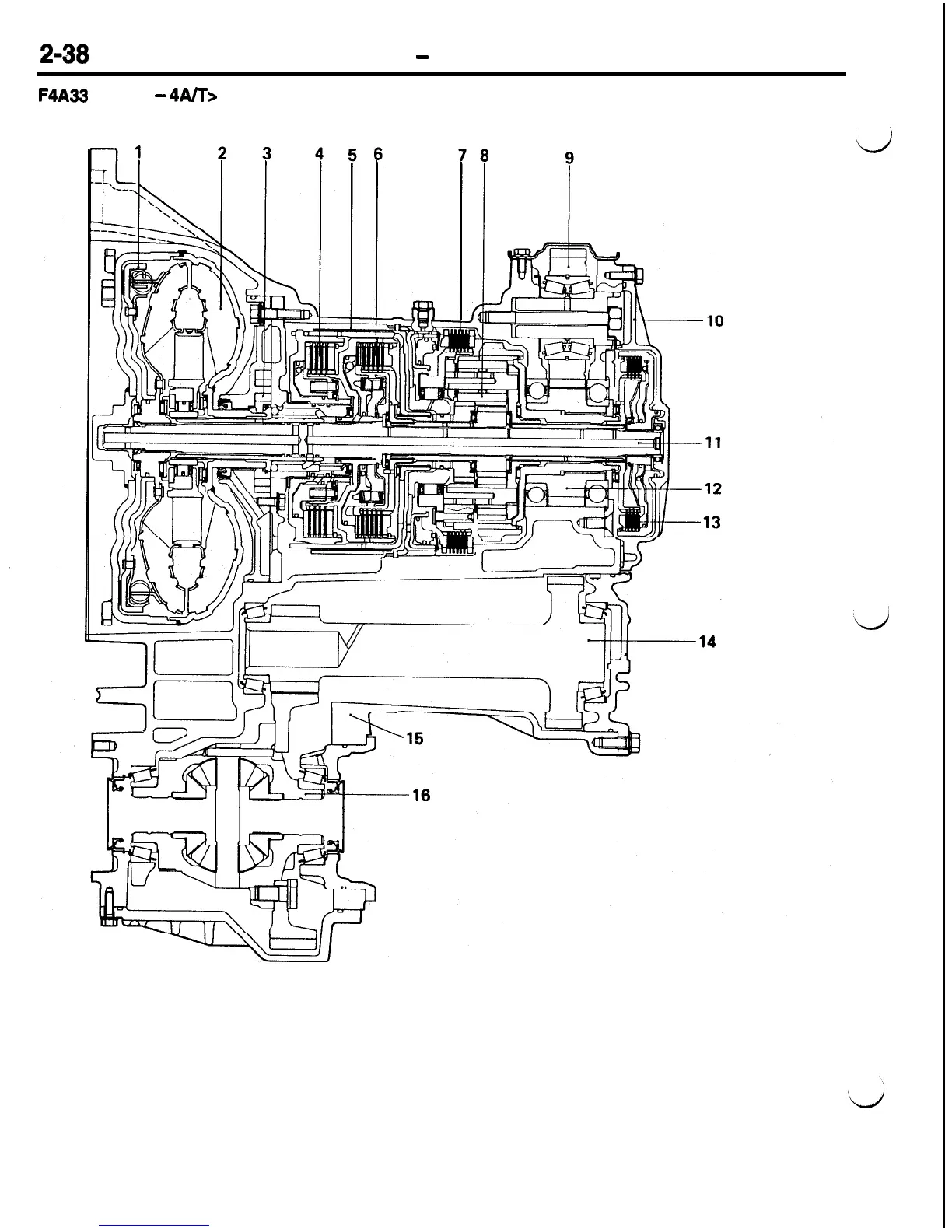

2-38
POWER TRAIN
-
Automatic Transaxle
F4A33
<FWD
-
4AlT>
TFA0540
1.
Damper clutch
2.
Torque converter
9. Transfer idler gear
10.
Rear cover
3.
Oil pump
11.
4.
Front clutch
Input shaft
5.
Kick-down brake
12. Transfer drive gear
13.
End clutch
6.
Rear clutch
14.
Transfer shaft
7.
Low/Reverse brake
15.
Transaxle case
8. Planetary gear set
16.
Differential
