EQUIPMENT
-

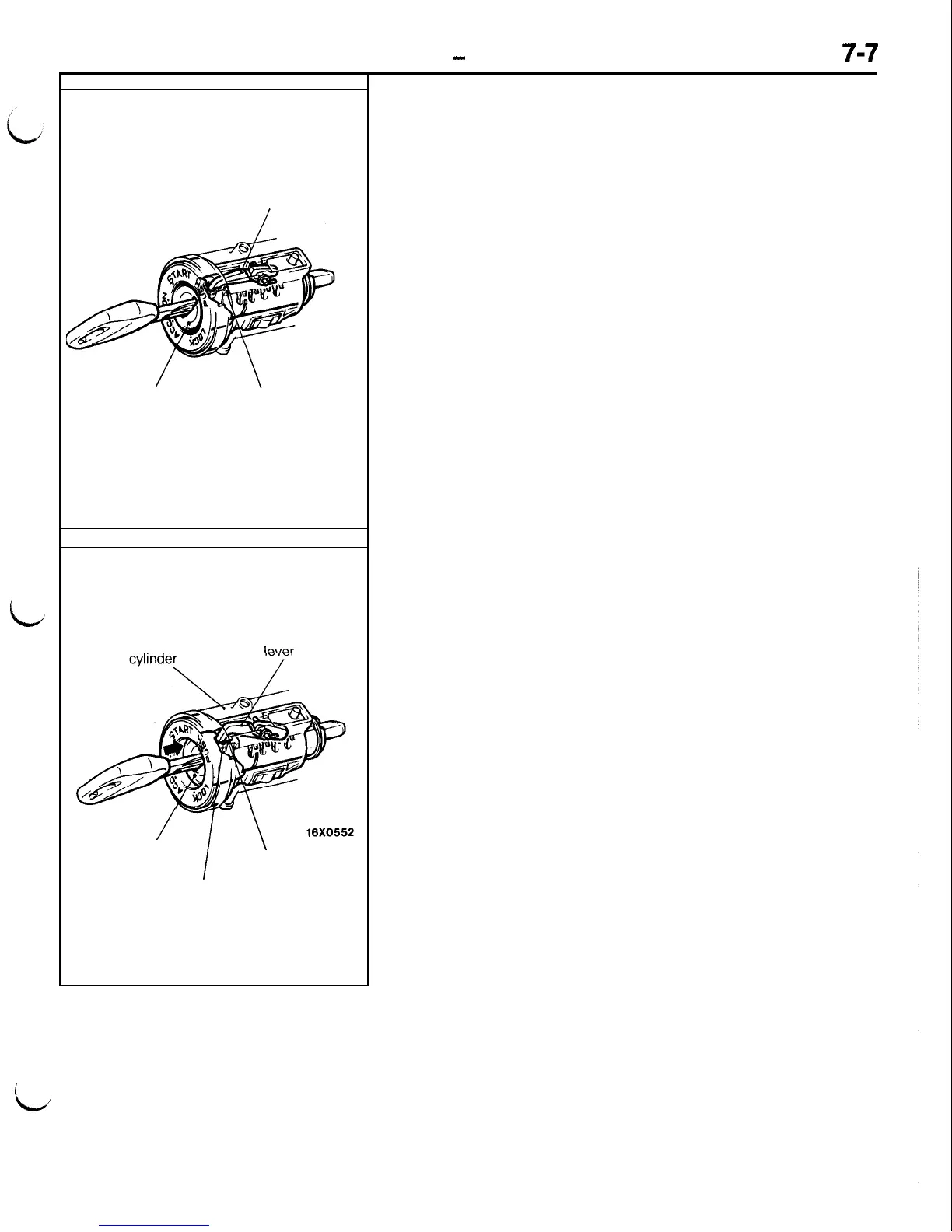

Ignition Switch
7-7
L
Double-action
lever
Key cylinder
16X0551
ACC position
stopper
Steering lock
Double-action
/
-
-
1
\
16X0552
Key cylinder
ACC position
stopper
Raceway
OPERATION
With the ignition key not pushed in (at the ACC position)
The key cylinder is locked by the double-action lever pressed
against the ACC position stopper. Therefore, the ignition key
cannot be rotated from the ACC position to the LOCK position.
With the ignition key pushed in (at the ACC position)
The key cylinder is forced into the steering lock cylinder, and
the double-action lever is moved away from the ACC position
stopper. The double-action lever can now move along the race-
way, so the ignition key can be rotated to the LOCK position.
