Mitsubishi ECLIPSE Technical Information Manual

ENGINE <TURBO> - Control System
I-75
Voltage regulator
Generator
S terminal voltage: 12.3 V or more
Engine control module

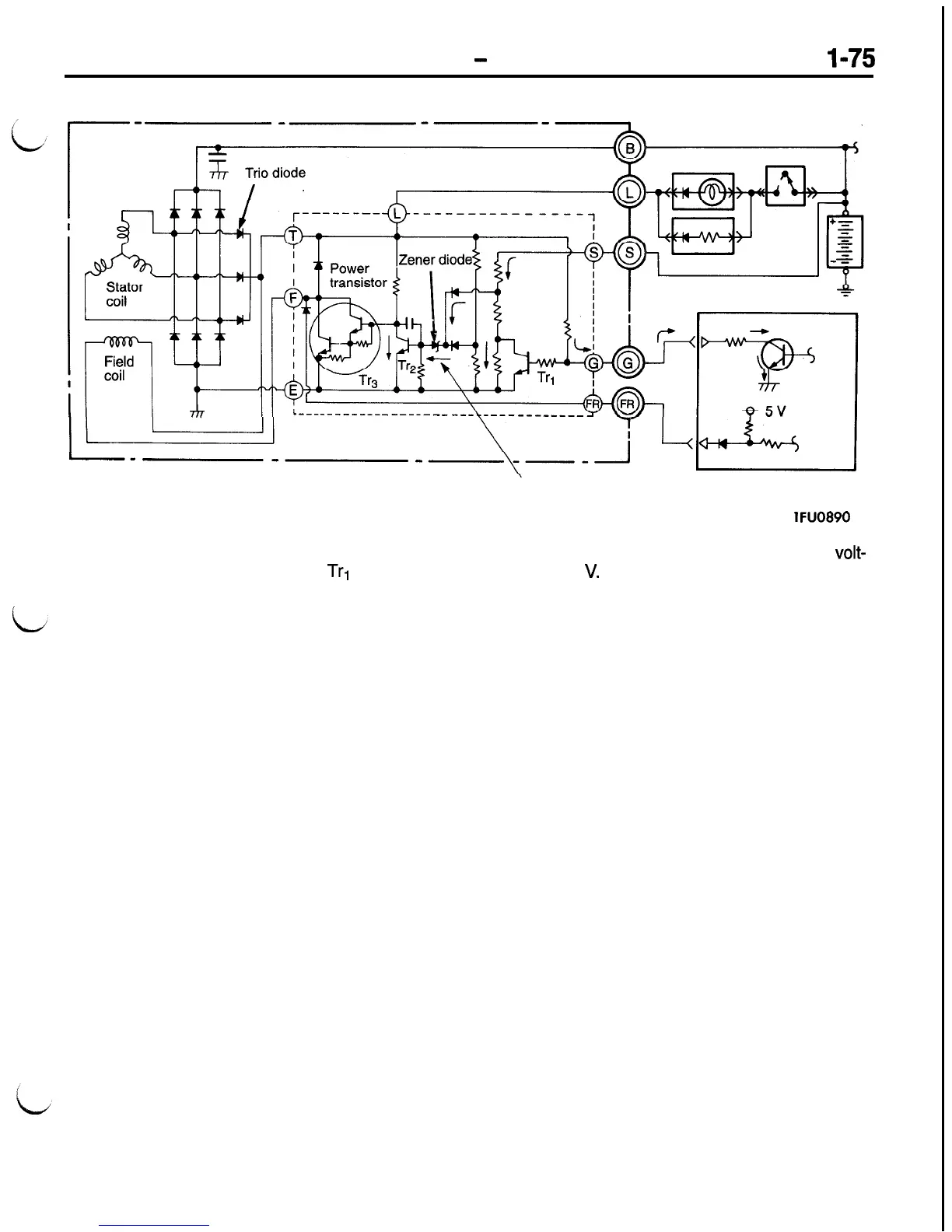

1 FUO890
When generator terminal G is short-circuited to the
ground (let this be 0% duty), the Trt stays in the
always OFF state. In this case, when the voltage
at generator terminal S reaches 12.3 V, the power
transistor is forced to OFF to adjust the output volt-
age to 12.3 V. Since the voltage is lower than
charged battery voltage, practically no current flows
from the generator.
