Mitsubishi FX3G Series User Manual

9 Preparation for Wiring and Power Supply Wiring
9.2 Cable Connecting Procedures
107
FX3G Series Programmable Controllers
User's Manual - Hardware Edition
1
Introduction
2
Features and Part Names
3
Product Introduction
4
Specifications
5
Version and Peripheral Devices
6
System Configuration
7
Input/Output Nos., Unit Nos.
8
Installation
9
Preparation and Power Supply Wiring
10
Input Wiring

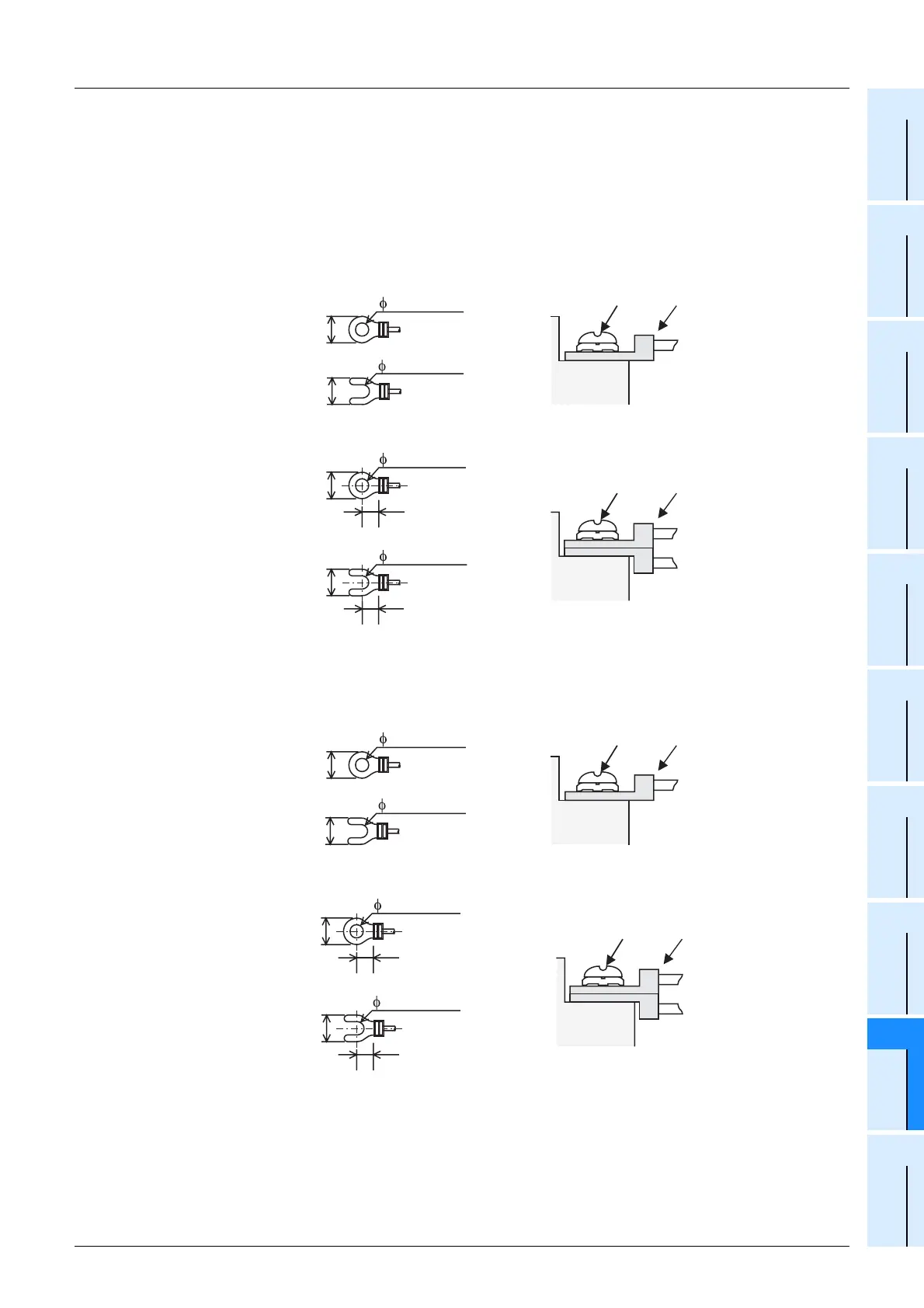

3. Wire end treatment
The solderless terminal size depends on the terminal screw size and wiring method.
- Use solderless terminals of the following size.
- Tighten the terminals to a torque of 0.5 N•m to 0.8 N•m.
In the case of M3 terminal screw
Main unit, input/output powered extension unit/block and special function block
• When one wire is connected to one terminal
• When two wires are connected to one terminal
In the case of M3.5 terminal screw
FX Series terminal block, FX
2N-20PSU, FX2N-8AD
• When one wire is connected to one terminal
• When two wires are connected to one terminal
TerminalTerminal
Terminal
screw
Crimp
terminal
6.2mm(0.24")
or less
3.2(0.13")
6.2mm(0.24")
or less
3.2(0.13")
Terminal
screw
Crimp
terminal
Terminal
6.2mm(0.24")
or less
3.2(0.13")
6.3mm(0.25")
or more
6.2mm(0.24")
or less
3.2(0.13")
6.3mm(0.25")
or more
6.8mm(0.27")
or less
3.7(0.15")
TerminalTerminal
Terminal
screw
Crimp
terminal
6.8mm(0.27")
or less
3.7(0.15")
6.8mm(0.27")
or less
3.7(0.15")
6.0mm(0.24")
or more
Terminal
screw
Crimp
terminal
Terminal
6.8mm(0.27")
or less
3.7(0.15")
6.0mm(0.24")
or more

Mitsubishi FX3G Series Specifications

General

Model	FX3G Series
Power Supply	AC 100-240V or DC 24V
Program Capacity	32, 000 steps
Execution Speed	0.21 µs/basic instruction
Communication Options	RS-422, USB, Ethernet
Expansion Modules	Analog, digital, communication
Programming Language	Ladder Logic, Instruction List
Built-in Functions	High-speed counters, pulse output
Analog I/O	Available via expansion modules
