18 Other Extension Devices and Optional Units (External Dimensions and
18.2 Special Adapters
260
FX3G Series Programmable Controllers
User's Manual - Hardware Edition

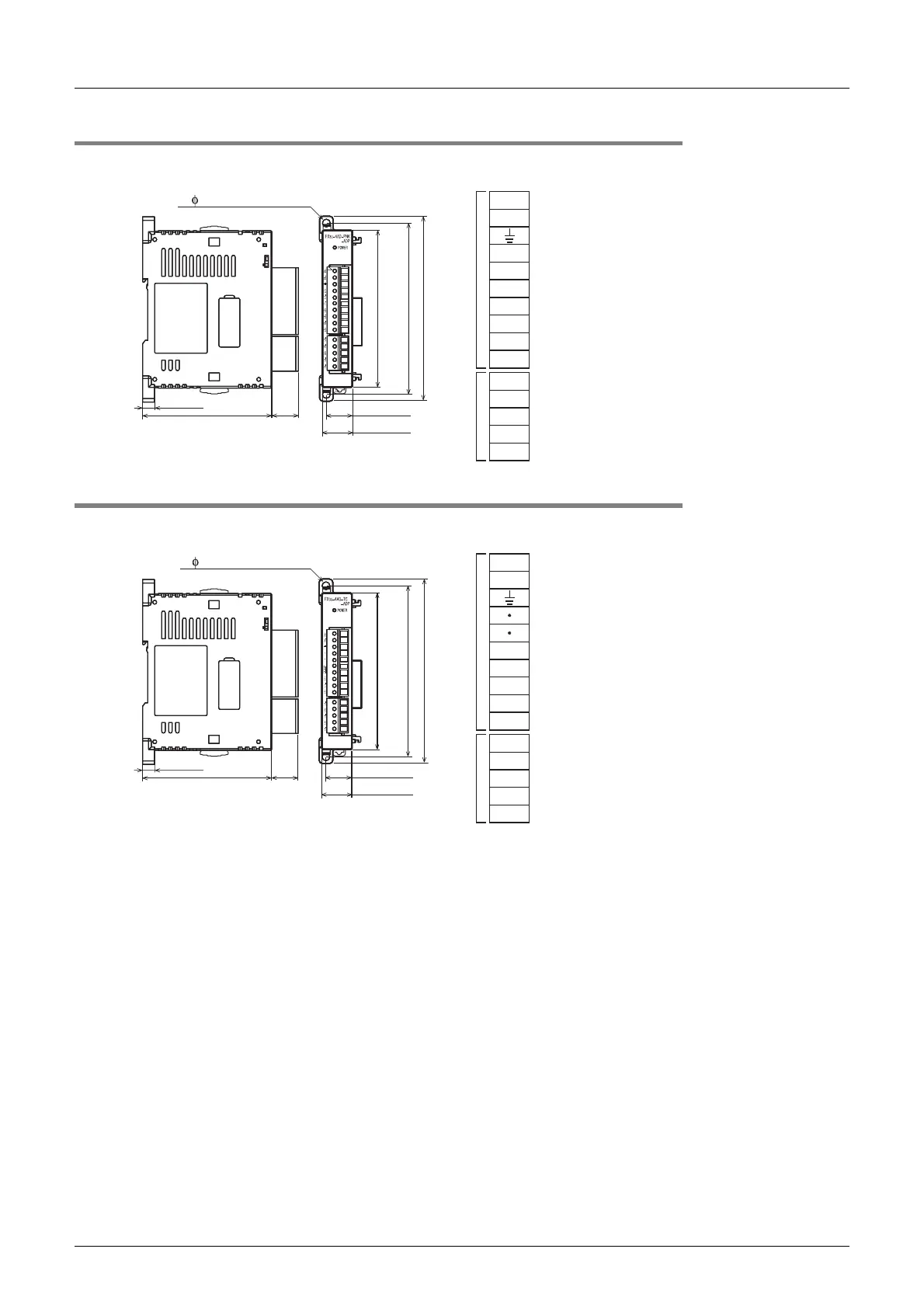

18.2.4 FX3U-4AD-PNK-ADP
External Dimensions, Terminal Layout
MASS(Weight): 0.1kg (0.22lbs)
Installation: DIN rail of 35 mm (1.38") in
width or screws
Accessories: Manual supplied with product
Terminal block: European type
18.2.5 FX3U-4AD-TC-ADP
External Dimensions, Terminal Layout
MASS(Weight): 0.1kg (0.22lbs)
Installation: DIN rail of 35 mm (1.38") in
width or screws
Accessories: Manual supplied with product
Terminal block: European type
7(0.28")
15.1(0.6")
17.6(0.7")
98(3.86")
(mounting hole pitch)
90(3.55")
106(4.18")
Unit:mm (inches)
74
(2.92")
15.5
(0.62")
2- 4.5 mounting holes
24+
24-
L1+
L1-
I1-
L2+
L2-
I2-
L3+
L3-
I3-
L4+
L4-
I4-
10
poles
5
poles
7(0.28")
15.1(0.6")
17.6(0.7")
98(3.86")
(mounting hole pitch)
90(3.55")
106(4.18")
Unit:mm (inches)
74
(2.92")
15.5
(0.62")
2- 4.5 mounting holes
10
poles
5
poles
24+
24-
L1+
L1-
L2+
L2-
L3-
L3-
L4+
I4-
J-type
J-type
