Mitsubishi FX3G Series User Manual

18 Other Extension Devices and Optional Units (External Dimensions and
18.1 Special Function Units/Blocks
254
FX3G Series Programmable Controllers
User's Manual - Hardware Edition

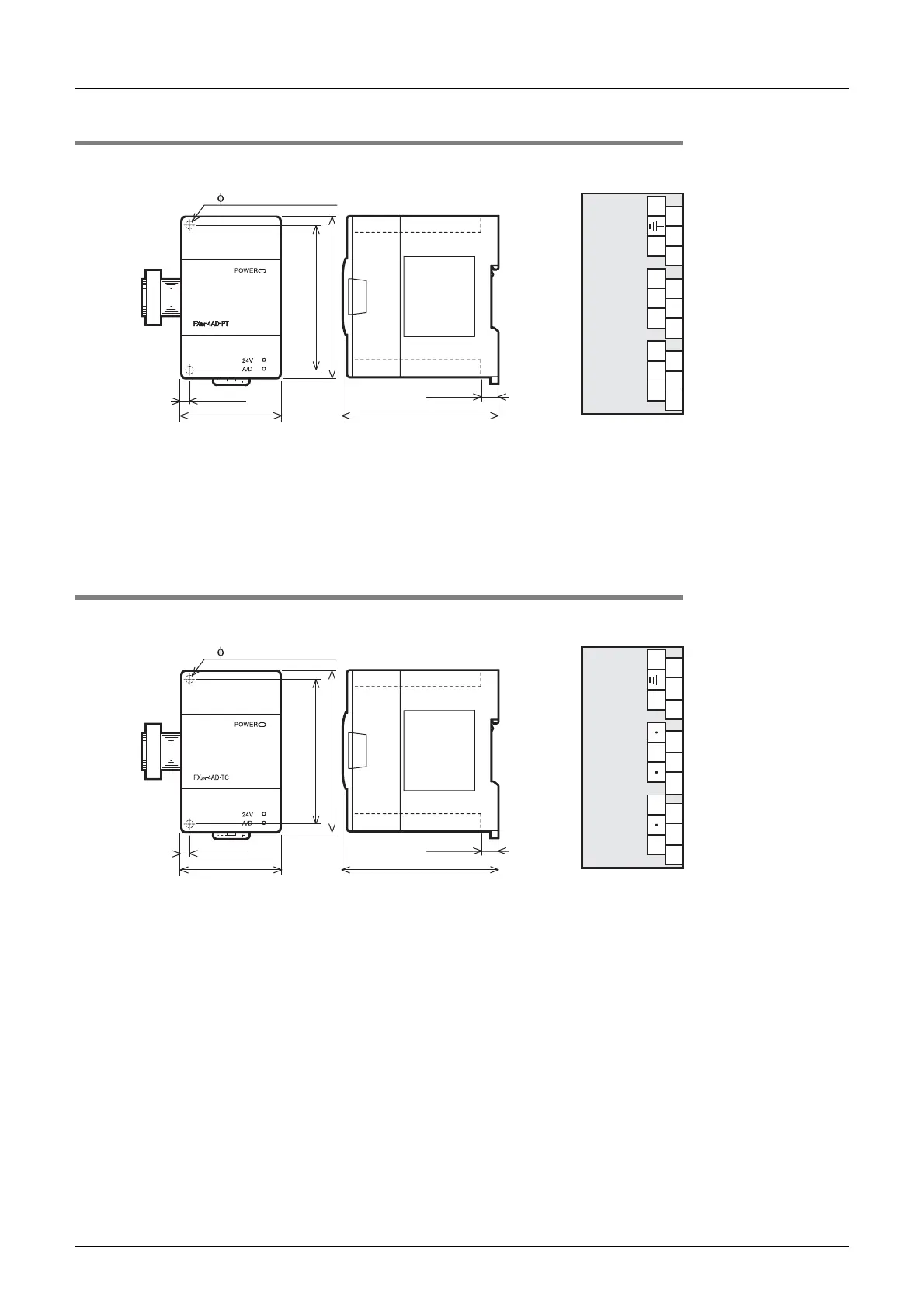

18.1.7 FX2N-4AD-PT
External Dimensions, Terminal Layout
• MASS(Weight): 0.3kg (0.66lbs)
• Installation: DIN rail of 35mm (1.38") in width or screws
• Accessories: Label for indication of special unit/block number, Manual supplied with product
• Terminal block: M3 screws
• The extension cable is already connected to the extension block
18.1.8 FX2N-4AD-TC
External Dimensions, Terminal Layout
• MASS(Weight): 0.3kg (0.66lbs)
• Installation: DIN rail of 35mm (1.38") in width or screws
• Accessories: Label for indication of special unit/block number, Manual supplied with product
• Terminal block: M3 screws
• The extension cable is already connected to the extension block
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
55(2.17")
2-
4.5 mounting holes
24+
24- I- L-
L+
I- L- I-
L+ L+
L- I- L-
L+
CH1 CH2 CH3 CH4
FG FG FG
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
55(2.17")
2-
4.5 mounting holes
24+
24-
SLD
L-
L+
SLD
L-
SLD
L+ L+
L-
SLD
L-
L+
CH1 CH2 CH3 CH4

Mitsubishi FX3G Series Specifications

General

Model	FX3G Series
Power Supply	AC 100-240V or DC 24V
Program Capacity	32, 000 steps
Execution Speed	0.21 µs/basic instruction
Communication Options	RS-422, USB, Ethernet
Expansion Modules	Analog, digital, communication
Programming Language	Ladder Logic, Instruction List
Built-in Functions	High-speed counters, pulse output
Analog I/O	Available via expansion modules
