Mitsubishi FX3G Series - External Dimensions

16 Input/Output Extension Blocks
16.9 FX2N-8EYT-ESS/UL, FX2N-16EYT-ESS/UL (Transistor Output)
236
FX3G Series Programmable Controllers
User's Manual - Hardware Edition

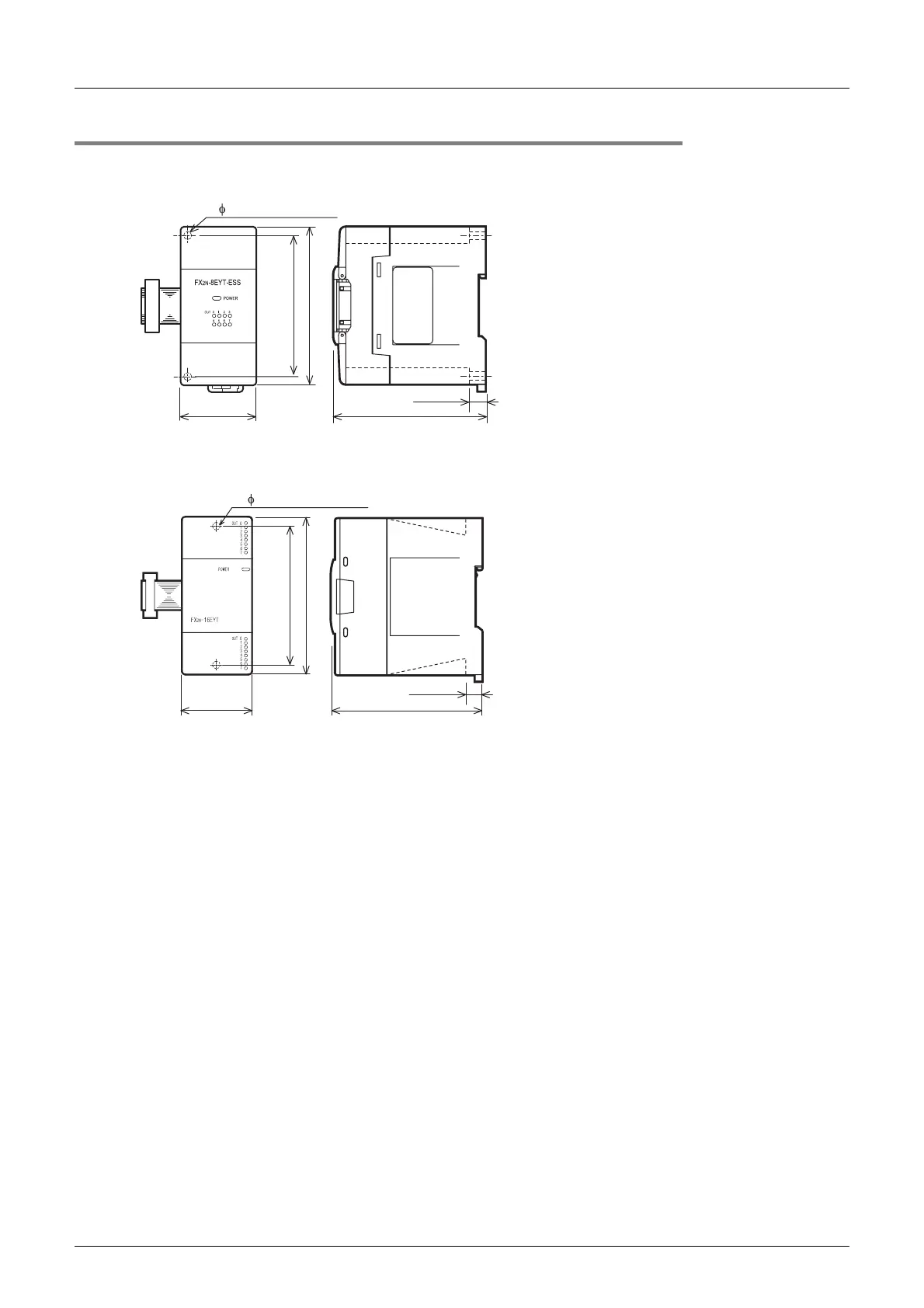

16.9.3 External dimensions
FX2N-8EYT-ESS/UL
FX
2N-16EYT-ESS/UL
43(1.7")
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
9(0.36")
2- 4.5 mounting holes
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
9(0.36")
40(1.58")
2- 4.5 mounting holes
