16 Input/Output Extension Blocks
16.5 FX2N-8EX, FX2N-16EX and FX2N-16EX-C
223
FX3G Series Programmable Controllers
User's Manual - Hardware Edition
11
High-Speed
Counters
12
Output Wiring
13
Wiring for
Various Uses
14
Test Run,
Maintenance,
Troubleshooting
15
Input/Output
Powered
Extension Units
16
Input/Output
Extension
Blocks
17
Extension
Power Supply
Unit
18
Other Extension
Units and
Options
19
Display Module
20
Terminal Block

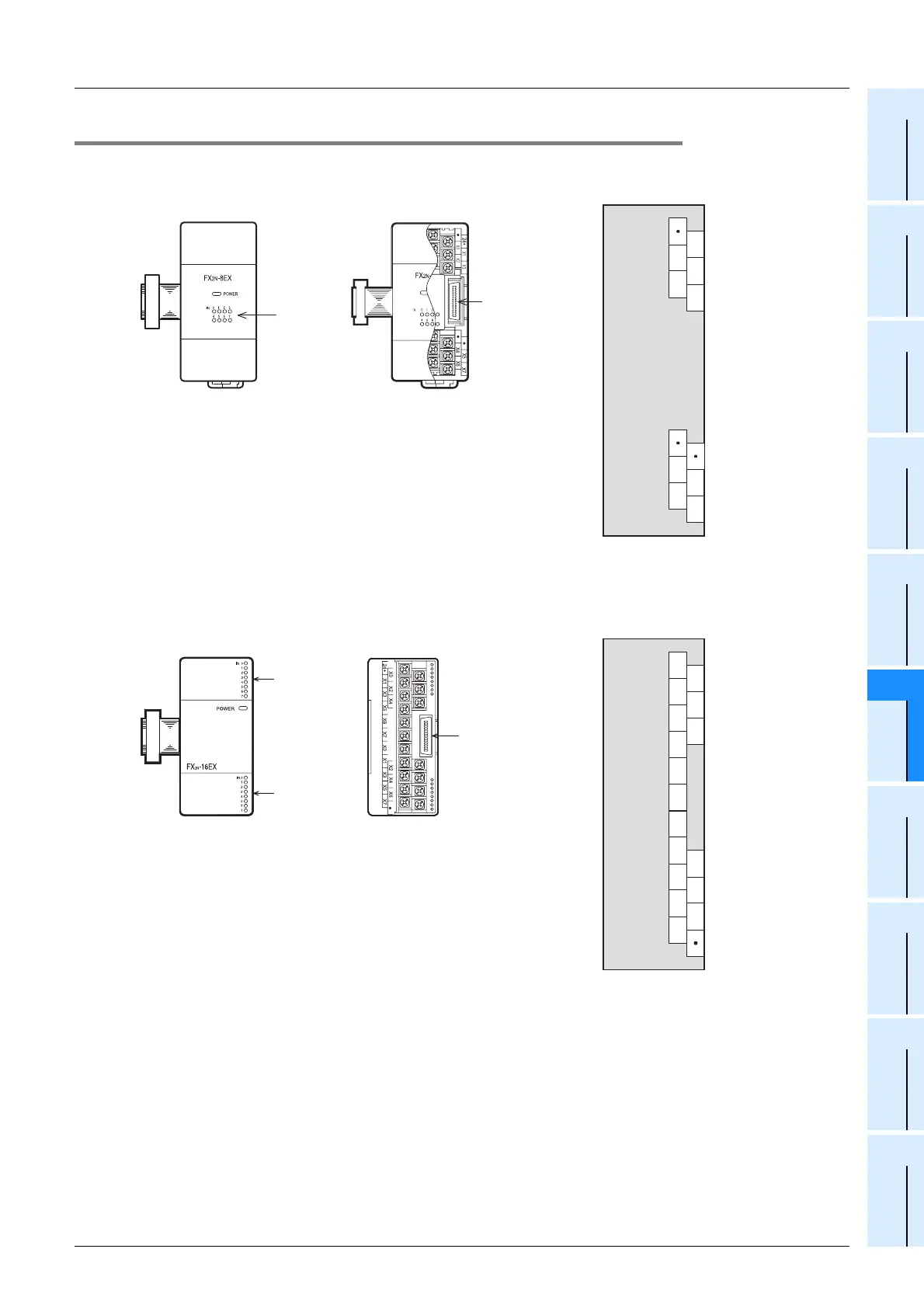

16.5.2 Parts identification and terminal arrangement
FX2N-8EX
FX
2N-16EX
When an input (X) number is assigned, 8 points on the upper side will be used for the lower input numbers,
and 8 points on the lower side will be used for the higher input numbers.
With cover
Input
indicator
lamps
(LED lamps)
Without cover
Rear line
extension
connector
24+
X0
X1
X2
X3
X4
X5
X6
X7
With cover
Input indicator
lamps
(LED lamps)
Input indicator
lamps
(LED lamps)
Without cover
Rear line
extension
connector
X0
24+ X1
X2
X3
X4
X5 X7X6 X0 X1
X2
X3
X4
X5
X6
X7
