Mitsubishi FX3G Series - Installation of Main Unit

To Next Page

To Previous Page

8 Installation In Enclosure

8.4 Procedures for Installing on and Detaching from DIN Rail

FX3G Series Programmable Controllers

User's Manual - Hardware Edition

8.4.2 Installation of main unit

The main unit must be installed before installing a special adapter or connector conversion adapter on the

enclosure.

→ For the connection procedure, refer to Subsection 8.6.3 and Subsection 8.6.4.

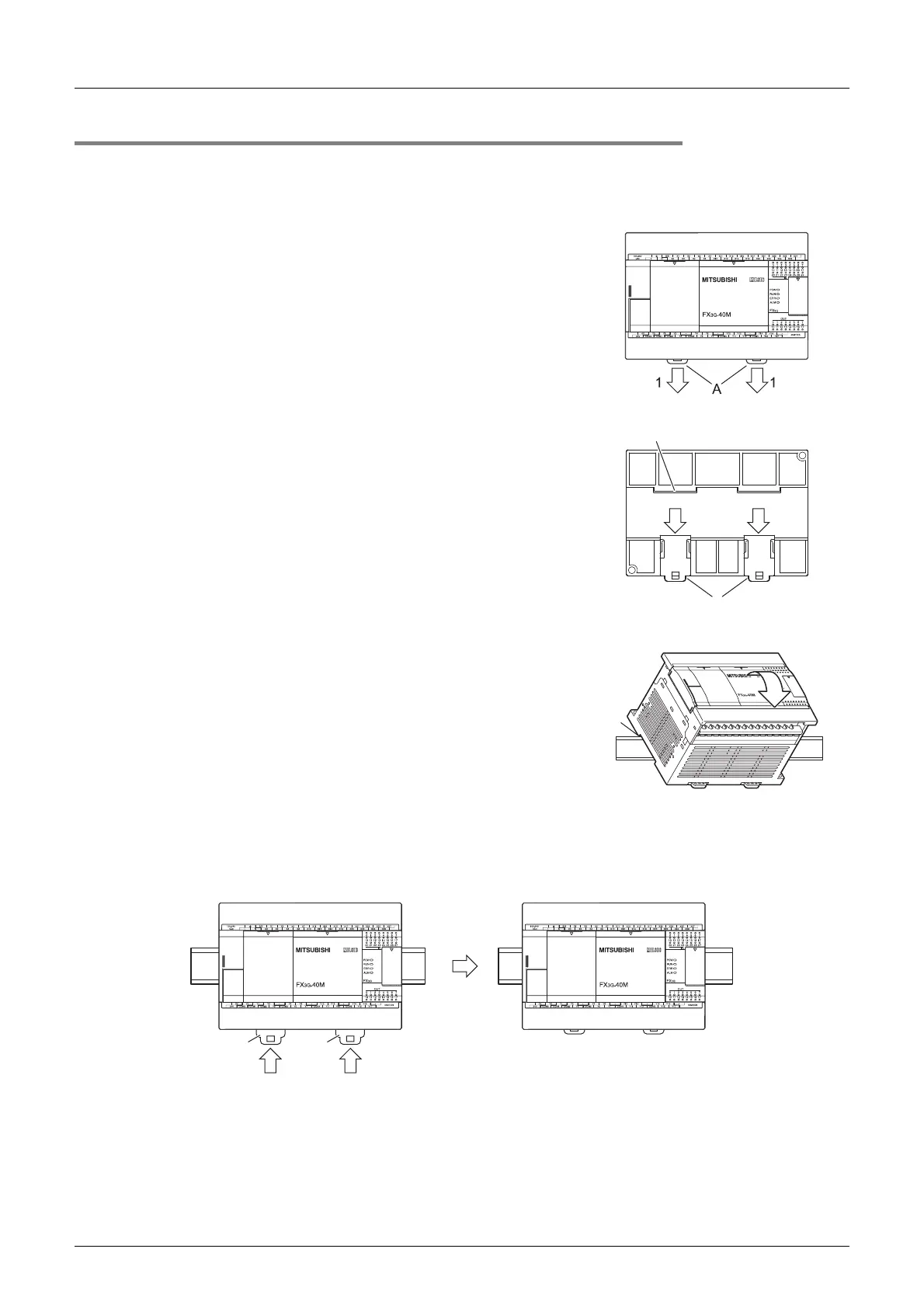

1 Push out all DIN rail mounting hooks (A in the

right figure).

2 Fit the upper edge of the DIN rail mounting

groove (C in the right figure) onto the DIN rail.

3 Lock the DIN rail mounting hooks (D in the following figure) while pressing

the PLC against the DIN rail.

1 1
