7 Assignment of Input/Output Numbers and Unit Numbers
7.4 "Station No." Label of Expansion Board (FX3G-485-BD)
80
FX3G Series Programmable Controllers
User's Manual - Hardware Edition
7.4 "Station No." Label of Expansion Board (FX3G-485-BD)

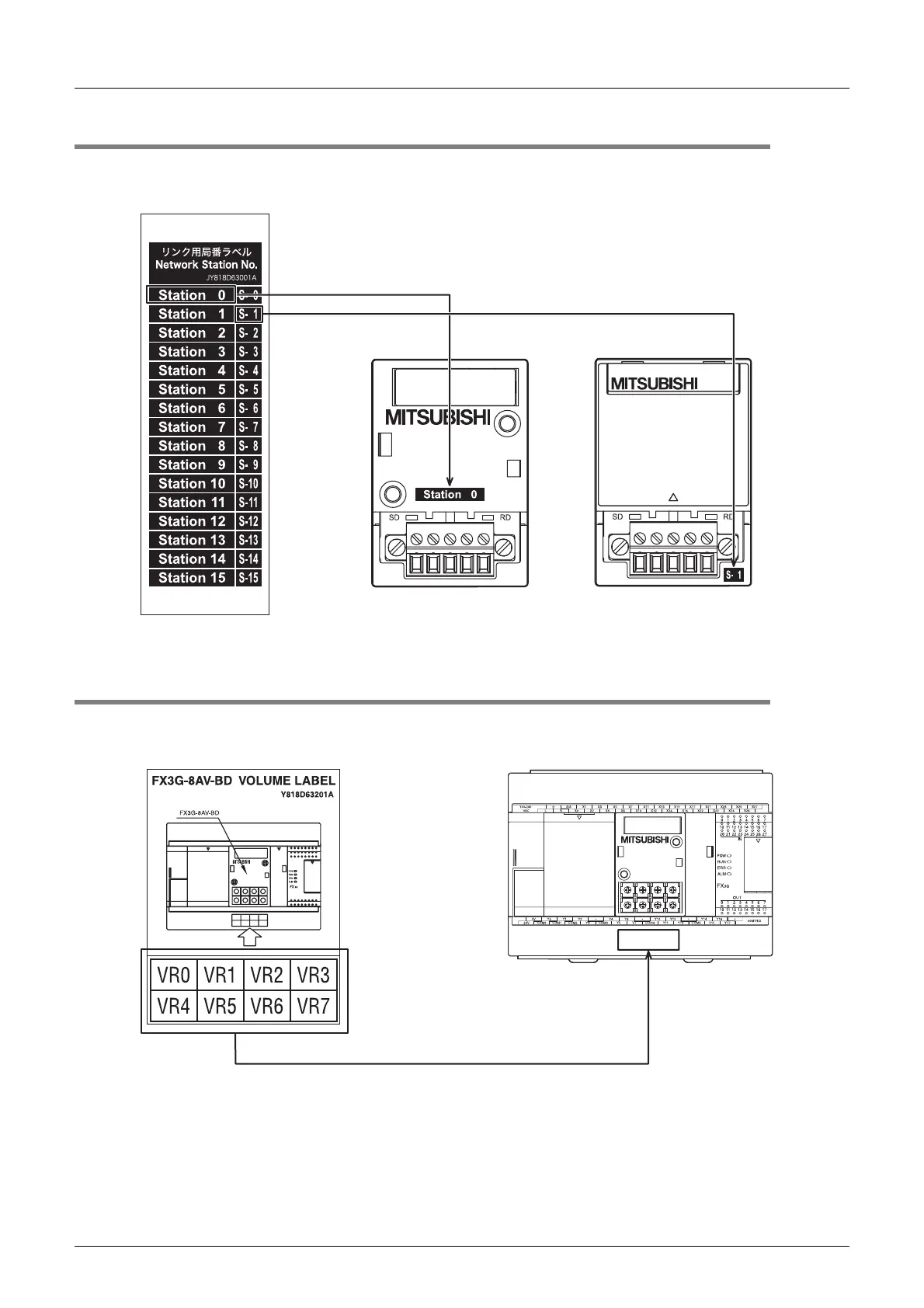

The "station No." label is packed together with the FX3G-485-BD. Place it in a position where it can be seen
easily for simple reference (as shown in the figure below).
7.5 Trimmer Layout Label of Expansion Board (FX3G-8AV-BD)
The trimmer layout label is packed together with the FX3G-8AV-BD.
Adhere it in a position where it can be seen easily for quick reference (as shown in the figure below).
when the memory cassette
is not used together
when the memory cassette
is used together

Mitsubishi FX3G Series Specifications

General

Model	FX3G Series
Power Supply	AC 100-240V or DC 24V
Program Capacity	32, 000 steps
Execution Speed	0.21 µs/basic instruction
Communication Options	RS-422, USB, Ethernet
Expansion Modules	Analog, digital, communication
Programming Language	Ladder Logic, Instruction List
Built-in Functions	High-speed counters, pulse output
Analog I/O	Available via expansion modules
