5 Version Information and Peripheral Equipment Connectability
5.2 Programming Tool Applicability
46
FX3G Series Programmable Controllers
User's Manual - Hardware Edition
5.2.4 Cautions on connecting peripheral equipment by way of expansion board or special
adapter.
When connecting peripheral equipment (programming tool or GOT [CPU direct connection]) by way of the
FX
3G-232-BD, FX3G-422-BD or FX3U-232ADP(-MB), set the connection channel (CH1 or CH2) as follows. If
the connection channel is not specified with the status below, communication error may occur in the
connected peripheral equipment.
→ For details, refer to the Data Communication Edition.
- Set to "K0" the special data register for communication format setting of the channel connecting the
peripheral equipment (CH1: D8400 or D8120, CH2: 8420).

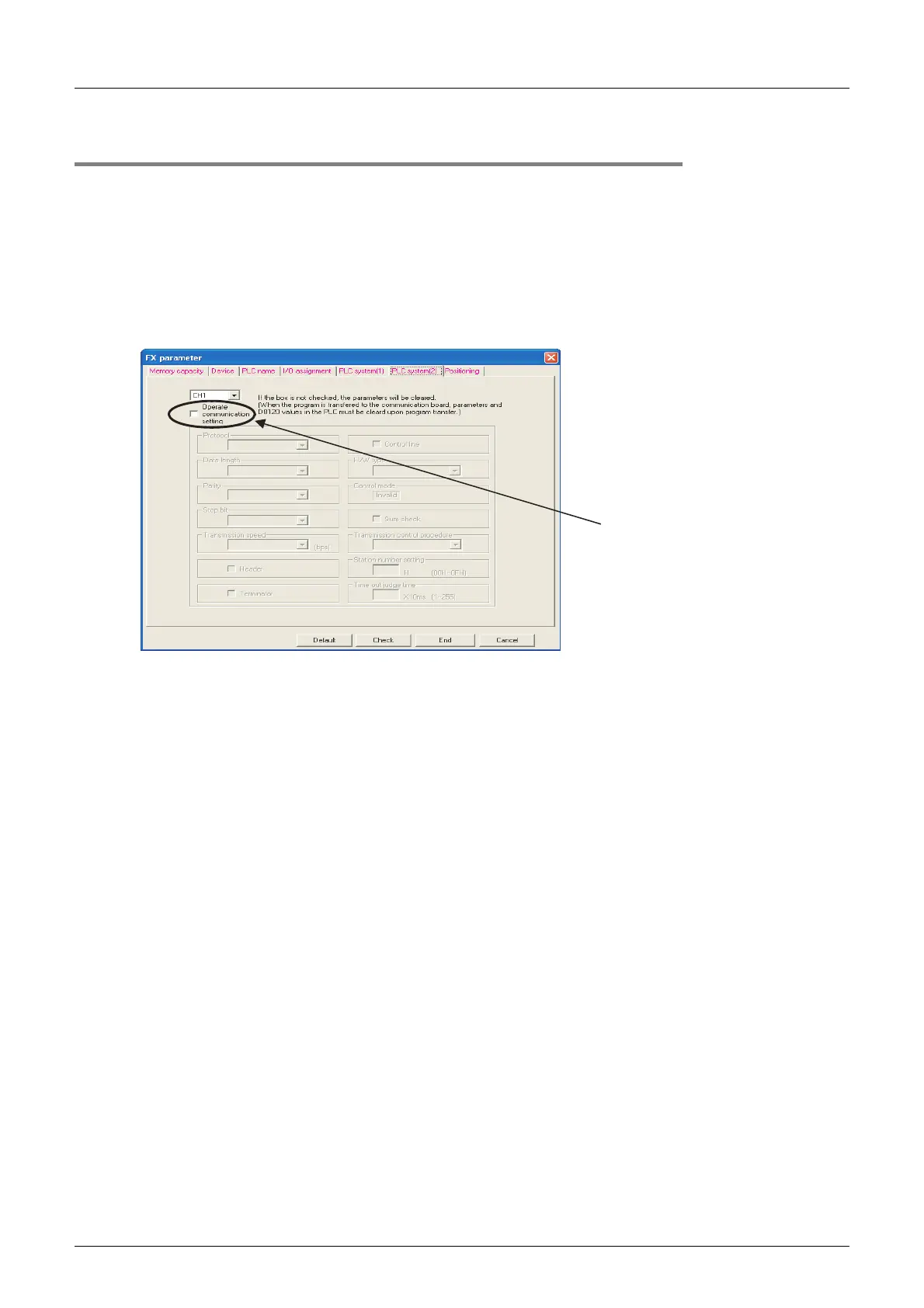

- Set the communication parameter "PLC system [2]" of the channel connecting the peripheral equipment
to "Not set" (as shown in the window below).
Leave this unchecked.

Mitsubishi FX3G Series Specifications

General

Model	FX3G Series
Power Supply	AC 100-240V or DC 24V
Program Capacity	32, 000 steps
Execution Speed	0.21 µs/basic instruction
Communication Options	RS-422, USB, Ethernet
Expansion Modules	Analog, digital, communication
Programming Language	Ladder Logic, Instruction List
Built-in Functions	High-speed counters, pulse output
Analog I/O	Available via expansion modules
