Mitsubishi FX3G Series User Manual

14 Test Operation, Adjustment, Maintenance and Troubleshooting
14.1 Preparation for Test Operation
167
FX3G Series Programmable Controllers
User's Manual - Hardware Edition
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
Input/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block
14.1.4 Writing of program and program check [power ON and PLC stopped]
1 Turn on the PLC power.
Make sure that the RUN/STOP switch of the PLC is set to STOP, and turn the power on.
2 Check the program.
Check for circuit errors and grammatical errors with the program check function of the program-
ming tool.
3 Transfer the sequence program.
Write the program to the PLC with the programming tool.

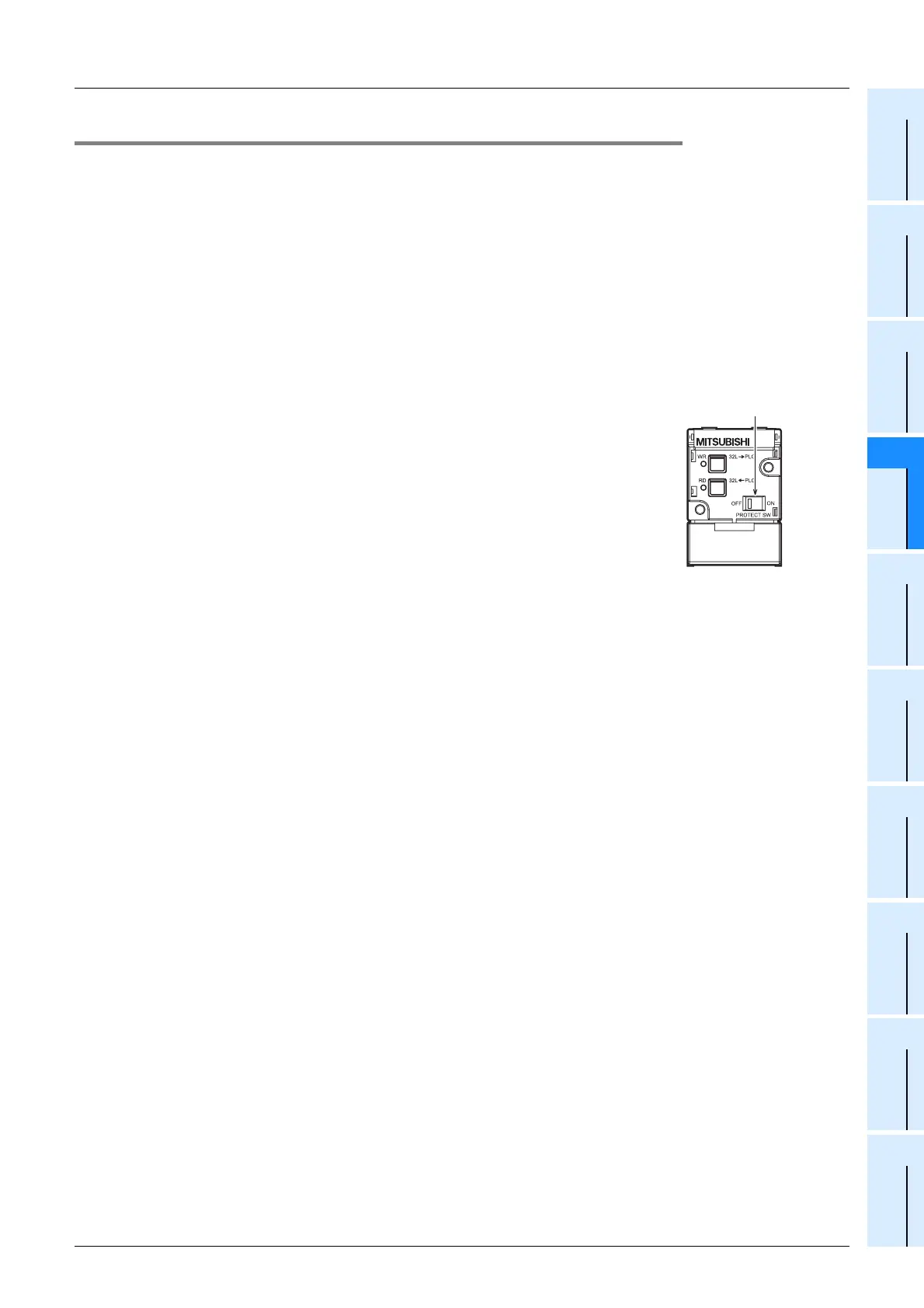

When the memory cassette is used
Make sure to set the PROTECT switch of the memory cassette to
OFF (shown right).
→ For details on handling of the memory cassette, refer to Chapter 21.
4 Verify the sequence program.
Verify that the program has been correctly written to the PLC.
5 Execute PLC diagnosis.
Check for errors in the PLC main body with the PLC diagnostic function of the programming tool.
→ For details on the PLC diagnosis with the display module or GX Developer, refer to Section 14.6.
PROTECT switch

Mitsubishi FX3G Series Specifications

General

Model	FX3G Series
Power Supply	AC 100-240V or DC 24V
Program Capacity	32, 000 steps
Execution Speed	0.21 µs/basic instruction
Communication Options	RS-422, USB, Ethernet
Expansion Modules	Analog, digital, communication
Programming Language	Ladder Logic, Instruction List
Built-in Functions	High-speed counters, pulse output
Analog I/O	Available via expansion modules
