Mitsubishi FX3G Series User Manual

16 Input/Output Extension Blocks
16.9 FX2N-8EYT-ESS/UL, FX2N-16EYT-ESS/UL (Transistor Output)
235
FX3G Series Programmable Controllers
User's Manual - Hardware Edition
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
Input/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

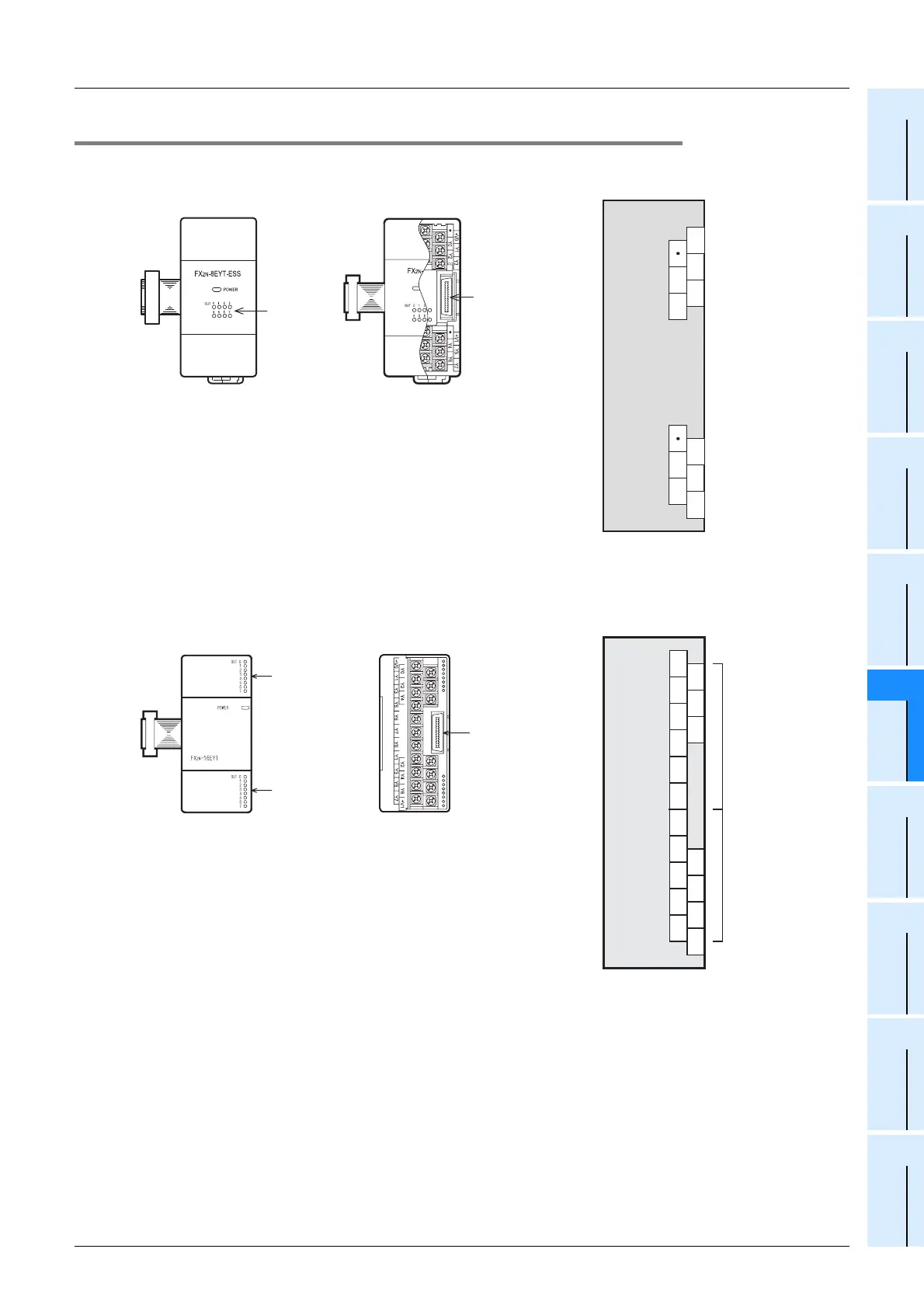

16.9.2 Parts identification and terminal arrangement
FX2N-8EYT-ESS/UL
FX
2N-16EYT-ESS/UL
When an output (Y) number is assigned, 8 points on the upper side will be used for the lower output numbers,
and 8 points on the lower side will be used for the higher output numbers.
With cover
Output
indicator
lamps
(LED lamps)
Without cover
Rear line
extension
connector
Y1
Y0
Y3
Y2 Y4
Y5
Y6
+V0 +V1
Y7
With cover
Output indicator
lamps
(LED lamps)
Output indicator
lamps
(LED lamps)
Without cover
Rear line
extension
connector
Y0
+V0 Y1
Y2
Y3
Y4
Y5 Y7Y6 Y0 Y1
Y2
Y3
Y4
Y5
Y6
Y7
+V1
Lower
numbers
Higher
numbers
