Mitsubishi FX3G Series User Manual

8 Installation In Enclosure
8.4 Procedures for Installing on and Detaching from DIN Rail
92
FX3G Series Programmable Controllers
User's Manual - Hardware Edition

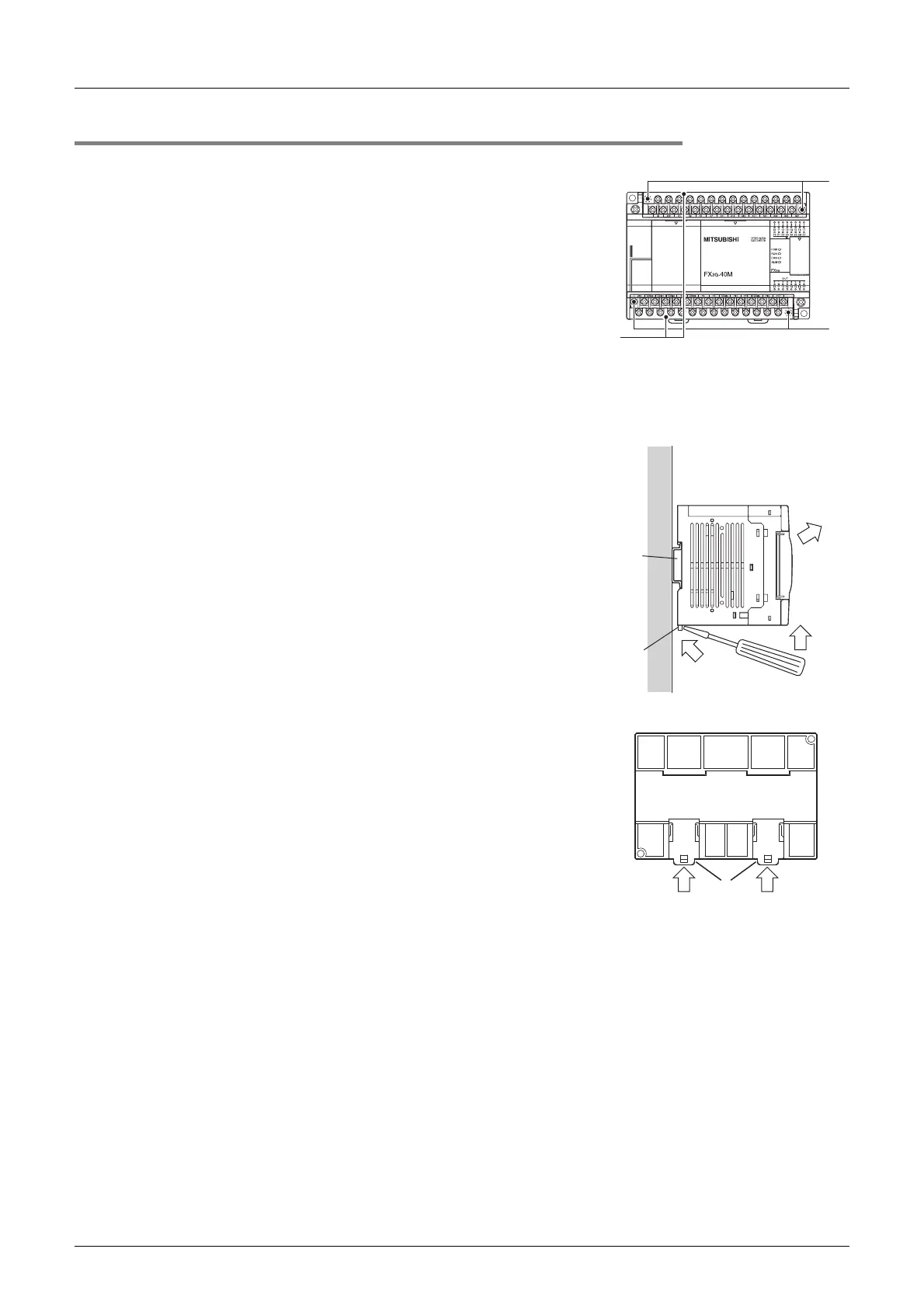

8.4.4 Removal of main unit
1 Open the terminal block cover, and remove the
lower terminal block cover (A in the right figure).
2 Gradually loosen the left and right terminal block
mounting screws (B in the right figure), and
remove the terminal blocks.
→ For anchoring of the terminal block, refer to Subsection 9.1.2.
3 Disconnect the extension cables and the con-
necting cables (including expansion board and
special adapters).
4 Insert the tip of a flathead screwdriver into the
hole of the DIN rail mounting hook (C in the right
figure).
• This step also applies for the DIN rail mounting hooks of the special
adapters.
5 Move the flathead screwdriver as shown in the
right figure to draw out the DIN rail mounting
hooks of all devices.
6 Remove the product from the DIN rail (D in the
right figure).
7 Push in the DIN rail mounting hooks (E in the
right figure).
• For input/output powered extension units, 8-point type input/output
extension blocks and special function blocks, this operation is
unnecessary.
B
B
A
D
C
4
5
6
7 7
E

Mitsubishi FX3G Series Specifications

General

Model	FX3G Series
Power Supply	AC 100-240V or DC 24V
Program Capacity	32, 000 steps
Execution Speed	0.21 µs/basic instruction
Communication Options	RS-422, USB, Ethernet
Expansion Modules	Analog, digital, communication
Programming Language	Ladder Logic, Instruction List
Built-in Functions	High-speed counters, pulse output
Analog I/O	Available via expansion modules
