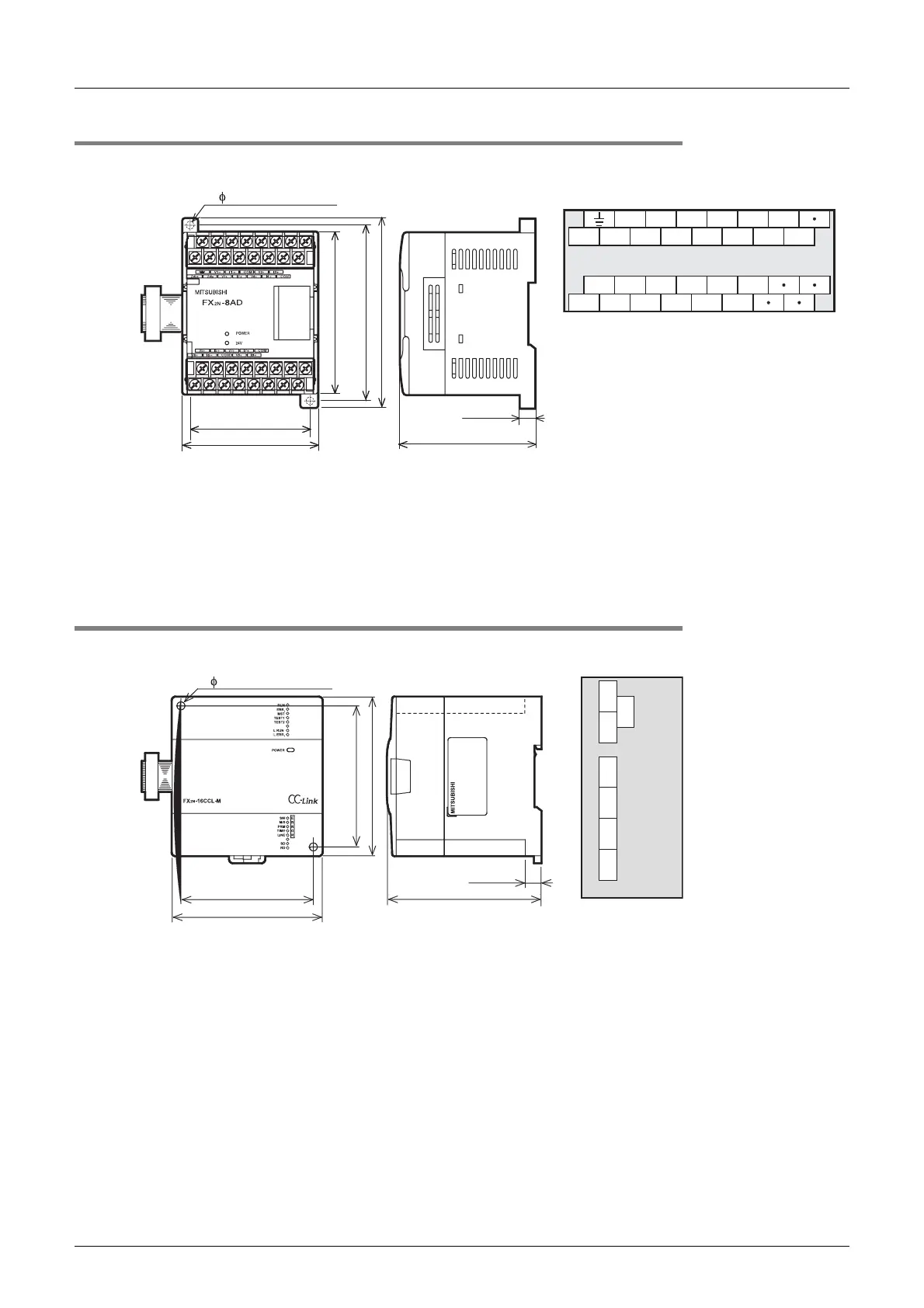

18.1.11 FX2N-8AD
External Dimensions, Terminal Layout
• MASS(Weight): 0.4kg (0.88lbs)
• Installation: DIN rail of 35mm (1.38") in width or screws
• Accessories: Label for indication of special unit/block number, Manual supplied with product
• Terminal block: M3.5 screws
• The extension cable is already connected to the extension block
18.1.12 FX2N-16CCL-M
External Dimensions, Terminal Layout
• MASS(Weight): 0.4kg (0.88lbs)
• Installation: DIN rail of 35mm (1.38") in width or screws
• Accessories: Label for indication of special unit/block number,
Terminal resistor : 2 resistors for standard cable / 2 resistors for high-performance cable,
Manual supplied with product
• Terminal block: M3 screw for power supply terminal, M3.5 screw for signal terminal
• The extension cable is already connected to the extension block
75(2.96")
8(0.32")
98(3.86")
(mounting hole pitch)
105(4.14")
90(3.55")
Unit:mm (inches)
75(2.96")
67(2.64")
(mounting hole pitch)
2- 4.5 mounting holes
24+ 24-
V1+ I1+
V2+ I2+
COM1
COM2
V3+
V4+
I3+
I4+
COM3
COM4
V5+ I5+
I6+
COM6
COM5
V7+
V8+
I7+
I8+
COM7
COM8
V6+
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
75(2.96")
(mounting hole pitch)
9(0.36")
85(3.35")
2-
4.5 mounting holes
24+
24-
SLDFG DG DA DB
