Mitsubishi FX3G Series - When BCD Instructions Are Used

To Next Page

To Previous Page

13 Examples of Wiring for Various Uses

13.4 Seven Segment with Latch [SEGL Instructions

162

FX3G Series Programmable Controllers

User's Manual - Hardware Edition

13.4.2 When BCD instructions are used

This subsection gives examples of wiring for displaying the current value of D100 on the 2-digit 7-segment

display.

1. Main unit

Example of program

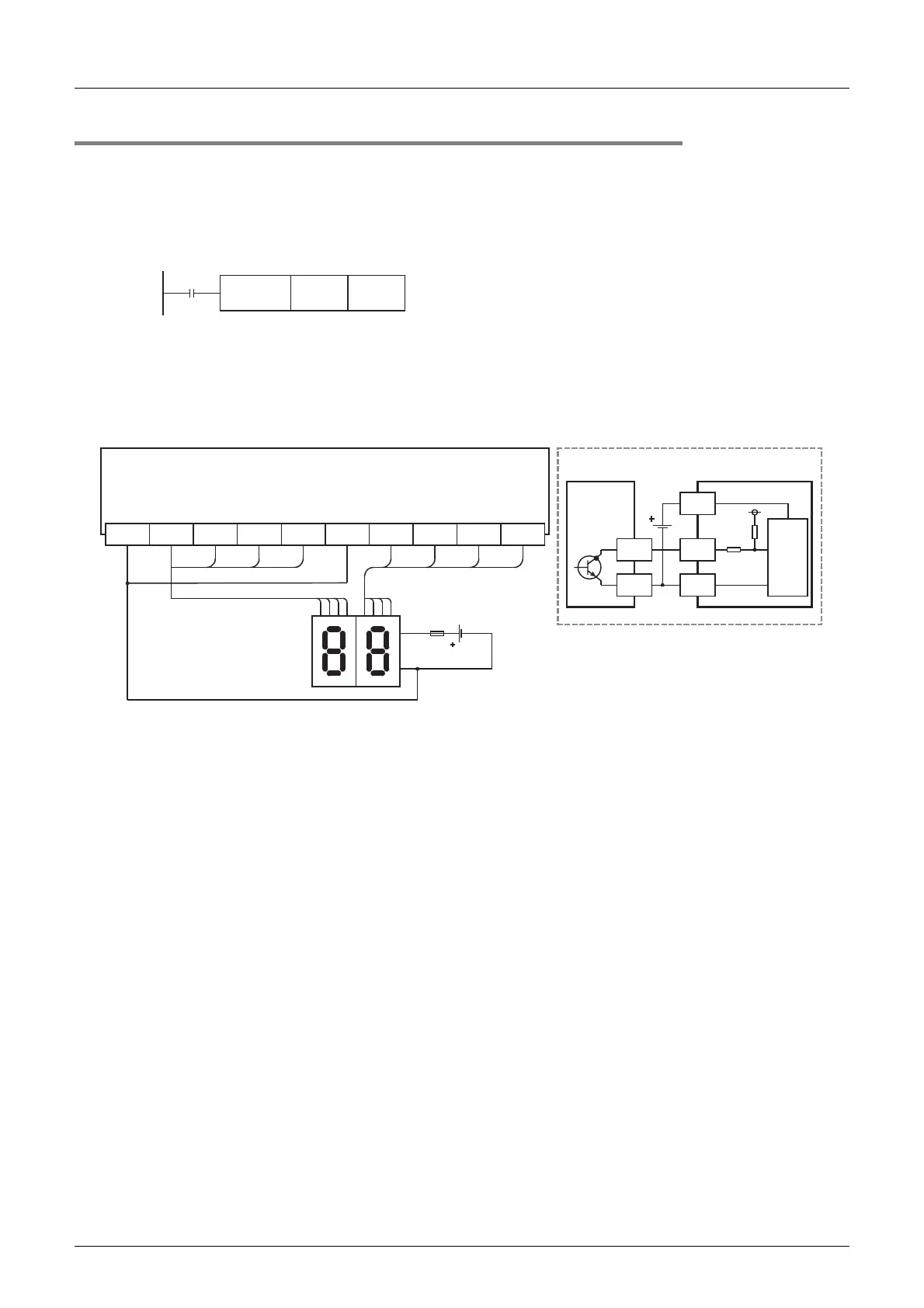

Example of wiring

1) In the case of sink wiring

When inputs are used for both sink and source and outputs are the transistor sink type in the used main

unit

M8000

D100 K2Y010BCD

Transistor output (sink)

Main unit (Ex: FX

-40MT/ES)

Signal

Internal

circuit

7-segment display

COM1

PLC

7-segment display to be used for sink wiring

(in the case of transistor output)

Y010COM4 Y011 Y012 Y013 Y014 Y015 Y016 Y017

1248 124

8421 8421

COM5
