Mitsubishi FX3G Series User Manual

13 Examples of Wiring for Various Uses
13.4 Seven Segment with Latch [SEGL Instructions
163
FX3G Series Programmable Controllers
User's Manual - Hardware Edition
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
Input/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block
2. Input/output powered extension unit

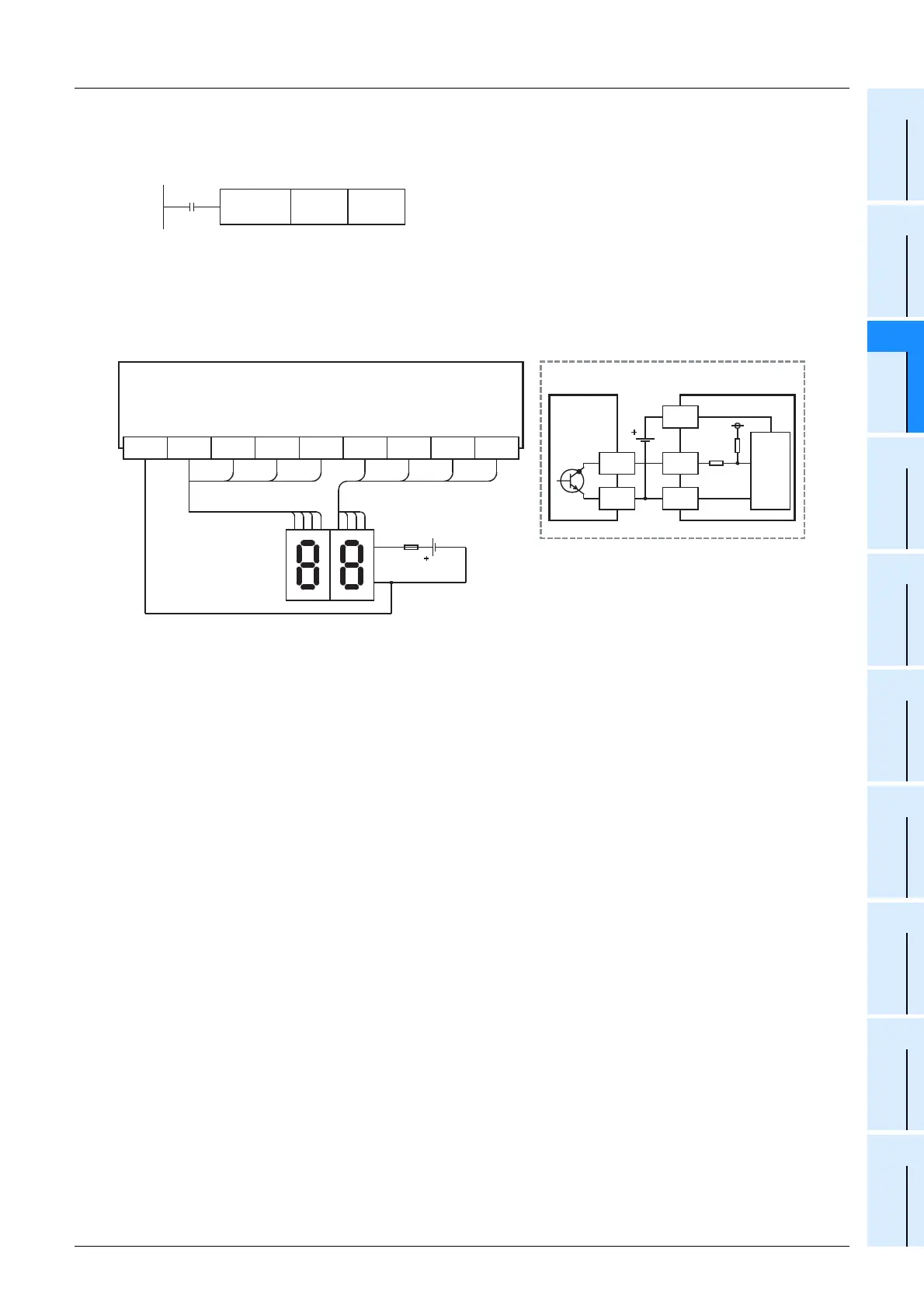

Example of program
Example of wiring
1) In the case of sink wiring
When inputs are used for sink only and outputs are the transistor sink type in the used input/output
powered extension unit
M8000
D100 K2Y020BCD
Signal
-
Internal
circuit
7-segment display
+
Y
COM1
PLC
7-segment display to be used for sink wiring
(in the case of transistor output)
Y020COM1 Y021 Y022 Y023 Y024 Y025 Y026 Y027
12481248
8421 8421
Transistor output (sink)
Input/output powered extension unit
FX
2N -32ET
FX
2N -48ET
