20.2 External Dimensions and Component Names
316
FX3G Series Programmable Controllers
User's Manual - Hardware Edition

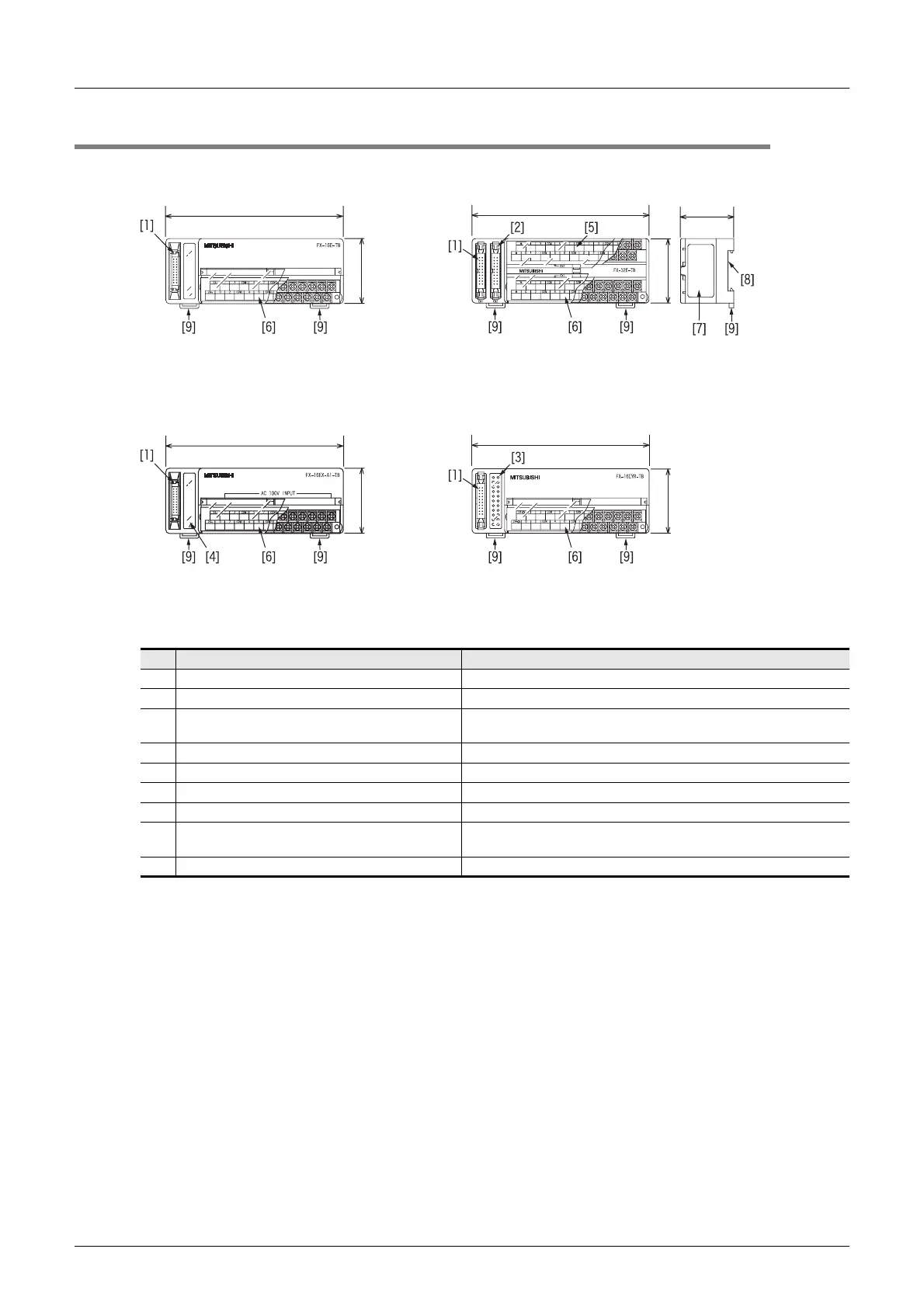

20.2 External Dimensions and Component Names
FX-16E-TB FX-32E-TB
FX-16EYR-TB
FX-16EX-A1-TB FX-16EYS-TB
FX-16EYT-TB, FX-16EYT-H-TB
Units: mm (inches)
Accessories: Input/output No. labels, terminal block arrangement
cards
No. Name Remarks
[1] CN1 connector -
[2] CN2 connector Present at FX-32E-TB.
[3] Operation indicator LED
Present at FX-16EYR-TB, FX-16EYS-TB, FX-16EYT-TB,
FX-16EYT-H-TB.
[4] POWER LED Present at FX-16EX-A1-TB.
[5] CN2 terminal block (M3.5 screws) Present at FX-32E-TB.
[6] CN1 terminal block (M3.5 screws) -
[7] Nameplate -
[8]
DIN rail mounting groove
(DIN rail width: 35mm(1.38"))
-
[9] DIN rail mounting hook -
150(5.91")
55(2.17")
150(5.91") 45(1.78")
55(2.17")
150(5.91")
55(2.17")
150(5.91")
55(2.17")
