18 Other Extension Devices and Optional Units (External Dimensions and
18.2 Special Adapters
261
FX3G Series Programmable Controllers
User's Manual - Hardware Edition
11
High-Speed
Counters
12
Output Wiring
13
Wiring for
Various Uses
14
Test Run,
Maintenance,
Troubleshooting
15
Input/Output
Powered
Extension Units
16
Input/Output
Extension
Blocks
17
Extension
Power Supply
Unit
18
Other Extension
Units and
Options
19
Display Module
20
Terminal Block

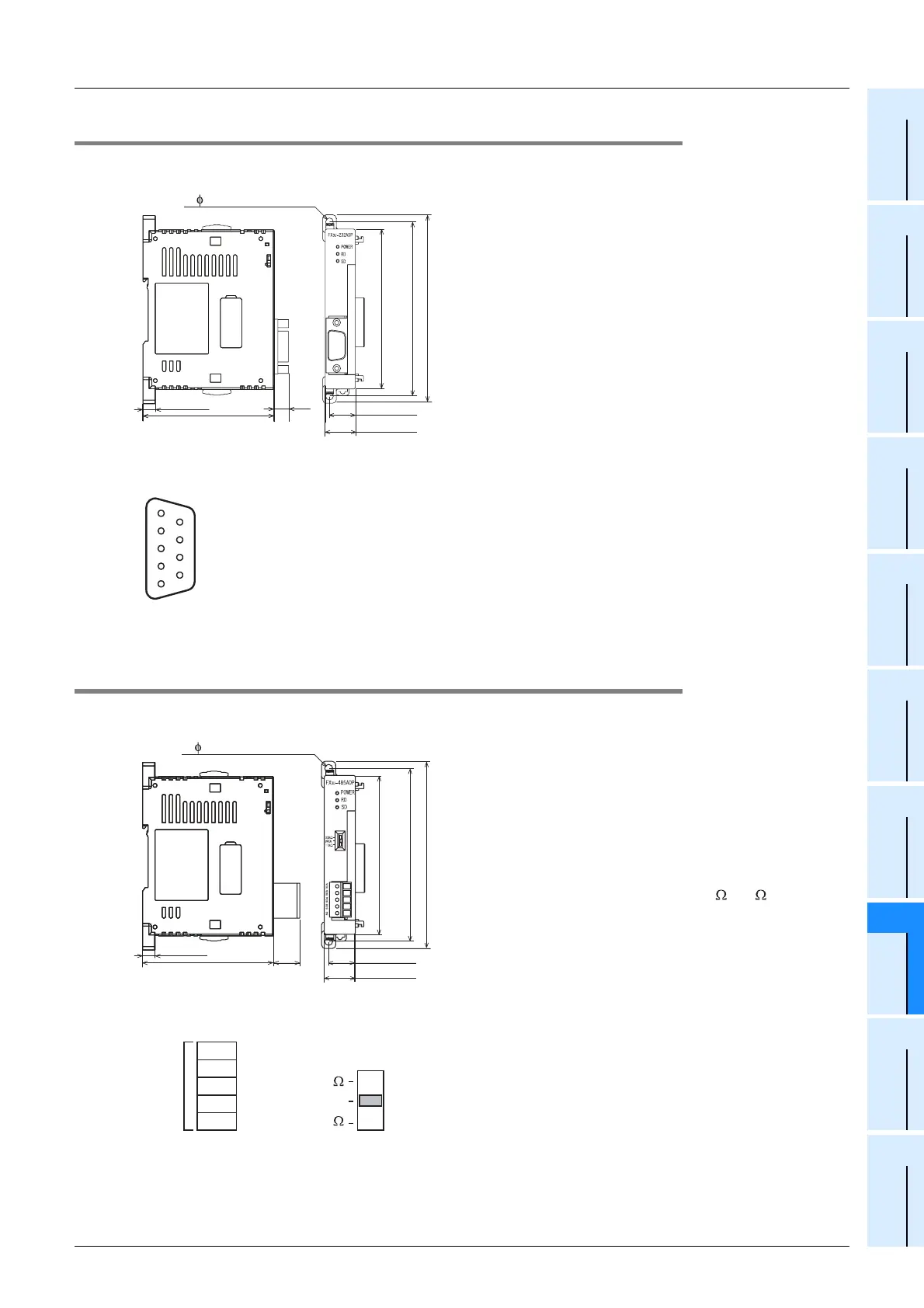

18.2.6 FX3U-232ADP(-MB)
External Dimensions
MASS(Weight): 80g (0.18lbs)
Installation: DIN rail of 35 mm (1.38") in
width or screws
Accessories: Manual supplied with product
Connector: RS-232C
(D-SUB 9-pin, male)
Terminal Layout
18.2.7 FX3U-485ADP(-MB)
External Dimensions
MASS(Weight): 80g (0.18lbs)
Installation: DIN rail of 35 mm (1.38") in
width or screws
Accessories: Label for indication of link
station number,
Manual supplied with product
Terminal block: European type
Terminal resistance: 330 /110 , built-in
Terminal Layout
7(0.28")
15.1(0.6")
17.6(0.7")
98(3.86")
(mounting hole pitch)
90(3.55")
106(4.18")
Unit:mm (inches)
74
(2.92")
7.5
(0.3")
2- 4.5 mounting holes
9
8
7
6
5
4
3
2
1
1 CD(DCD)
2 RD(RXD)
3 SD(TXD)
4 ER(DTR)
5 SG(GND)
6 DR(DSR)
7 Not used
8
9
Not used
Not used
7(0.28")
15.1(0.6")
17.6(0.7")
98(3.86")
(mounting hole pitch)
90(3.55")
106(4.18")
Unit:mm (inches)
74
(2.92")
15.5
(0.62")
2- 4.5 mounting holes
RDA
RDB
SDA
SDB
SG
5 poles
110
Terminal resistance
setting switch
330
OPEN
