Mitsubishi FX3G Series User Manual

13 Examples of Wiring for Various Uses
13.3 Input Matrix [MTR Instructions (FNC 52)]
159
FX3G Series Programmable Controllers
User's Manual - Hardware Edition
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
Input/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

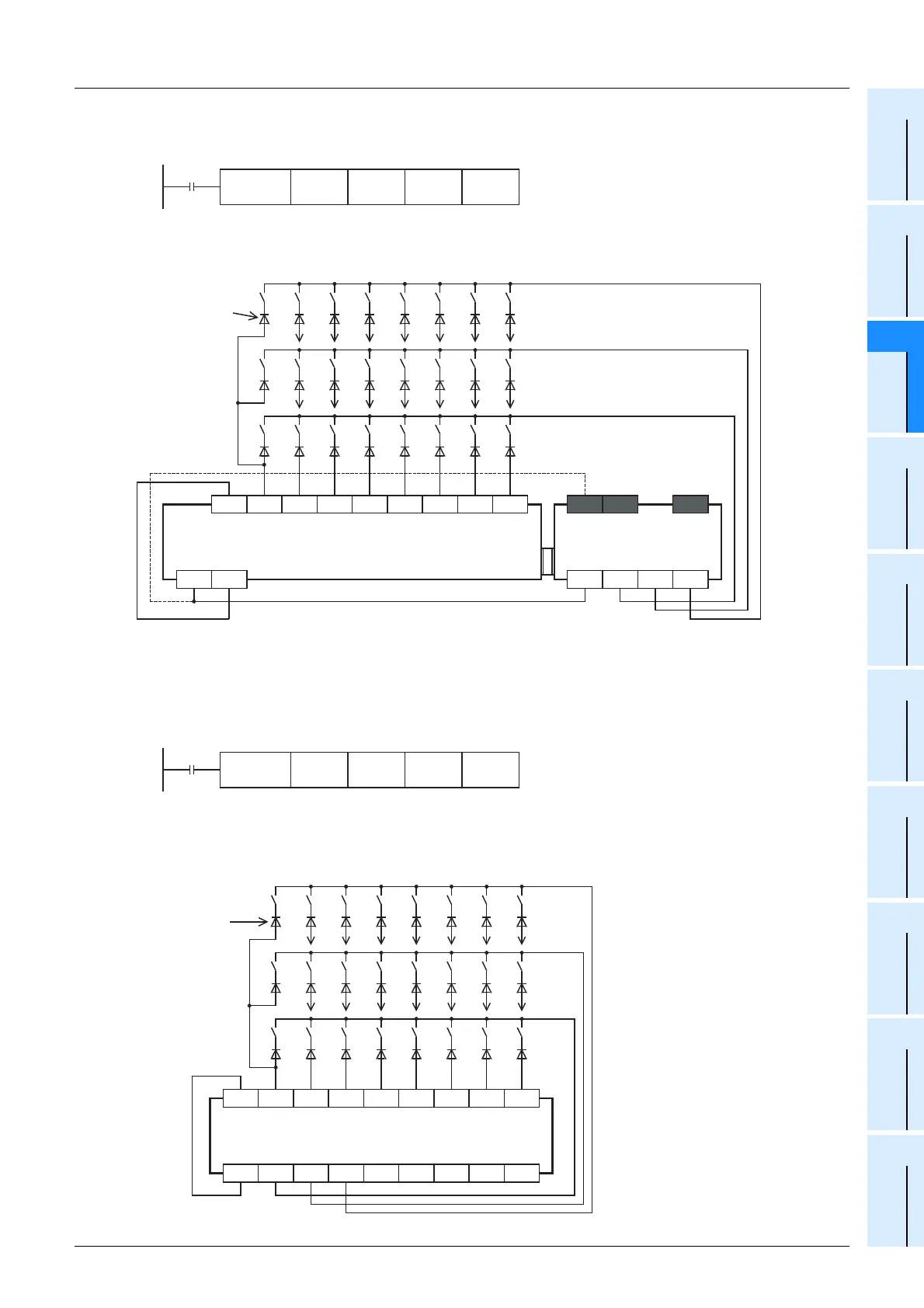

2. Main unit + input/output powered extension unit/block
Example of program
Example of wiring
1) In the case of sink wiring
When the main unit and a transistor output (sink) type input/output powered extension unit/block are used
3. Input/output powered extension unit
Example of program
Example of wiring
1) In the case of sink wiring
When inputs are used for sink only and outputs are the transistor sink type in the used input/output
powered extension unit
M8000
X020 Y050 M30 K3MTR
0.1A 50V
diode is
necessary.
*2
*1
Transistor output (sink)
*1 To use the input terminal (X) of the input/output powered extension unit, wire the terminal as shown by the dotted line.
*2 The terminals in the shaded areas are provided on input/output powered extension units (ex.: FX
2N -32ET).
Output extension blocks do not have the terminals.
X020 X021 X022 X023
24V0V
S/S
Main unit
Y050 Y051 Y052
24+COM
COM1
XX024 X025 X026 X027
M30 M31 M32 M33 M34 M35 M36 M37
M40 M41 M42 M43 M44 M45 M46 M47
M50 M51 M52 M53 M54 M55 M56 M57
X021 X022 X023 X024 X025 X026 X027
X021 X022 X023 X024 X025 X026 X027
Input/output powered
extension unit/block
M8000
X060 Y050 M30 K3MTR
Transistor output (sink)
FX2N-32ET
FX2N-48ET
Input/output powered extension unit
0.1A 50V
diode is
necessary.
COM X060
COM1
X061 X062 X063 X064 X065 X066 X067
Y050 Y051 Y052 Y053 Y054 Y055 Y056 Y057
M30 M31 M32 M33 M34 M35 M36 M37
M40 M41 M42 M43 M44 M45 M46 M47
M50 M51 M52 M53 M54 M55 M56 M57
X061 X062 X063 X064 X065 X066 X067
X061 X062 X063 X064 X065 X066 X067

Mitsubishi FX3G Series Specifications

General

Model	FX3G Series
Power Supply	AC 100-240V or DC 24V
Program Capacity	32, 000 steps
Execution Speed	0.21 µs/basic instruction
Communication Options	RS-422, USB, Ethernet
Expansion Modules	Analog, digital, communication
Programming Language	Ladder Logic, Instruction List
Built-in Functions	High-speed counters, pulse output
Analog I/O	Available via expansion modules
