Mitsubishi FX3G Series User Manual

15 Input/Output Powered Extension Units
15.5 FX2N-32ER, FX2N-48ER
201
FX3G Series Programmable Controllers
User's Manual - Hardware Edition
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
Input/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

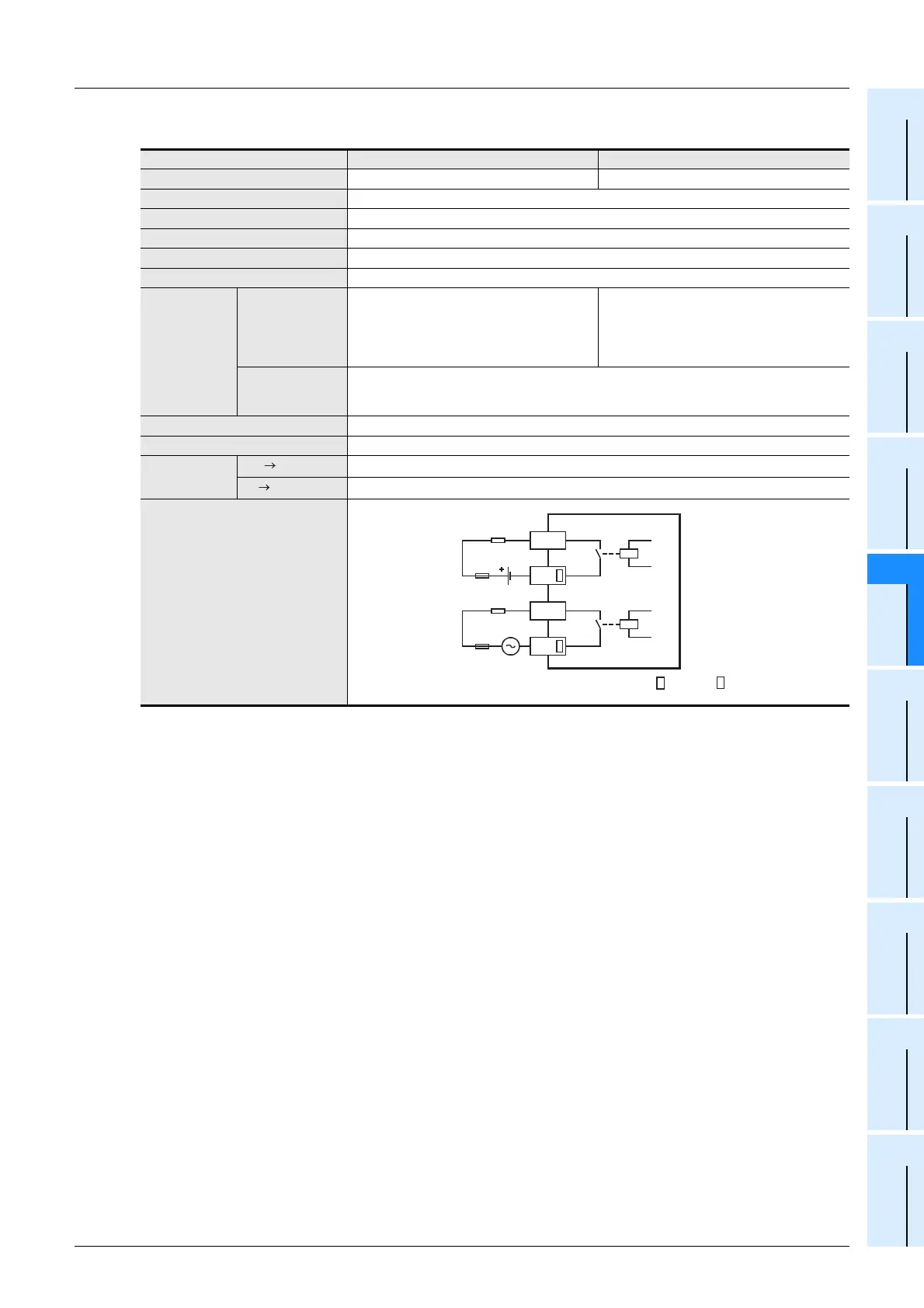

3. Output specifications (relay output type)
Item FX2N-32ER FX2N-48ER
Output Points 16 points 24 points
Connection type Removable terminal block (M3 screw)
Output unit Relay
External power supply 250V AC/30V DC or less
Output circuit insulation Mechanical insulation
Indication of output operation When power is applied to relay coil, LED is lit.
Max. load
Resistance load
2A/point
The total load current per common terminal
should be the following value.
• 8 output points/common terminal: 8A or less
2A/point
The total load current per common terminal
should be the following value.
• 4 output points/common terminal: 8A or less
• 8 output points/common terminal: 8A or less
Inductive load
80VA
→ For the product life, refer to Subsection 14.4.3.
→ For cautions on external wiring, refer to Subsection 12.1.3.
Open circuit leakage current -
Min. load 5V DC, 2mA (reference value)
Response time
OFF ON
Approx. 10ms
ON OFF
Approx. 10ms
Output circuit configuration
External
power supply
Load
Fuse
Y
COM
DC power
supply
Fuse
Y
COM
A common number applies to the of [COM ].

Mitsubishi FX3G Series Specifications

General

Model	FX3G Series
Power Supply	AC 100-240V or DC 24V
Program Capacity	32, 000 steps
Execution Speed	0.21 µs/basic instruction
Communication Options	RS-422, USB, Ethernet
Expansion Modules	Analog, digital, communication
Programming Language	Ladder Logic, Instruction List
Built-in Functions	High-speed counters, pulse output
Analog I/O	Available via expansion modules
