15 Input/Output Powered Extension Units
15.6 FX2N-32ET, FX2N-48ET
204
FX3G Series Programmable Controllers
User's Manual - Hardware Edition

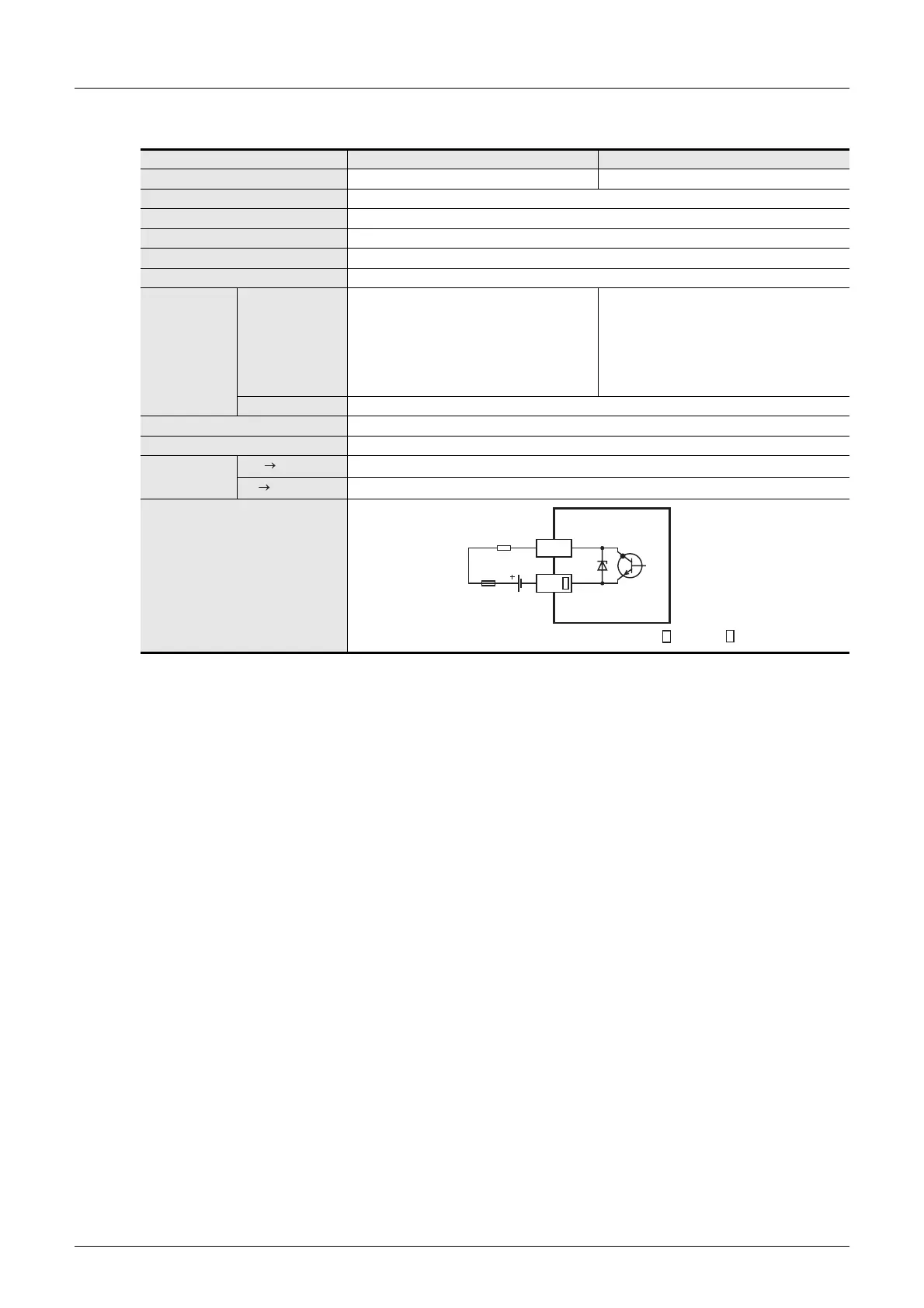

3. Output specifications (transistor output type)
Item FX2N-32ET FX2N-48ET
Output Points 16 points 24 points
Connection type Removable terminal block (M3 screw)
Output unit/type Transistor/sink output
External power supply 5 to 30V DC
Output circuit insulation Photo-coupler insulation
Indication of output operation Activation of the photo-coupler will light the LED indicator lamp on panel.
Max. load
Resistance load
0.5A/point
The total load current per common terminal
should be the following value.
• 8 output points/common terminal: 1.6A or
less
0.5A/point
The total load current per common terminal
should be the following value.
• 4 output points/common terminal: 0.8A or
less
• 8 output points/common terminal: 1.6A or
less
Inductive load 12W/24V DC
Open circuit leakage current 0.1mA/30V DC
Min. load -
Response time
OFF ON
0.2ms or less/200mA (at 24V DC)
ON OFF
0.2ms or less/200mA (at 24V DC)
Output circuit configuration
Load
Fuse
DC power
supply
Y
COM
A common number applies to the of [COM ].
