16.11 FX2N-8EYT, FX2N-16EYT, FX2N-16EYT-C (Transistor Output)
243
FX3G Series Programmable Controllers
User's Manual - Hardware Edition
11
High-Speed Counters
12
Output Wiring
13
Wiring for Various Uses
14
Test Run, Maintenance, Troubleshooting
15
Input/Output Powered Extension Units
16
Input/Output Extension Blocks
17
Extension Power Supply Unit
18
Other Extension Units and Options
19
Display Module
20
Terminal Block

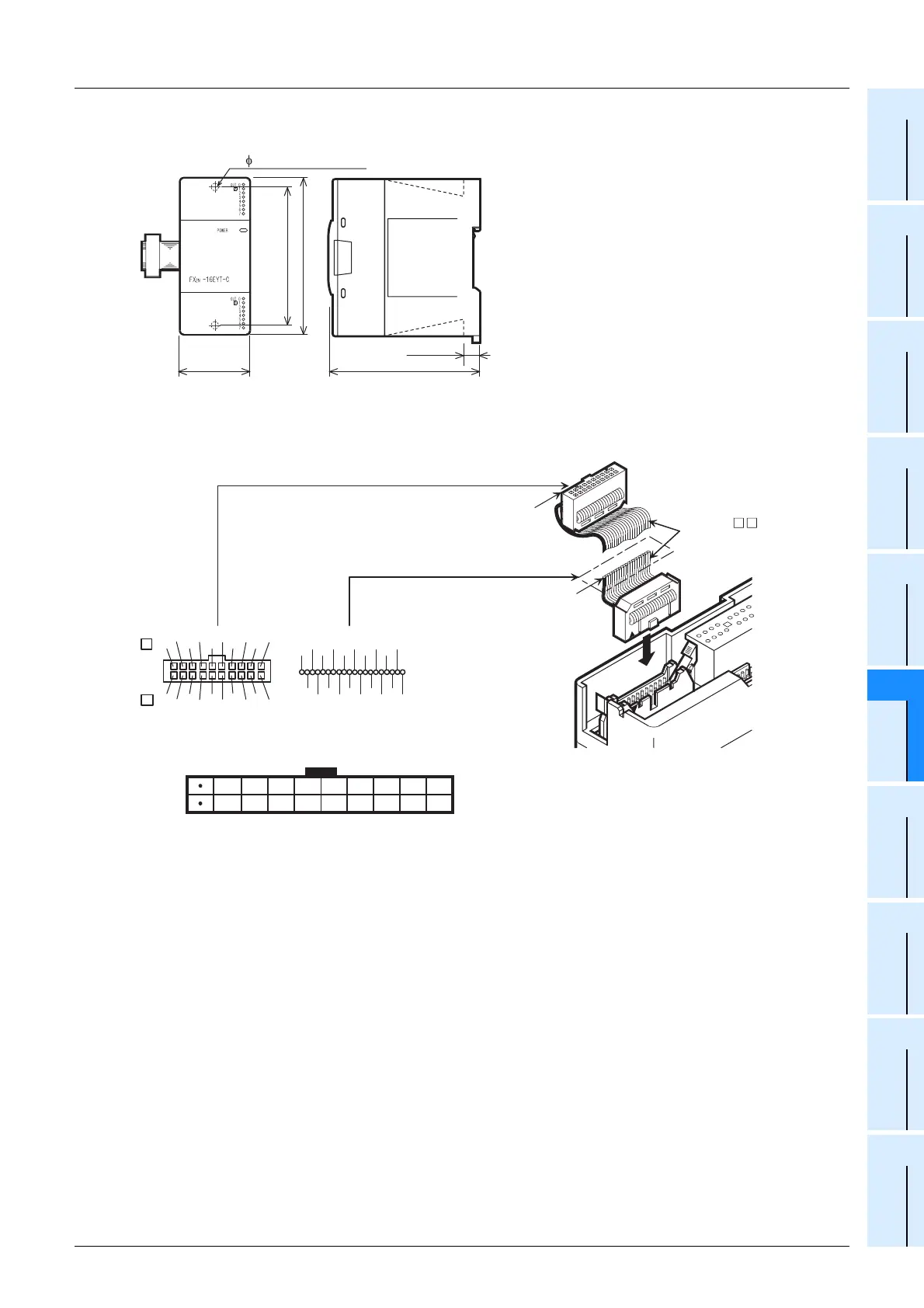

FX2N-16EYT-C
How to connect connector (FX
2N-16EYT-C)
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
9(0.36")
40(1.58")
2- 4.5 mounting holes
20
20
The polarity is shown in the following table.
Connection face of connector
Cross section of 20-core flat cable
(Socket)
FX-16E-
CAB type cable
(Be sure to check the wire number.)
B
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Y7 Y5Y6 Y4 Y3 Y2 Y1 Y0
Y7 Y5Y6 Y4 Y3 Y2 Y1 Y0
Side A
Side B
Side B is for the higher input numbers,
and side A is for the lower input numbers.
(Exe.) Side B X050 to X057
Side A X040 to X047
COM
COM
