V5A51 -
Countershaft Gear
23E-18-2
ASSEMBLY SERVICE POINTS
"
A
A

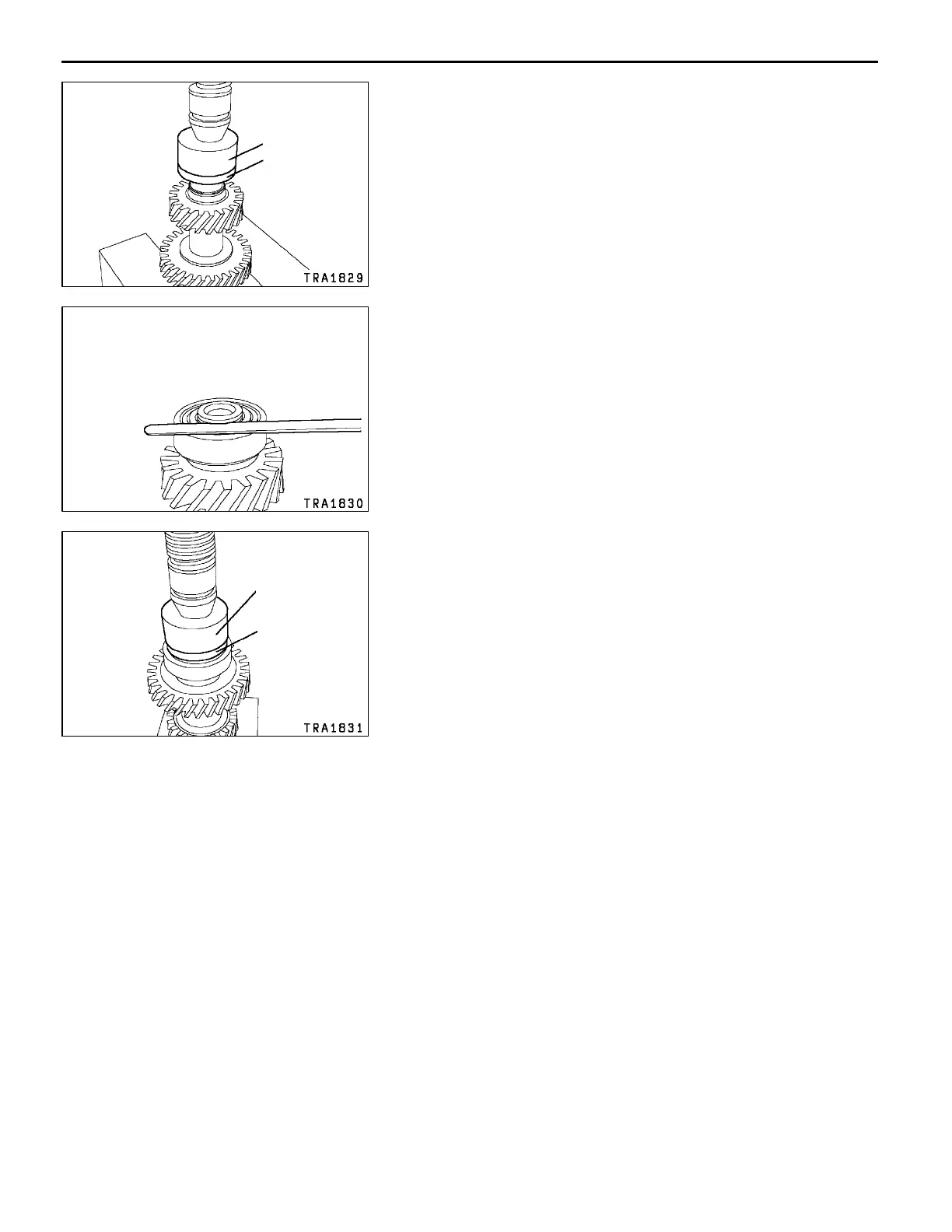

INNER RACE / ROLLER BEARING / SPACER
INSTALLATION
1. Using th e special tool, install the inner race.
2. Install t he roller bearing and spacer.
"
B
A
SNAP RING INSTALLATION
Install the thickest snap ring that can be fitted in the snap
ring groove of th e countershaft gear.
Make sure that the roller bearing e nd play meets the standard
value.
Standard value: 0 - 0.08 mm
"
C
A
BALL BEARING INSTALLATION
Use the special tools to install the ball bearing.
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
MD998812
MD998818
MD998812
MD998818
