V5A51 -
Valve Body
23E-11-4
DISASSEMBLY SERVICE POINT
A
A
"
SOLENOID VALVE REMOVAL
Before removing the solenoid valves, make marks with white
paint, etc., so that these valves can be reinstalled in the
original positions.
ASSEMBLY SERVICE POINTS
"
A
A
SOLENOID VALVE INSTALLATION
1. Apply ATF, petrolatum jelly or Vaseline to O-rings, and
install them to solenoid valves.
2. Following the marks made during removal, install each
solenoid valve.
"
B
A

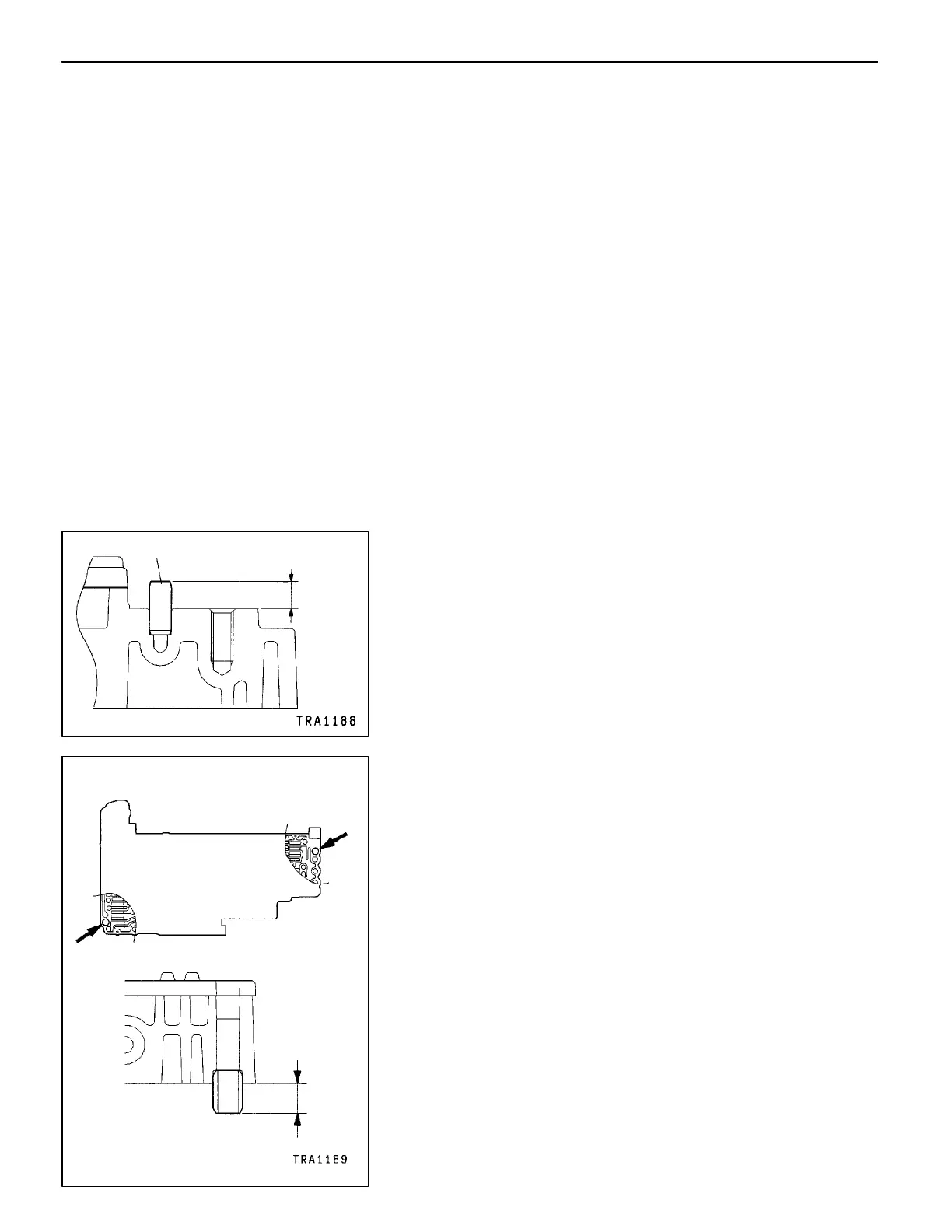

DOWEL PIN INSTALLATION
Install the dowel pin at the specified position on the lower
valve body.
"
C
A
KNOCK BUSHING INSTALLATION
Install the knock bushing onto the lower valve body position
shown in the illustration.
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
6mm
Dowel pin
9mm
