V5A51 -
Valve Body
23E-11-1

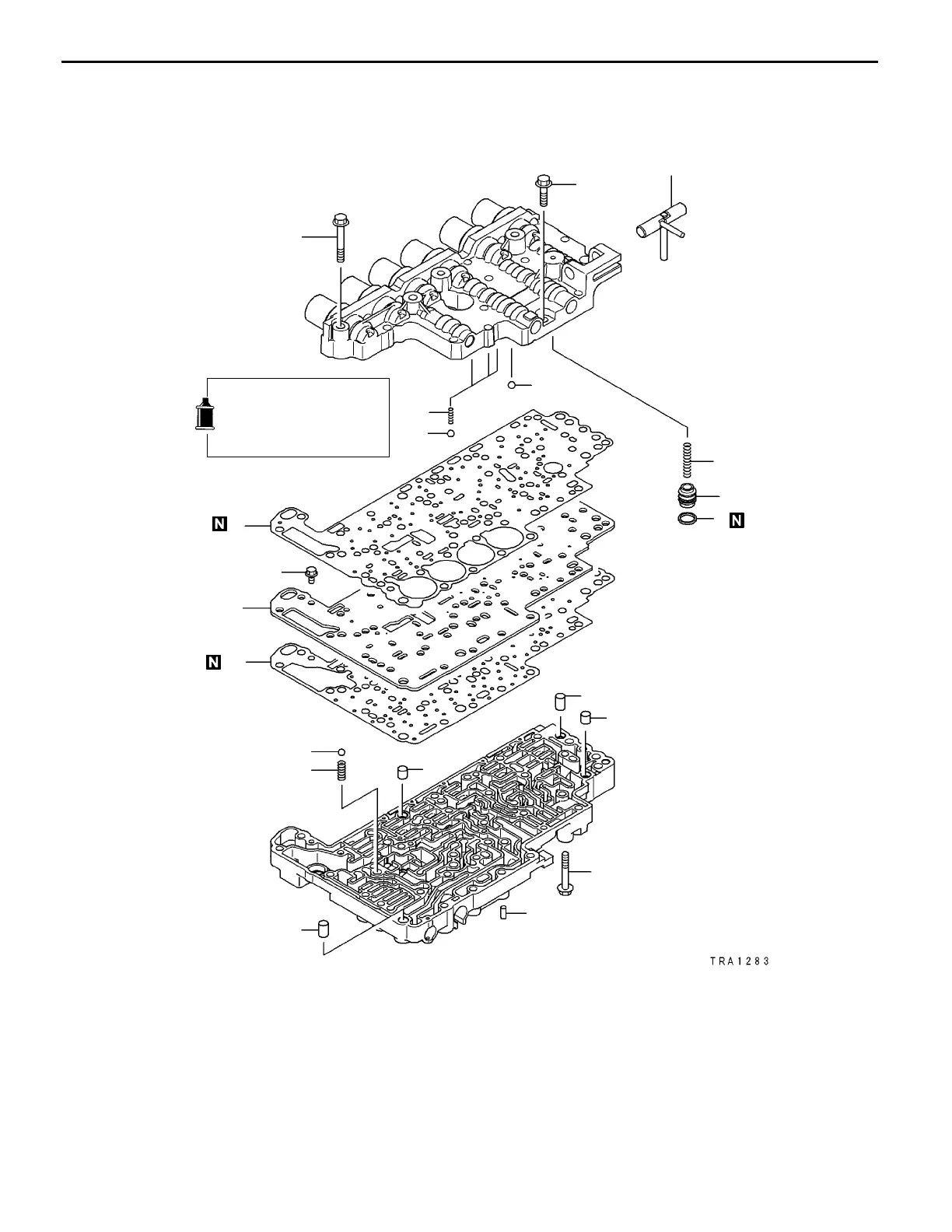

11. VALVE BODY
DISASSEMBLY AND ASSEMBLY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
11
±
1Nm
14
13
11
±
1Nm
6
±
1Nm
11
±
1Nm
Apply automatic
transmission fluid to
all moving parts
before installation.
Disassembly steps
"
G
A 1. Manual valve pin
"
F
A 2. Damping valve
"
F
A 3. Seal ring
"
F
A 4. Damping valve spring
"
F
A 5. Ball (orifice check ball)
"
F
A 6. Steel ball (orifice check ball)
"
F
A 7. Spring
8. Upper valve body gasket
9. Separating plate
10. Lower valve body gasket
"
E
A 11. Steel ball (line relief)
"
E
A 12. Spring
"
D
A 13. Knock bushing
"
C
A 14. Knock bushing
"
B
A 15. Dowel pin
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
