Front Output Shaft
23E-20-1

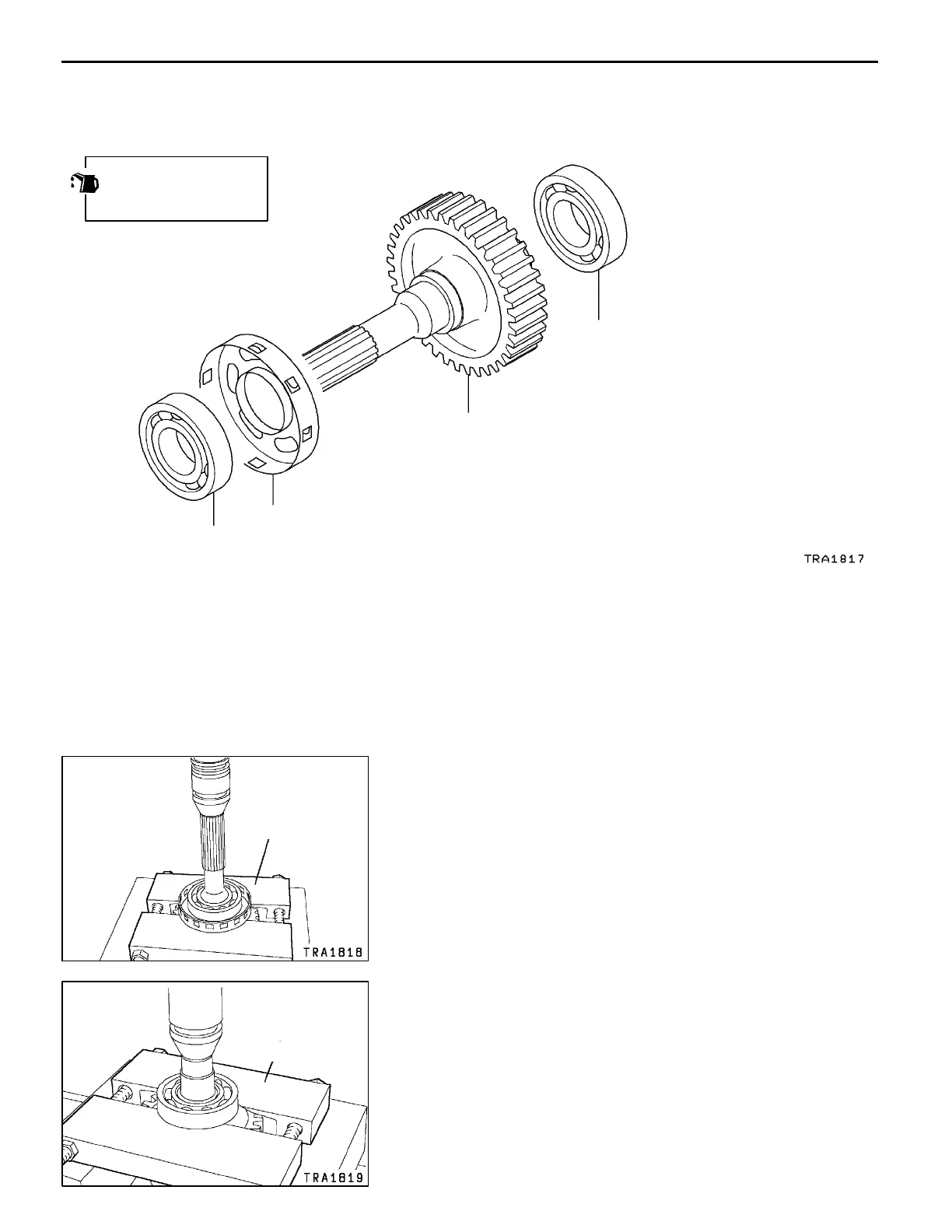

20. FRONT OUTPUT SHAFT
DISASSEMBLY AND ASSEMBLY
1
2
3
4
Apply gear oil to all
moving parts before
installation.
Disassembly steps
A
A
""
B
A 1. Ball bearing
2. Sensor rotor
A
B
""
A
A 3. Ball bearing
4. Front output shaft
DISASSEMBLY SERVICE POINT
A
A
"
BALL BEARING REMOVAL
1. Use the special tool to support the ball bearing.
2. Press the front output shaft with a press and remove
the ball bearings.
A
B
"
BALL BEARING REMOVAL
1. Use the special tool to support the ball bearing.
2. Press the front output shaft with a press and remove
the ball bearings.
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
MD998801
MD998801
